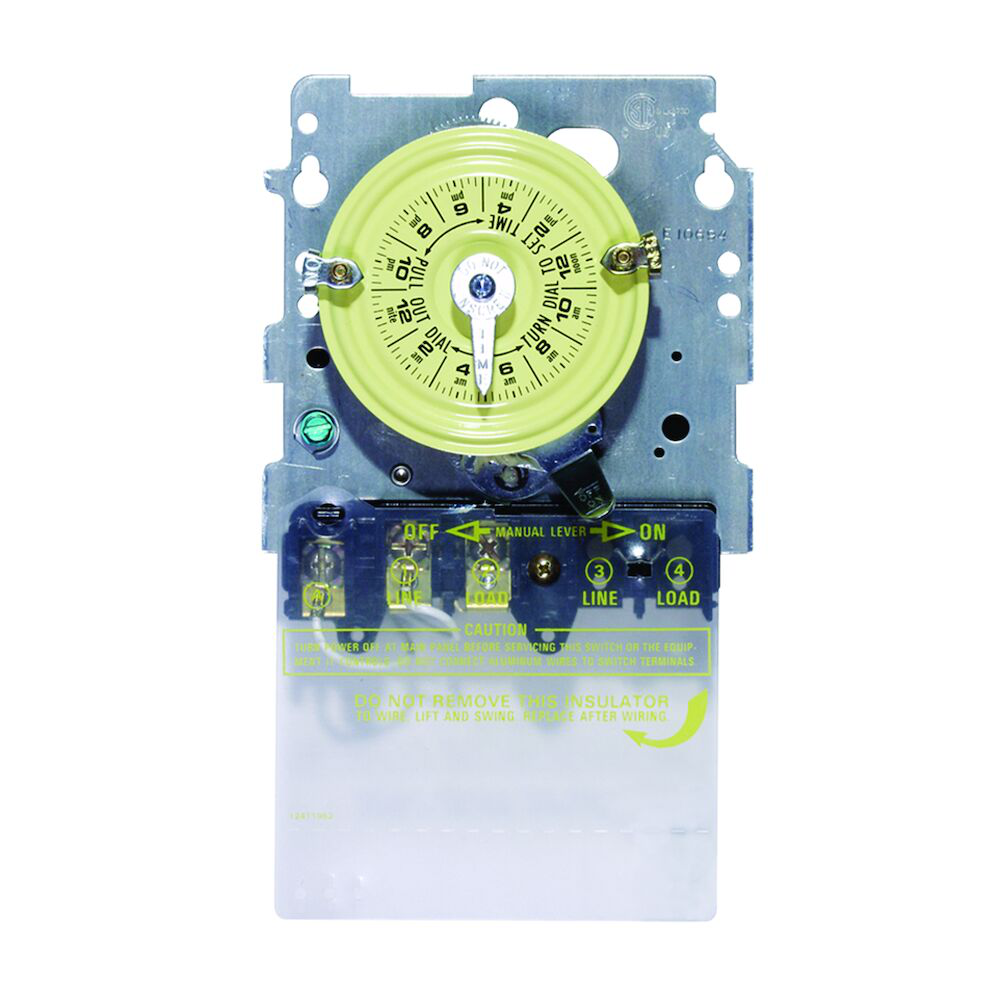

Intermatic T106M Electromechanical Time Switch 208-277VAC 40Amp

Product Description

The Intermatic T106M Electromechanical Time Switch is designed for controlling electrical loads in commercial, industrial, and residential settings. With its capacity of up to 40 amps per pole and 12 ON/OFF operations per day, it offers reliable control for indoor and outdoor lighting, pool heaters, electric fences, and more.

• Handles up to 40 amps per pole
• Provides 12 ON/OFF operations per day
• Manual override switch included

Product Highlights

Ideal for indoor and outdoor lighting, pool heaters, filters, and other electrical loads.

Product Information

Standard Information

• Brand: Intermatic
• Model: T106M
• Voltage: 208-277 VAC
• Frequency: 60 Hz
• Contact Rating: 40 Amp at 120-480 VAC (Resistive), 40 Amp at 120/240/277 VAC (Inductive Tungsten)

Technical Specifications

• Switch Type: SPDT
• Contact Configuration: 1 NO/1 NC
• Operating Temperature: -40 to 130 degrees F
• Mounting Type: Wall Mount
• Dimensions: 5-1/2 inches L x 3-5/8 inches W x 9-3/8 inches H
• Country of Origin: Mexico
• Warranty: 1 year
