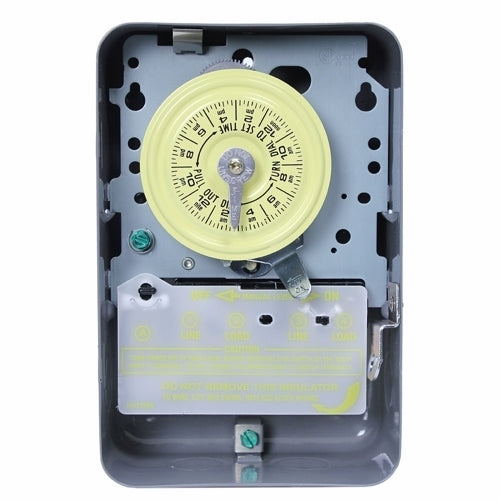

Intermatic T105 T100 Series Mechanical Timer Switch 24 Hour 120 Volt AC

Product Description

Intermatic T105 Mechanical Timer Switch is designed for reliable performance with a 24-hour control feature. This electro-mechanical timer operates on 125 VAC and can handle loads up to 40 Amps. It features a single pole with SPDT contact form and includes one ON and one OFF tripper. The timer is suitable for various applications in commercial, industrial, and residential settings.

• Direct 24-hour control of most electrical loads.
• Up to twelve ON/OFF operations daily with minimum ON/OFF time of one hour.
• Manual override functionality.

Product Highlights

This durable timer is perfect for controlling indoor and outdoor lighting, fans, pumps, and electrical signs.

Product Information

Standard Information

• Manufacturer: Intermatic
• MPN: T105

Technical Specifications

• Amperage Rating: 40 A
• Voltage Rating: 125 VAC
• Enclosure Type: NEMA 1
• Dimensions: 5 inches L x 3 inches W x 7.75 inches H
• Temperature Rating: -40 to 130 degrees F
• Horsepower: 5 hp
• Mounting Type: Wall
• Contact Configuration: 1NO-1NC, SPDT
• Standards/Approvals: cCSAus Certified
