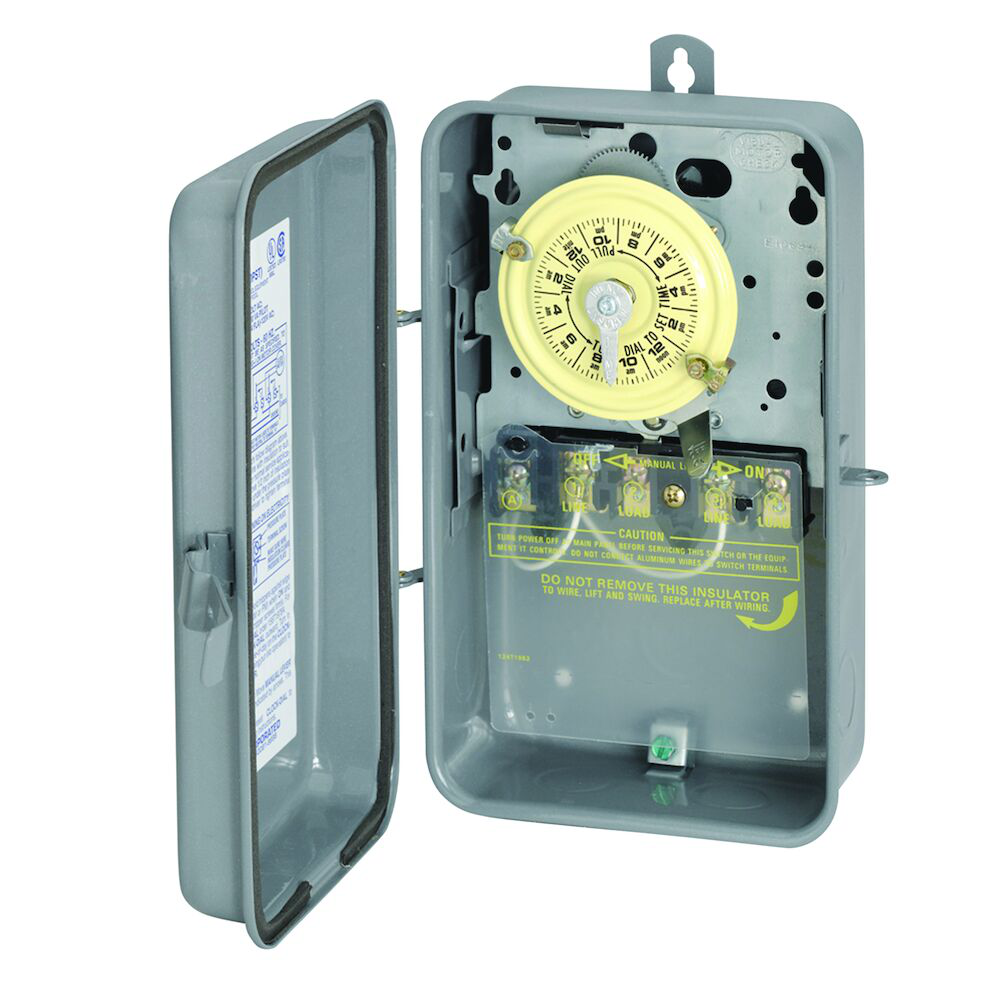

Intermatic T104R 24-Hour Mechanical Time Switch 208-277V DPST

Product Description

The Intermatic T104R is a 24-hour mechanical time switch capable of controlling electrical loads up to forty amps at a voltage range of two hundred to two hundred seventy-seven volts. This device features a double-pole single-throw configuration, making it suitable for a variety of industrial, commercial, and residential applications. The timer allows for multiple on and off operations throughout the day, with a manual override option for added convenience.

• High horsepower rating for reliable load management
• Equipped with one ON and one OFF tripper
• NEMA 3R enclosure ensures durability in outdoor environments

Product Highlights

This time switch provides direct control of most loads through its electromechanical design. It is ideal for timing and scheduling purposes in both indoor and outdoor settings.

Product Information

Standard Information

• Brand: Intermatic
• MPN: T104R

Technical Specifications

• Type: Electromechanical
• Voltage Rating: 208 - 277 V
• Amperage Rating: 40 A
• Frequency: 60 Hz
• Operating Temperature: -40 to +130 degrees F
• Enclosure Type: NEMA 3R Steel
• Dimensions: 5.5 inches (length) x 4 inches (width) x 9.375 inches (height)
• Contact Configuration: 2 NO
• Contact Rating: 40 A @ 120 - 480 VAC (resistive), 40 A @ 120 - 277 (tungsten)
