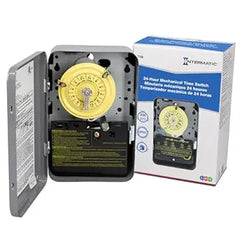

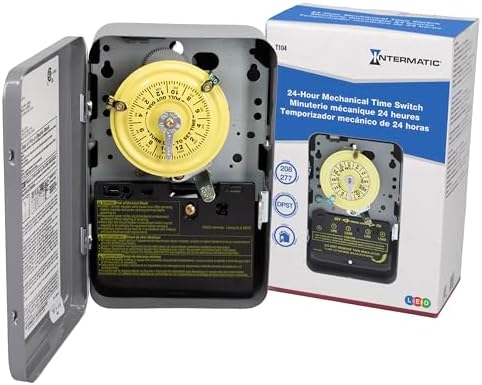

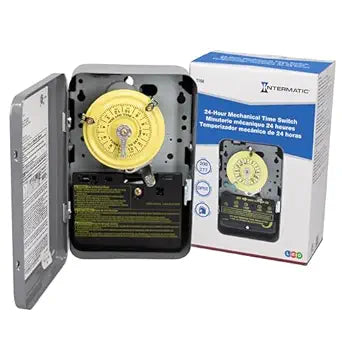

Intermatic T104 INDOO 24-hour mechanical timer switch 208–277 VAC DPST

Product Description

The Intermatic T104 INDOO 24-Hour Mechanical Timer Switch is a robust solution for controlling electrical loads in industrial, commercial, and residential settings. Designed for indoor use, this heavy-duty timer operates on 208–277 VAC circuits and features a Double Pole, Single Throw (DPST) configuration, managing both legs of the circuit. It supports loads up to 40 Amps and motors up to 5 HP at 240V, making it suitable for lights, pumps, fans, and HVAC systems. It offers direct 24-hour control with up to 12 daily On/Off operations.

• Controls both legs of a 208–277V circuit for comprehensive power management.
• Supports heavy-duty loads up to 40 Amps and motors up to 5 HP at 240V.
• Provides direct 24-hour control with up to 12 daily On/Off operations and a manual override.

Product Highlights

The Intermatic T104 INDOO is a heavy-duty 24-hour mechanical timer switch, ideal for high-voltage applications like lights, pumps, fans, and HVAC systems, featuring DPST control and a 40 Amp capacity.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: T104 INDOO

Technical Specifications

• Brand: Intermatic
• Material: Metal
• Number of Settings: 12
• Smart Home Compatibility: Not Smart Home Compatible
• Manufacturer: Intermatic
• Manufacturer Part Number: GID-601542
• Model Number: T104
• Unit Count: 1.0
• Item Type: Electromechanical Timer, 208 - 277 V, 40 A, 1 - 23 Hr, 1 - 12 Cycles Per Day
• Enclosure Type: Indoor Type 1 Metal Enclosure
• Certifications: cULus Certified, cCSAus Certified, LED Certified
• Input Voltage: 208-277 VAC
• Current Rating: 40 Amp
• Switch Type: DPST
• Horsepower Rating: 5 HP at 240V
