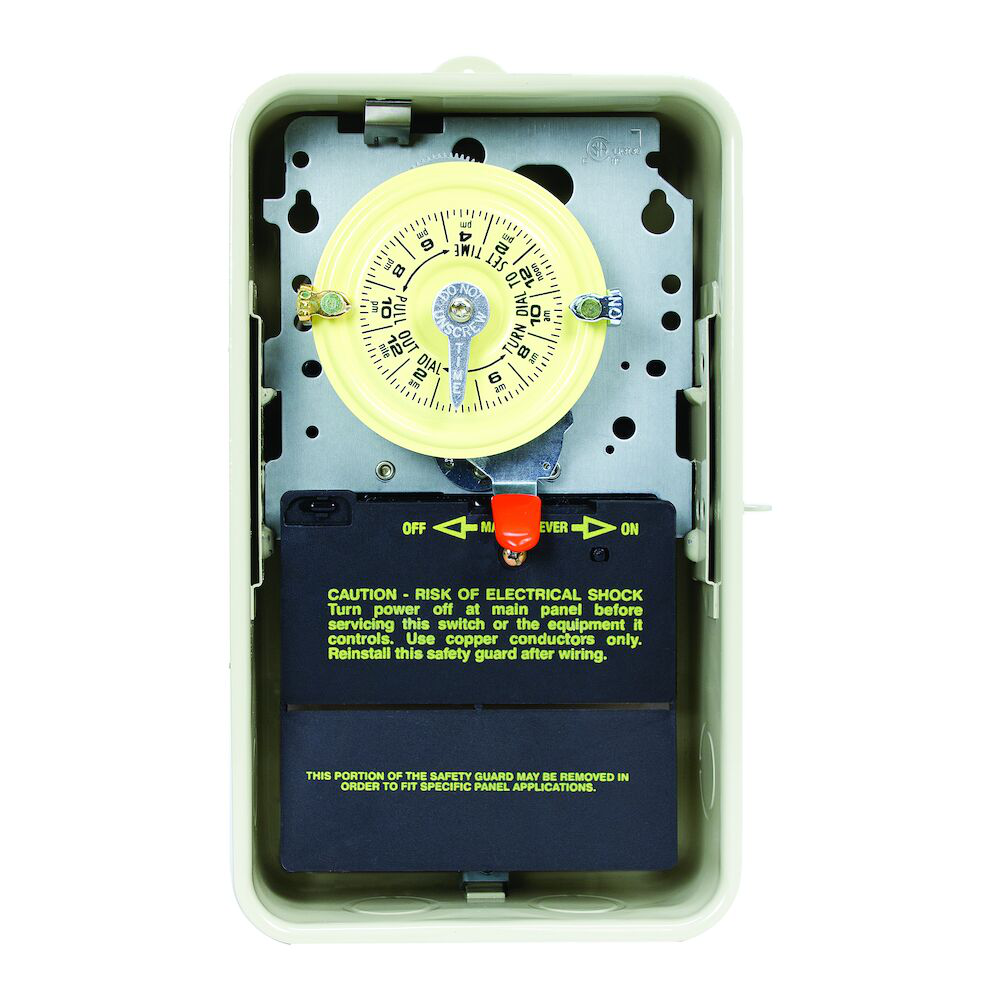

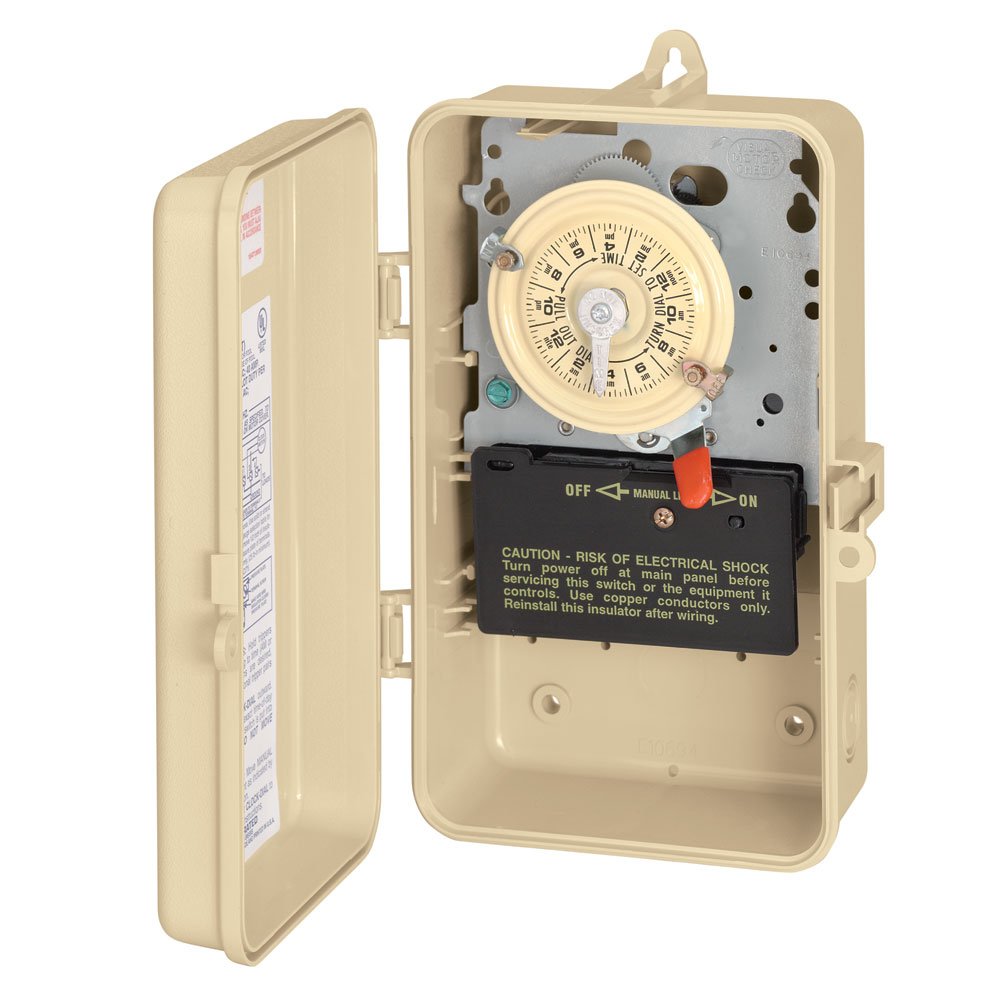

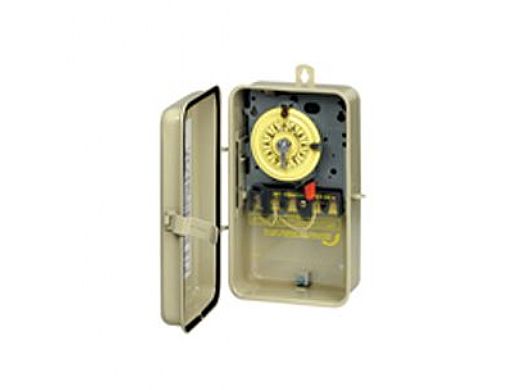

Intermatic T101R3 Timer Switch in Metal Enclosure Beige

Product Description

The Intermatic T101R3 Timer Switch in metal enclosure is designed for heavy-duty usage and controls a single load. Manufactured by Intermatic, it is ideal for various applications including pump control, lighting, and heaters. It provides reliable and efficient operation, suitable for residential, commercial, and industrial environments.

• Mechanical time switch with highest motor load ratings
• Includes one ON and one OFF tripper
• Available with pool heater protection

Product Highlights

Intermatic's T101R3 Timer Switch, housed in a steel and beige enclosure, is a mechanical time switch that controls a single load. It features teeter-type terminals for multiple load connections, supporting up to 12 ON/OFF operations per day.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc
• Model: T101R3

Technical Specifications

• Type: Mechanical
• Depth: 3-5/8 inches
• Width: 6.5 inches
• Height: 10-1/8 inches
• Voltage: 120 Volts
• Enclosure: NEMA 3R Steel
• Frequency: 60 Hz
• Switch Type: SPST
• Contact Rating: 40 AMP @ 120 - 480 VAC (Resistive), 40 AMP @ 120 - 277 VAC (Tungsten, Inductive)
• Number of Poles: 1 Pole
• Country of Origin: Mexico
• Power Consumption: 3 W
• Number of Circuits: 1
• Contact Configuration: 1 NO
• Operating Temperature: -40 to 130 degrees F
