Intermatic PF1222TB1 Freeze Protection 120/240 VAC (20-3/4 X 12-3/4 X 4-1/4) Replacement MPN

Product Description

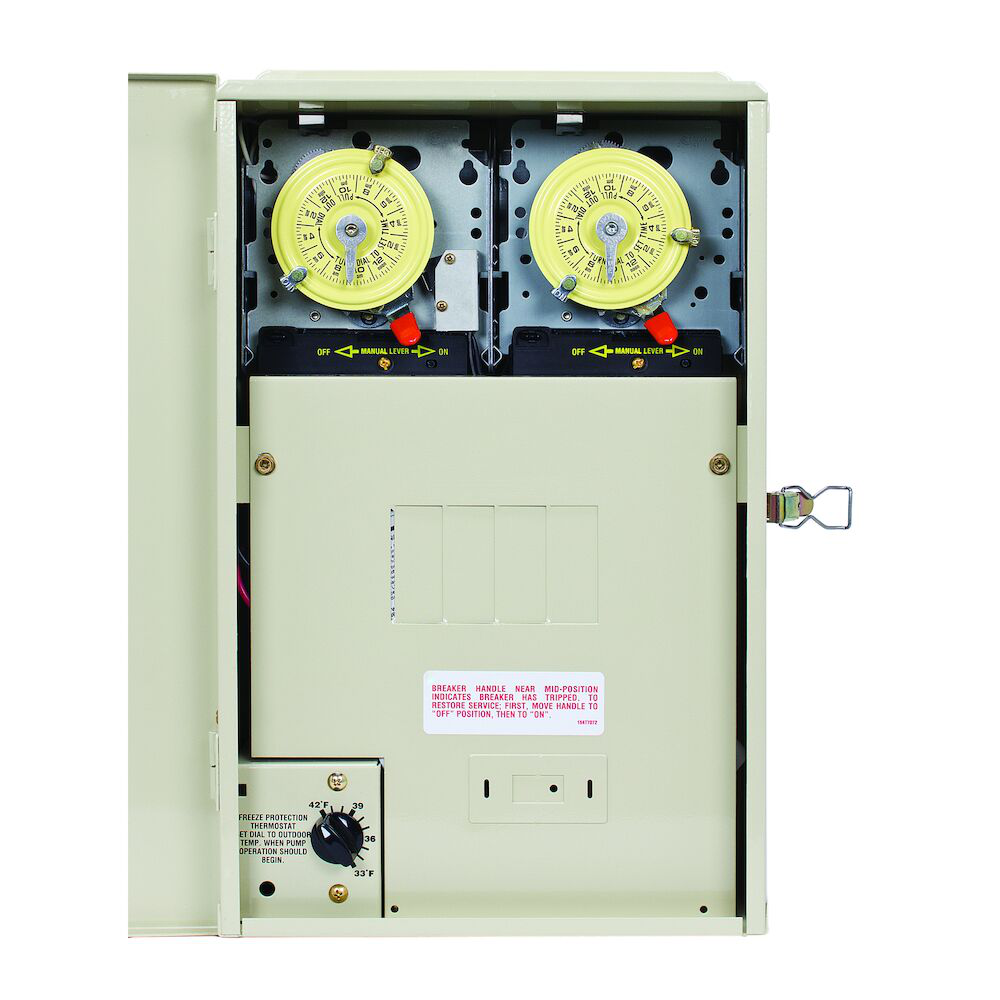

The Intermatic PF1222TB1 is a control system for freeze protection and load centers, designed to keep pool and spa equipment safe from freeze damage. With two time switches, the PF1222TB1 automatically turns on the pump and heater when the outdoor temperature falls below a set level. This feature is crucial for those managing pools or spas in colder climates.

• Includes two time switches for effective control.
• Operates at 120/240 VAC and manages up to 85 amps.
• Constructed with durable Type 3R steel for both indoor and outdoor use.

Product Highlights

This system effectively protects pool and spa equipment through smart temperature monitoring and control.

Product Information

Standard Information

• Catalog Number: PF1222TB1
• Manufacturer: Intermatic

Technical Specifications

• Voltage: 120/240 VAC
• Width: 12-3/4 inches
• Height: 20-3/4 inches
• Depth: 4-1/4 inches
• Amperage Rating: 85 amps
• Frequency: 60 Hz
• Power Rating: 3 hp
• Material: Steel
• Country of Origin: Mexico
• Application: Pool/Spa Control
• Warranty Length: 1 year
