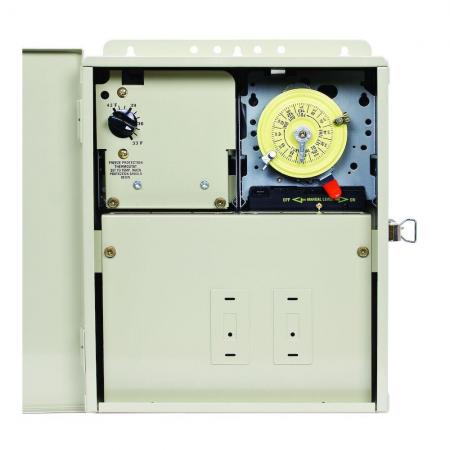

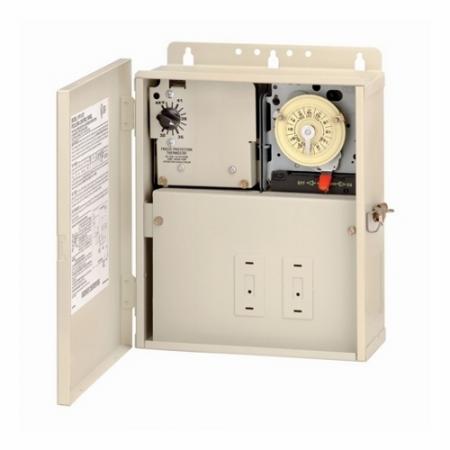

Intermatic PF1112T Freeze Protection Control Center with Timer and Thermostat for 240V Applications Type 3R Metal Enclosure

Product Description

The Intermatic PF1112T Freeze Protection Control Center is designed to protect pool and spa equipment from freeze damage. It activates the pump and heater when the outdoor temperature falls below the user-adjustable setpoint on the thermostat.

• Protects pool and spa equipment against freeze damage

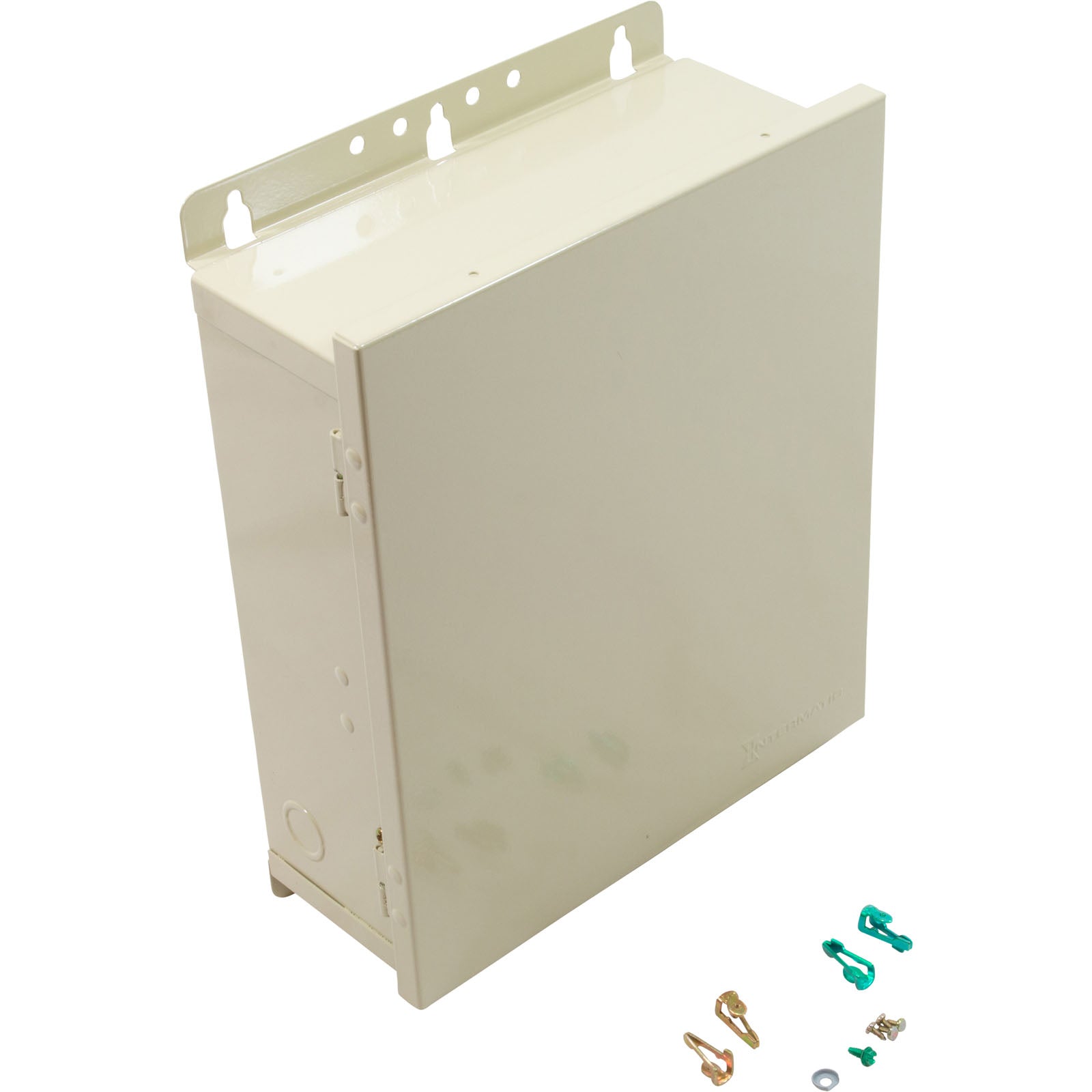

• Heavy-duty Type 3R metal indoor/outdoor enclosure
• User-adjustable thermostat for temperature control

Product Highlights

The Intermatic PF1112T is a reliable control center that combines a timer and thermostat to prevent freeze damage in pool and spa systems. It features GFCI and switch mounting capabilities and a heavy-duty metal enclosure suitable for both indoor and outdoor installations.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: PF1112T
• Action: DPST
• Contact Rating: 30 AMP @ 120/208/240 VAC (Resistive, Inductive, Tungsten)
• Voltage: 240 VAC
• Amperage: 92 (Per Leg) 168 Max AMP
• Frequency: 60 Hz
• Mounting Type: Wall Mount
• Material: Metal
• Enclosure: Type 3R Steel
• Country of Origin: Mexico
• Warranty Length: 1 yr
• Width: 12.875 inches
• Height: 12 inches
• Depth: 4.25 inches
• Operating Temperature: 42 degrees F
