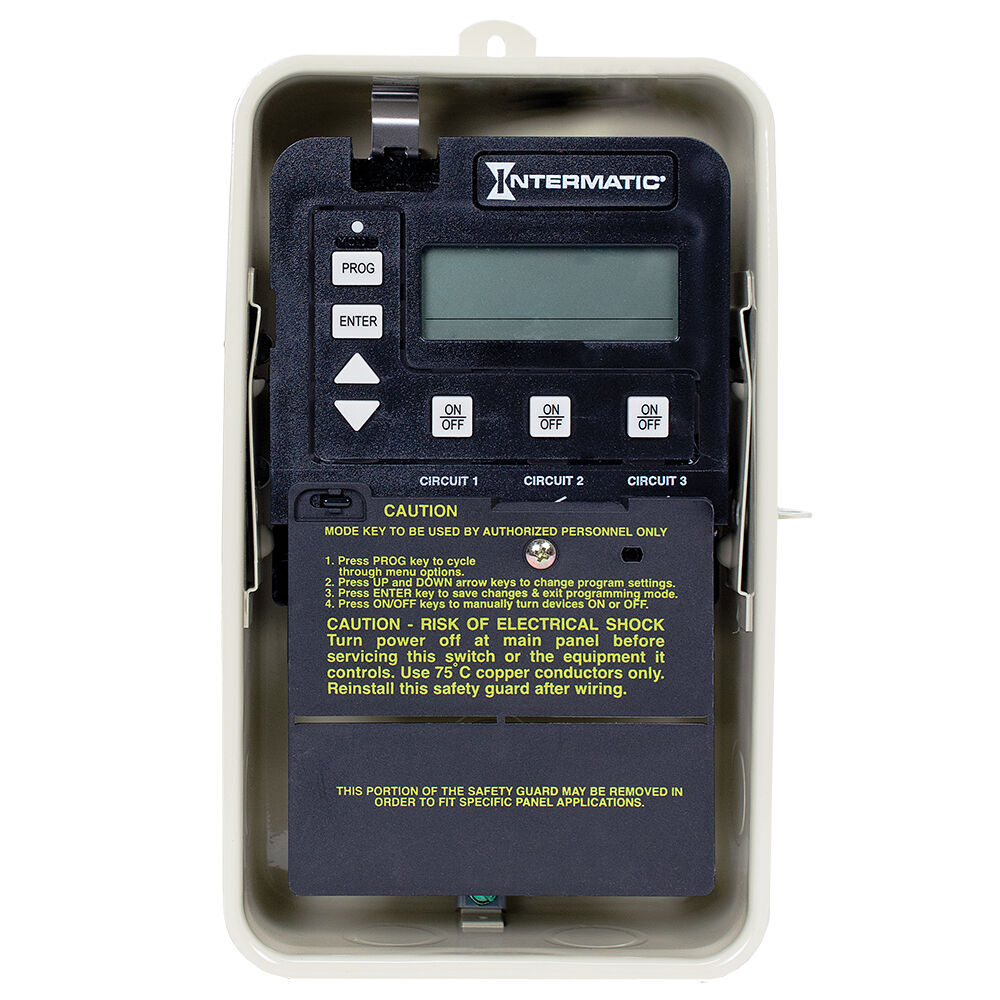

Intermatic PE153 3 CIR TMR,MTL CASE 120/240 VAC

Product Description

The Intermatic PE153 is a digital timer designed to control three circuits at either one hundred twenty or two hundred forty volts. This multipurpose 24-hour control automatically switches loads based on a preset daily schedule.

• Controls single- and two-speed pumps.
• Three ON/OFF events per circuit per day.
• Freeze and heater protection included.

Product Highlights

The timer offers functionality for motors and pumps used in pool and spa applications, allowing for efficient and reliable operation.

Product Information

Standard Information

• Brand: Intermatic
• MPN: PE153

Technical Specifications

• Voltage: 120/240 VAC
• Number of Circuits: 3
• Action: SPDT
• Contact Rating: 17 AMP @ 120/240 VAC (Resistive), 5 AMP @ 120/240 VAC (Tungsten)
• Mounting Type: Wall Mount
• Enclosure: Type 3R Steel
• Height: 9-3/8 inches
• Width: 5-1/2 inches
• Depth: 3-5/8 inches
• Operating Temperature: -20 to 130 degrees F
• Frequency: 50/60 Hz
• Warranty Length: 1 year
• Country of Origin: Canada
