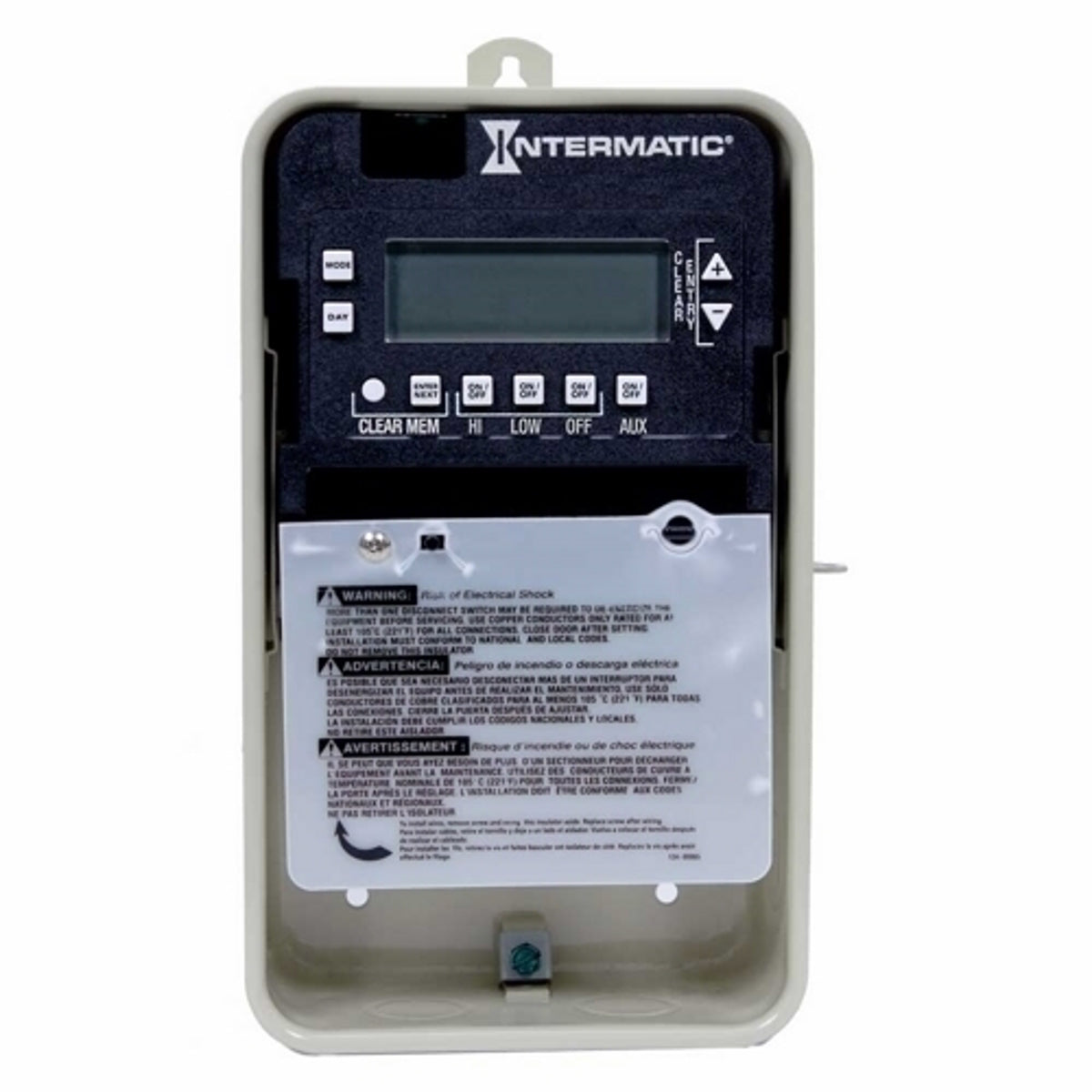

Intermatic PE103 Electronic Pump Motor Controller with Seasonal Adjustment | Type 3R Metal Enclosure | PE103

Product Description

The Intermatic PE103 is an electronic pump motor controller designed for managing single and two-speed pumps. This unit features four circuits in a Type 3R metal enclosure. It is suitable for outdoor and pool applications, automatically adjusting pump schedules based on the seasonal changes.

• Programmable for both single and two-speed pump operations.
• Seasonal adjustment feature for efficient energy use.
• 30 amp capability with multiple circuit options.

Product Highlights

The PE103 provides significant energy savings by optimizing pump run times according to seasonal needs, making it ideal for a variety of outdoor and pool applications.

Product Information

Standard Information

• Brand: Intermatic
• MPN: PE103

Technical Specifications

• Voltage Rating: 120/240 VAC
• Amperage Rating: 30 A
• Contact Configuration: 4 x SPST
• Enclosure Type: Type 3R Steel
• Operating Temperature: -20 to +130 degrees Fahrenheit
• Timing Range: 24 hours
• Mounting Type: Wall Mount
• Country of Origin: Canada
