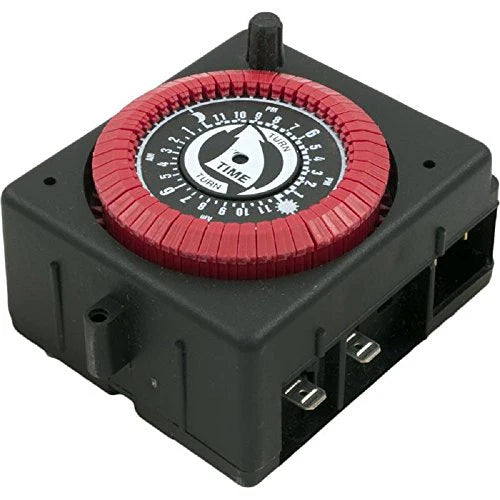

Intermatic PB914N66 The 24 Hr. Panel Mount Timer 240 VAC for PF Series Products

Product Description

The Intermatic PB914N66 is a panel mount timer designed for use in PF series products. It operates at two hundred forty volts and provides automatic control for different types of loads including pumps and cleaners. This timer supports three mounting options: it can be placed flush in a round opening, raised in a rectangular opening, or mounted on a base. Quick connect terminals enable easy installation.

• Voltage Rating: 208 to 277 VAC
• Timing Range: 24 hours
• Contact Rating: 20 AMP @ 120 - 277 VAC

Product Highlights

This timer is suitable for controlling filter pumps, booster pumps, and various heating and lighting systems. It is compliant with CSA and UL standards, ensuring reliability and safety.

Product Information

Standard Information

• Catalog Number: PB914N66
• Manufacturer: Intermatic

Technical Specifications

• Action: SPST
• Contact Configuration: 1 NO
• Mounting Type: Panel Mount
• Size: 3-1/3 inches height x 2-13/16 inches width x 1-61/64 inches depth
• Wattage: 1250 W
• Special Features: Automated control, three different mounting methods
• Country of Origin: Mexico
• Standards: CSA, UL Listed, cCSAus Certified
