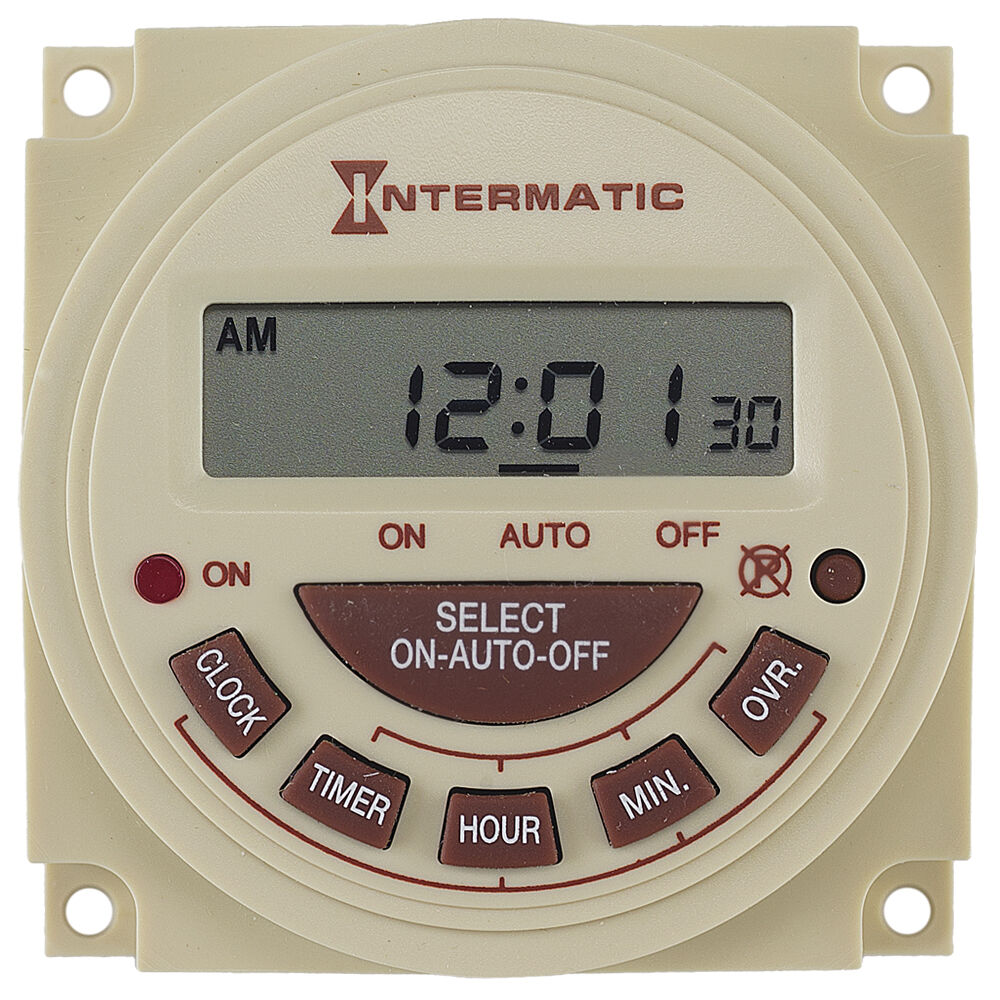

Intermatic PB314EK 24-Hour 240V Electronic Timer Kit

Product Description

Intermatic PB314EK is a 24-hour electronic timer designed for cycling equipment ON and OFF with precision. This device supports up to eight cycles per day and features a manual override for convenience. It is built to endure various conditions, ensuring reliable operation in a range of environments.

• Operates on 240V AC with a 16 Amp capacity.
• Features a replaceable lithium battery for extended use.
• Includes a light indicator that shows the timer status.

Product Highlights

This timer is perfect for controlling pumps and other equipment in residential and commercial applications.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: PB314EK
• Voltage: 240 VAC
• Amperage: 16 A
• Dimensions: 2-3/8 inches (Height) x 2-3/8 inches (Width) x 1.062 inches (Depth)
• Action: SPDT
• Mounting Type: Panel Mount
• Country of Origin: Taiwan
• Warranty Length: 1 year
• Operating Temperature Range: 0 to 100 degrees F
