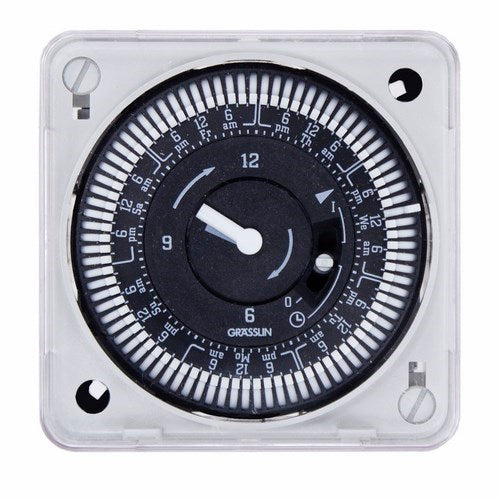

Intermatic MIL72EQWUZH-120 INTGRAS 7DAY TM MOD

Product Description

The Intermatic MIL72EQWUZH-120 is a seven-day electromechanical timer module designed for efficient control in various applications. This timer functions effectively at 120 volts and has a wattage rating of 1350 watts, making it suitable for commercial, agricultural, and HVAC applications. It offers features such as manual override and battery backup to ensure reliable operation even during power outages.

• 7-day programmable timer.
• Battery backup available.
• 1/4 inch quick connect electrical connections.

Product Highlights

The MIL72 series time switches are designed for flush mounting inside a control panel. They are light-duty commercial timers that handle both AC and DC applications, including lighting control, pumps, and fan controls.

Product Information

Standard Information

• Manufacturer: Intermatic
• Country of Origin: Mexico

Technical Specifications

• Catalog Number: MIL72EQWUZH-120
• Voltage: 120 Volt
• Wattage: 1350 Watt
• Number of Poles: 1 Pole
• Contact Rating: 21 AMP @ 120 - 250 VAC
• Mounting Type: Flush
• Timing Range: 2 Hours - 7 Days
• Operating Temperature: -4 to +131 Degrees Fahrenheit
• Environmental Conditions: 0 - 95 RH Non-Condensing
