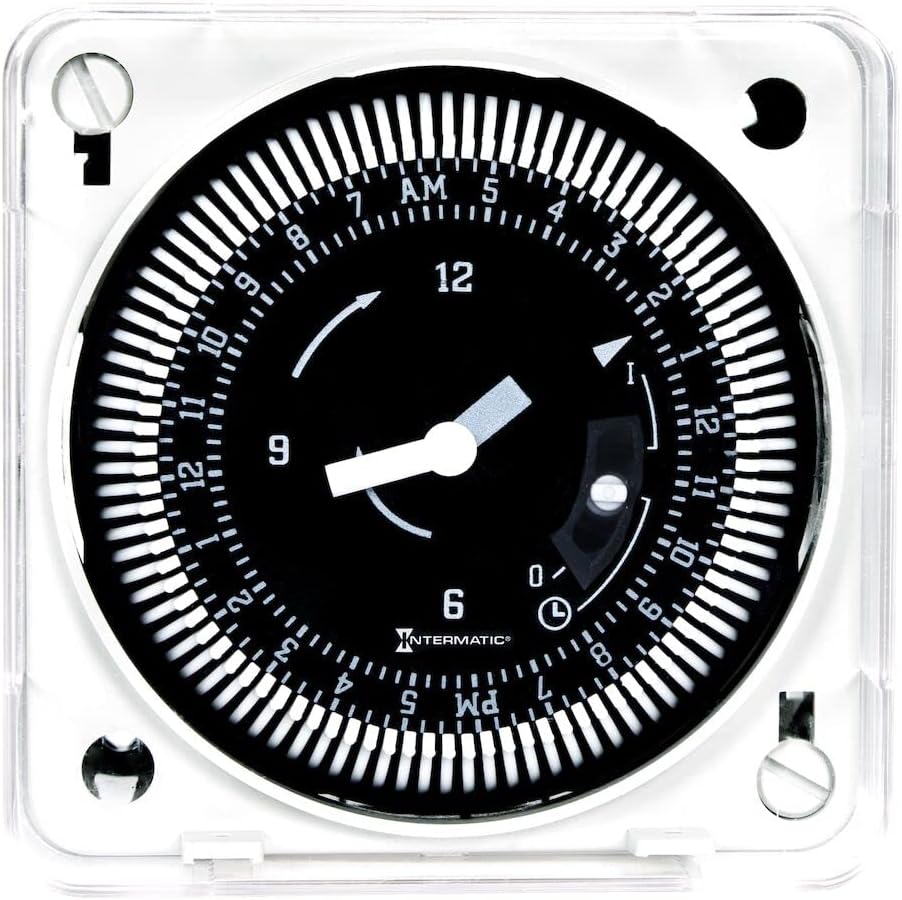

Intermatic MIL72EQTUZH-120 24-Hour 120V Flush Mount Electromechanical Time Control with Manual Override and Battery Backup

Product Description

The Intermatic MIL72EQTUZH-120 is a robust 24-hour electromechanical timer designed for flush mounting, ideal for controlling single-phase applications up to 120 volts. This device ensures continuous operation with a manual override function and a self-recharging battery backup, making it a reliable solution for industrial environments.

• Equipped with a 21 amp SPDT switch for heavy-duty applications.
• Features a clear plastic dust cover to protect against environmental factors.
• Offers a true clock face with captive trippers for easy, precise setting adjustments.

Product Highlights

This timer supports various industrial and commercial applications thanks to its versatile design which allows for both surface and DIN rail mounting. It's suited for controlling HVAC systems, lighting, pumps, and more.

Product Information

Standard Information

• Mounting Options: Flush, DIN Rail, Surface
• Battery Backup: Yes, 7-Day Carry-over

Technical Specifications

• Operating Voltage: 120 Volts
• Current Rating: 21 Amps
• Operating Mode: Manual Override Available
• Protection Rating: IP54
• Dimensions: 2.83 x 2.83 x 2.60 inches
• Weight: 4.8 ounces
