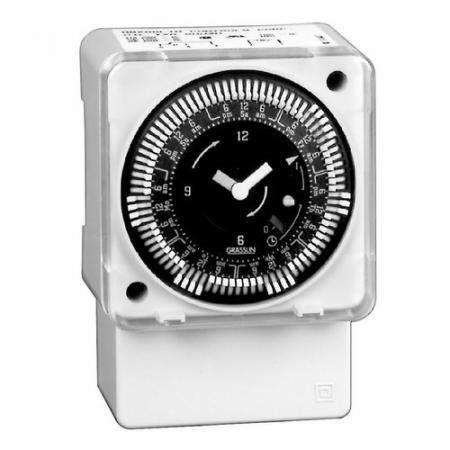

INTERMATIC MIL72ASWUZH-24 Time Switch, Clock Face, 7 Day

Product Description

INTERMATIC MIL72ASWUZH-24 is a electromechanical timer module designed for timed electrical operations. It features a synchronous drive and operates on a seven-day cycle. Ideal for various applications including lighting control, HVACR, and agricultural facilities, this timer provides reliable performance in diverse environments.

• Operates on 24 VAC/VDC
• Maximum amperage rating of 21 A
• Mounting type: DIN Rail or Surface

Product Highlights

Provides accurate automatic control for appliances and systems requiring time management, suitable for both indoor and outdoor setups.

Product Information

Standard Information

• Manufacturer: INTERMATIC
• Series: MIL72

Technical Specifications

• Operation Mode: 7 days
• Voltage Rating: 24 VAC/VDC
• Amperage Rating: 21 A
• Horsepower: 1 hp, 2 hp
• Dimensions: 2.83 in L x 2.06 in W x 4 in H
• Time Setting: 2 hr to 7 days
• Contact Form: 1NO-1NC 1SPDT
• Temperature Rating: -40 to 185 deg F
• Electrical Connections: 12 AWG Screw Terminal
• Number of Channels: 1
• Number of Poles: 1
• Display Type: Analog
• Mounting Type: DIN Rail/Surface
