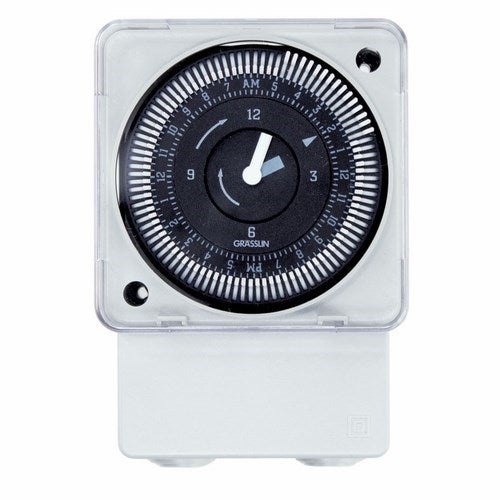

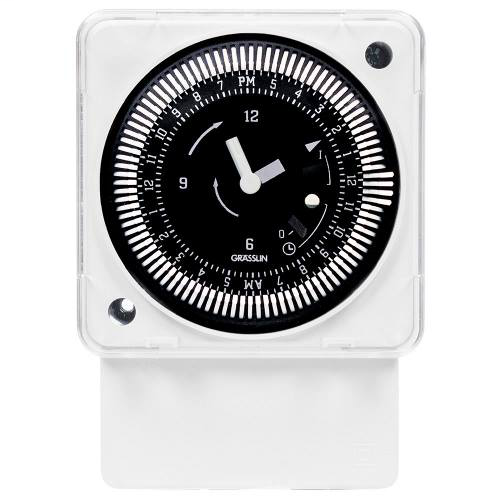

Intermatic MIL72ASTUZH-120 24HR SUR/DNRL MNT W/O BAT BU 120V MNL OR

Product Description

The Intermatic MIL72ASTUZH-120 is a time switch designed for use in control panels. This unit supports surface and DIN rail mounting. It operates on 120 volts, suitable for light duty commercial applications.

• Compatible with 12/24 VAC/VDC and 120 or 208/240 VAC single-phase applications.

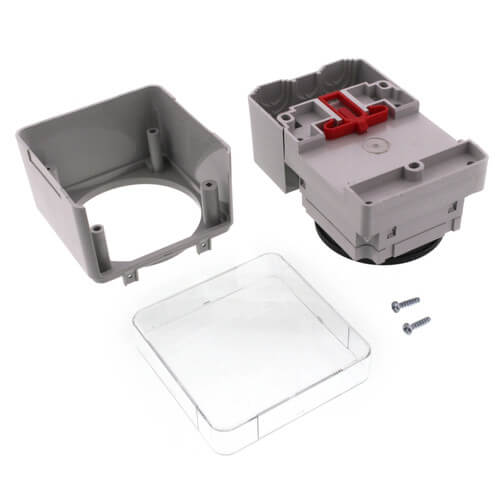

• Features a clear plastic dust cover and easy-to-set true clock face.
• Includes captive trippers with fifteen-minute intervals.

Product Highlights

The MIL72 series offers a reliable solution for managing electrical systems in various settings including commercial spaces and agricultural facilities.

Product Information

Standard Information

• Type: Electromechanical
• Brand: Intermatic

Technical Specifications

• Voltage: 120 Volt
• Wattage: 1350 Watt
• Action: SPDT
• Dimensions: 2.83 inches long x 2.06 inches wide x 4.0 inches high
• Amperage Rating: 21 Amp
• Temperature Rating: -40 to 185 degrees Fahrenheit
• Mounting Type: Surface/DIN Rail
• Contact Rating: 21 AMP @ 120 - 250 VAC
