Intermatic LS2 Light Sensor 277V (10-1000 fc)

Product Description

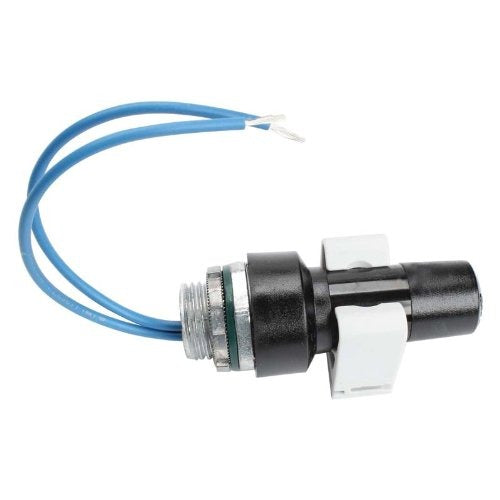

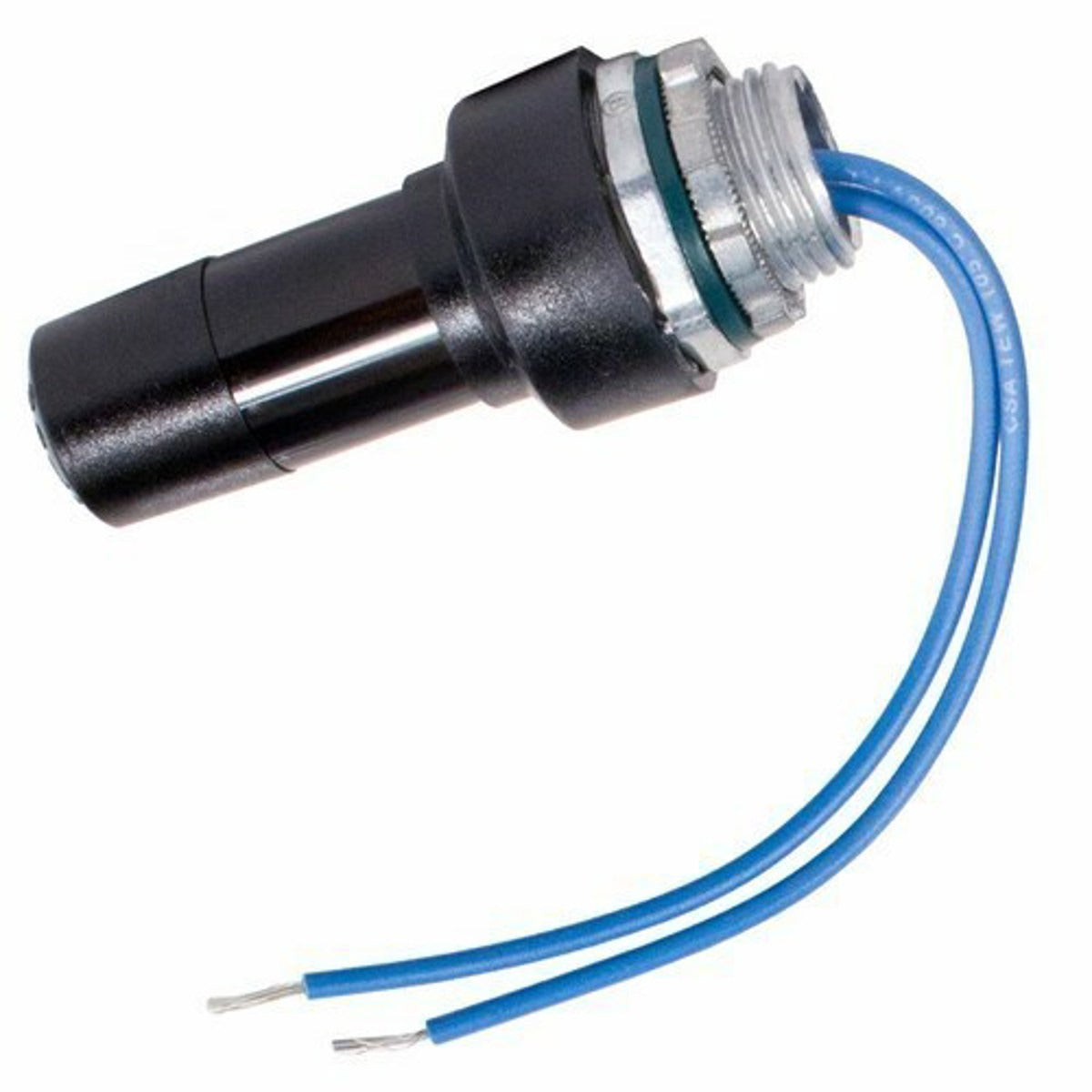

Intermatic LS2 is an ambient dark light sensor that detects natural or ambient light from 10 to 1,000 foot-candles and provides light-level information to LightMaster control modules. The unit outputs SPDT relay dry contacts per channel, is rated 277 V and 10 A, and is housed in an IP65 enclosure. It can be mounted via a 3/4 inch conduit fitting and positioned up to 300 ft (91.44 m) from the control unit.

• Light sensing range: 10 to 1,000 foot-candles; outputs SPDT relay dry contacts per channel
• Electrical ratings: 277 V AC, 10 A (relay contact rating); environmental rating 0 to 100% RH; operating temperature -22 to +158 F (-30 to +70 C)
• Mounting: 3/4 in conduit fitting; sensor can be mounted up to 300 ft (91.44 m) from control modules; IP65 enclosure

Product Highlights

Ambient dark light sensor for LightMaster systems; 10–1000 fc sensing, 277 V/10 A relay contact rating, SPDT dry-contact output, IP65 housing, connects to up to 10 control modules.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: LS2
• Country of Origin: Germany
