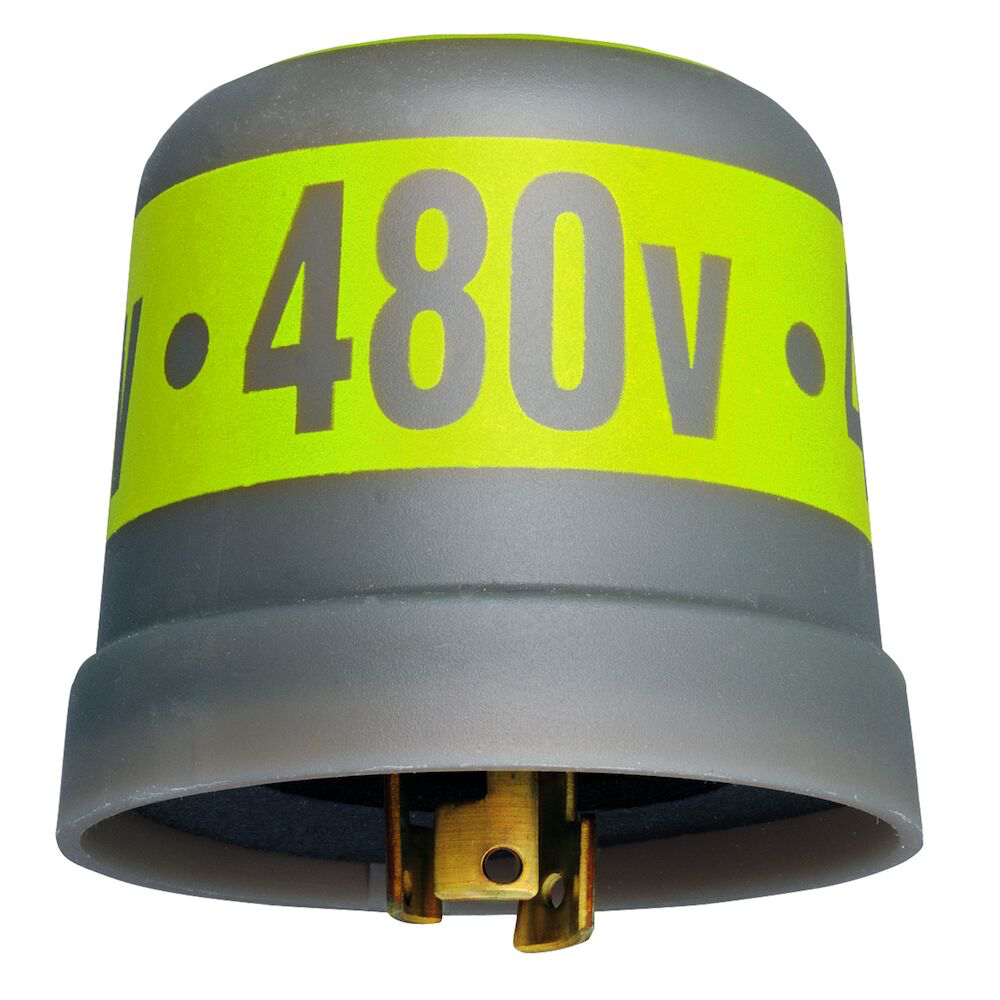

Intermatic LC4535 PHOTOCONTROL THRM 480VAC 7200W 4000VA PP

Product Description

The Intermatic LC4535 Photocontrol is designed for 480 Volts with a power rating of seven thousand two hundred watts for tungsten applications and four thousand volt-amperes for ballast. This device features a locking mounting design that simplifies the installation process. It is suitable for outdoor lighting control, allowing automatic on and off switching based on environmental light conditions.

• Mechanical bimetal switch with Cadmium Sulfide photocell
• Locking type plug for quick installation and changeover
• Tested to three thousand six hundred fifty ON/OFF cycles

Product Highlights

The Intermatic LC4535 provides dusk-to-dawn lighting control with a delay feature to prevent unwanted switching off, especially during transient light sources like car headlights. The construction includes a high impact thermoplastic housing, ensuring durability and resistance to outdoor conditions.

Product Information

Standard Information

• Manufacturer: Intermatic
• Model Number: LC4535

Technical Specifications

• Voltage Rating: 480 VAC
• Amperage Rating: 15 A
• Tungsten Rating: 7200 W
• Ballast Load: 4000 VA
• Frequency Rating: 50/60 Hz
• Operating Temperature: -20 to 104 deg F
• Dimensions: 3 inches diameter x 2.75 inches height
• Environmental Conditions: -20 to 104 deg F
