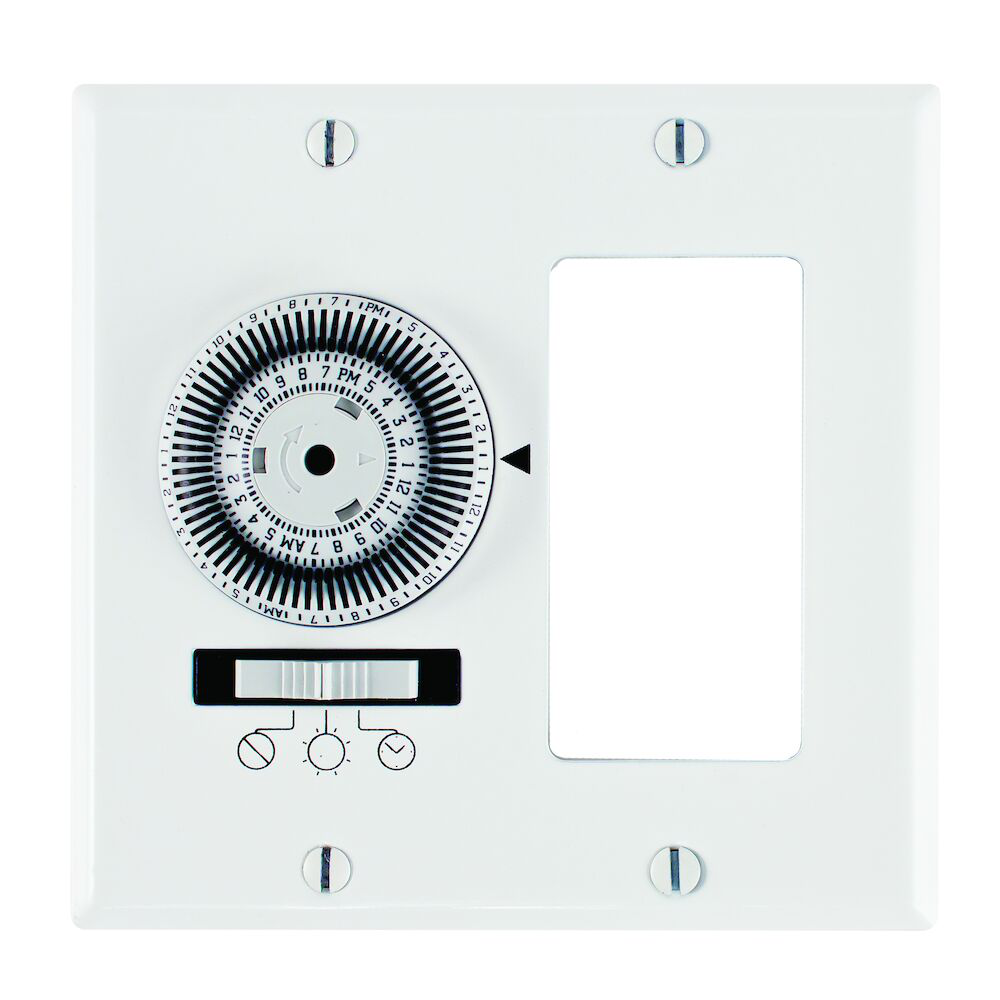

Intermatic KM2ST-2D 24-Hour Heavy-Duty

Product Description

Intermatic KM2ST-2D is a 24-hour heavy-duty electromechanical timer designed for circuits up to 20 amps. It provides automatic ON/OFF control for both outdoor and indoor lighting, fans, pumps, and office equipment. This timer is suitable for various loads, ensuring efficient management of power and energy.

• 72 trippers for 36 ON/OFF events daily
• Captive trippers with 20-minute intervals
• Easy wiring and installation

Product Highlights

This timer includes a reliable synchronous motor and a 3-position ON/OFF/AUTO override switch, allowing continuous operation as needed.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: KM2ST-2D

Technical Specifications

• Voltage Rating: 120 VAC
• Amperage Rating: 20 A
• Wattage: 1350 W
• Mounting Type: Wall
• Contact Configuration: 1 NO
• Contact Rating: 20 AMP @ 120 VAC
• Environmental Conditions: 0 - 95 RH Non-Condensing
• Operating Temperature: -40 to +180 degrees F
• Timing Range: 20 minutes to 24 hours
• Warranty Length: 1 year
• Country of Origin: Mexico
