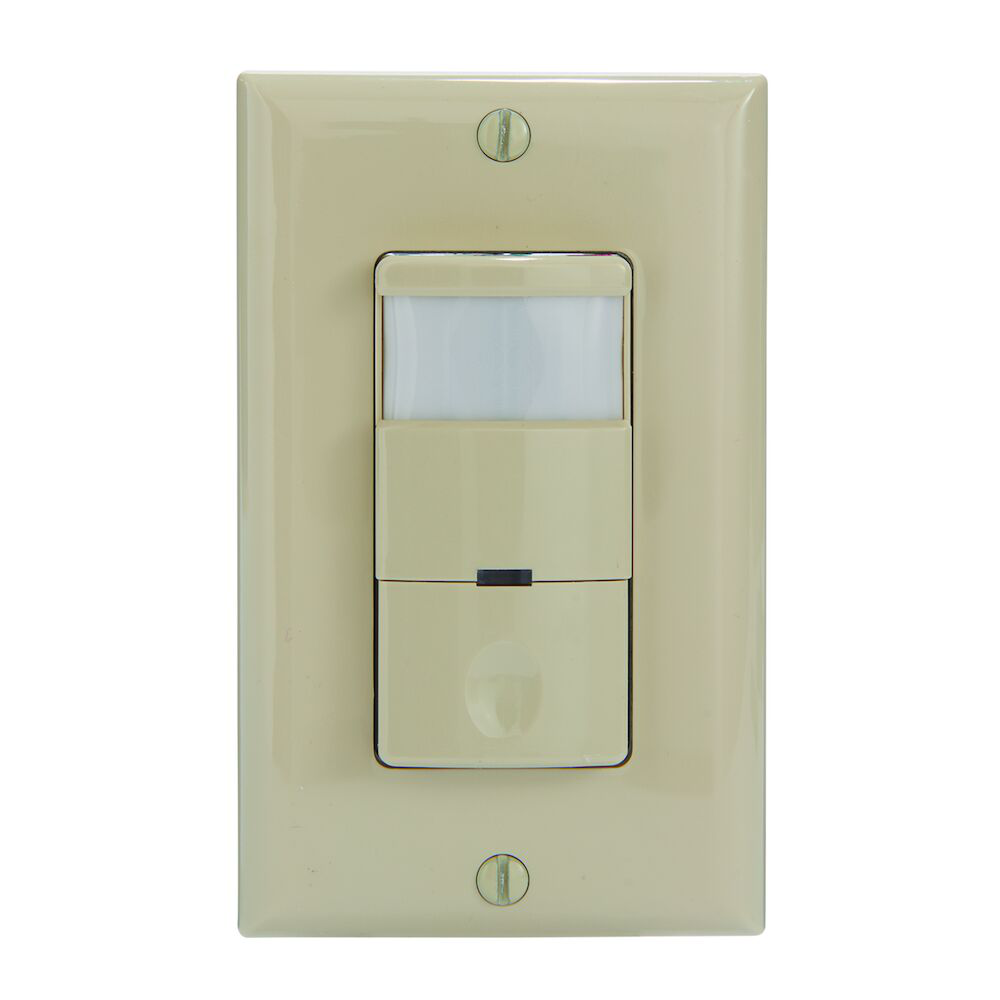

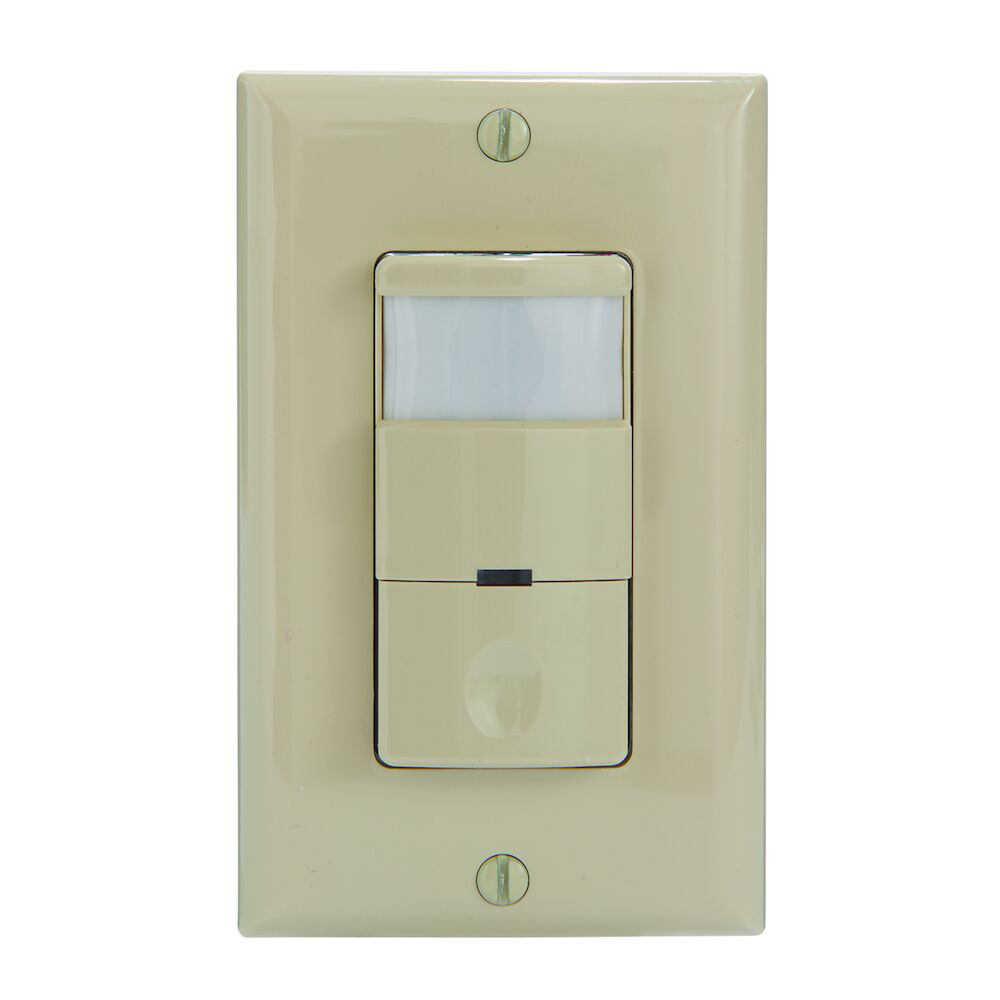

Intermatic IOS-DOV-IV self adaptive in-wall PIR sensor switch 800W 180 degrees

Product Description

The INTERMATIC IOS-DOV-IV is an in-wall passive infrared (PIR) sensor switch designed for indoor sensing control. It detects human motion by sensing heat differences, automatically turning a load ON when occupancy is detected and OFF after a set time delay. This 120 VAC sensor features a single relay, an ambient light level sensor, and zero-crossing technology for extended life, making it suitable for commercial applications.

• Passive Infrared (PIR) sensing for presence detection
• User-selectable Vacancy or Occupancy switch mode
• Zero-crossing technology for long life and performance

Product Highlights

Automatic ON/OFF control with adjustable ambient light sensor override.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: IOS-DOV-IV
• Country of Origin: China

Technical Specifications

• Type: Electronic and Magnetic
• Standard: Title 24 Compliant, UL/cUL Listed
• Lamp Type: LED
• Load Type: 800 VA @ 120 VAC (Fluorescent), 800 WTT @ 120 VAC (Tungsten)
• Applications: Indoor Sensing Control, Commercial
• Input Voltage: 120 VAC
• Mounting Type: In-Wall
• Sensing Range: 180 DEG 1200 SQ-FT
• Operating Cycles: 20000
• Number of Circuits: 1
• Operating Temperature: 32 to 131 deg F
• Color: Ivory
• Series: IOS-DOV
• Time Delay: 15 s to 30 min
• Sensor Type: Passive Infrared
• Control Output: ON/OFF
• Response Frequency: 50/60 Hz
