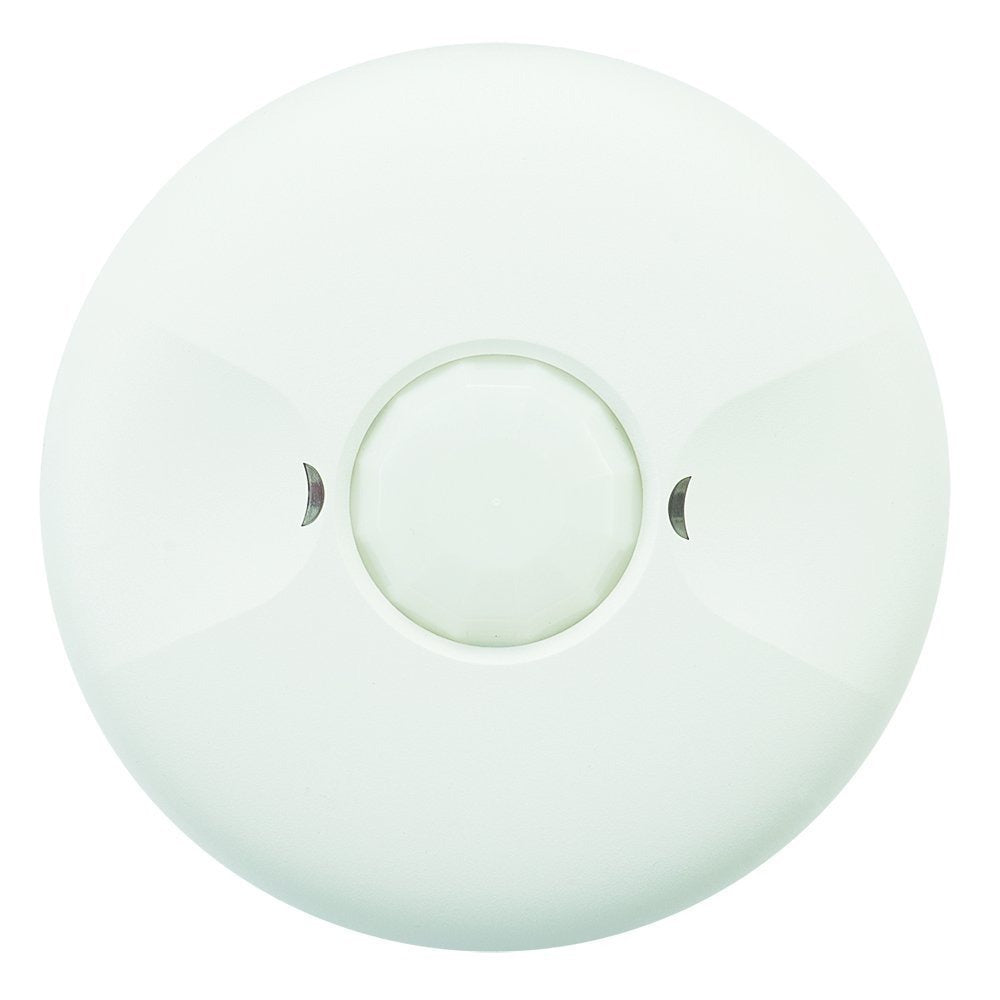

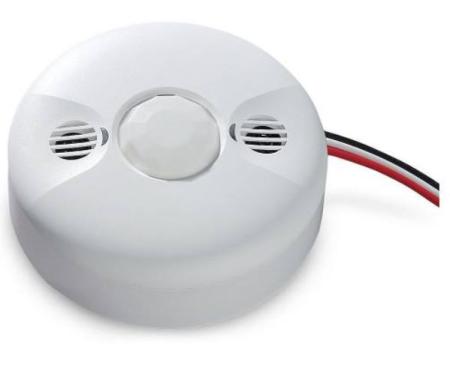

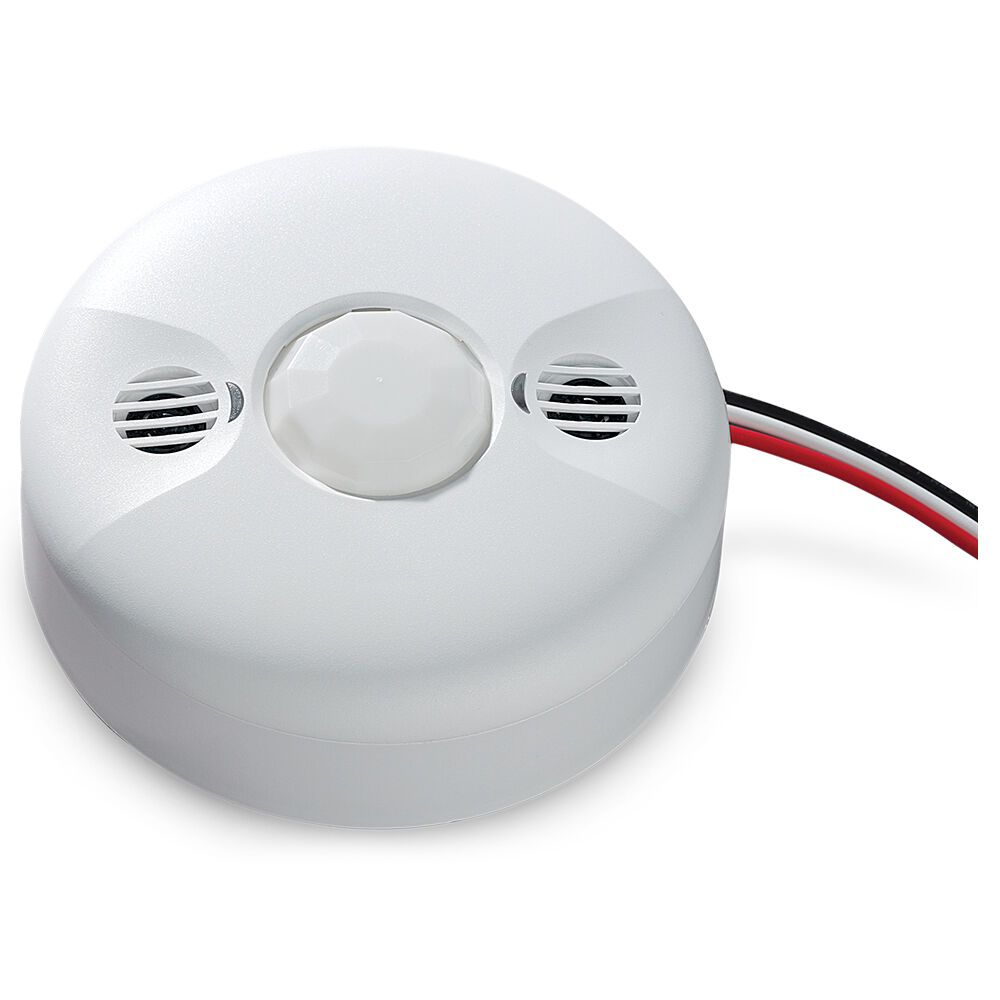

Intermatic IOS-CMP-DT-U Dual Technology Ceiling Occupancy Sensor 1/4 HP (360 degree Coverage)

Product Description

Intermatic IOS-CMP-DT-U is a dual-technology line-voltage ceiling occupancy sensor that uses ultrasonic and passive infrared sensing to control lighting loads based on presence and ambient light. The sensor operates at 120/277 VAC, 50/60 Hz, supports up to 800/1600 VA or 1/4 HP loads, and provides 360 degree coverage with PIR up to 1,600 sq ft and ultrasonic up to 1,000 sq ft.

• Dual-technology detection (PIR + ultrasonic) with adjustable ambient light sensor override and zero-crossing switching
• Ceiling-mount design for 8 to 11 ft heights; coverage: PIR up to 1,600 sq ft, ultrasonic up to 1,000 sq ft; 360 degree viewing
• Line-voltage operation 120/277 VAC, 50/60 Hz; timer adjustable 5 seconds to 30 minutes; requires neutral connection; compatible with incandescent, fluorescent, CFL, and LED

Product Highlights

Line-voltage dual-technology ceiling sensor with adjustable time delay, zero-crossing switching, and 360 degree coverage for indoor lighting control.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: IOS-CMP-DT-U
• Country of Origin: China
