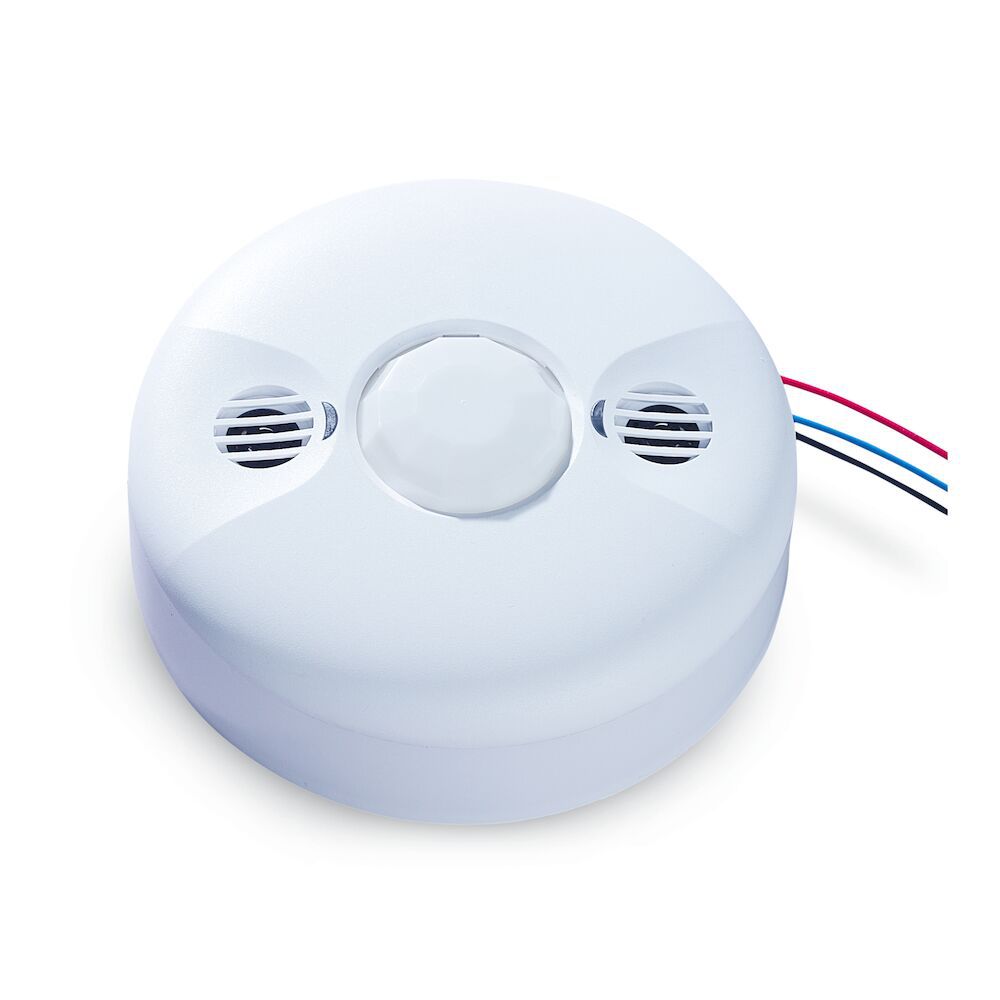

Intermatic IOS-CMP-DT-LV Commercial Gr

Product Description

The Intermatic IOS-CMP-DT-LV is a dual technology low voltage occupancy sensor designed for ceiling mounting. This sensor uses both passive infrared (PIR) and ultrasonic technology for occupancy detection and ambient light level control. It minimizes false triggering and enhances detection accuracy. The sensor activates the load and maintains it on as long as it detects presence through either technology. If no movement is observed within a user-defined interval of five seconds to thirty minutes, the sensor will turn the load off. The coverage area is extensive, providing up to 1600 square feet for PIR and 1000 square feet for ultrasonic detection.

• Dual technology for improved presence detection
• Customizable time delay from five seconds to thirty minutes
• Comprehensive 360-degree coverage

Product Highlights

Ideal for use in partitioned areas, storage rooms, and waiting rooms.

Product Information

Standard Information

• Catalog Number: IOS-CMP-DT-LV
• Brand: Intermatic

Technical Specifications

• Power Type: 24 VDC
• Weight: 0.5 lb
• Height: 1-3/8 inches
• Country of Origin: China
• Operating Temperature: 32 to 122 degrees F
• Max Coverage Area: 1600 ft² for PIR, 1000 ft² for Ultrasonic
• Mounting Type: Ceiling
• Warranty Length: 2 years
