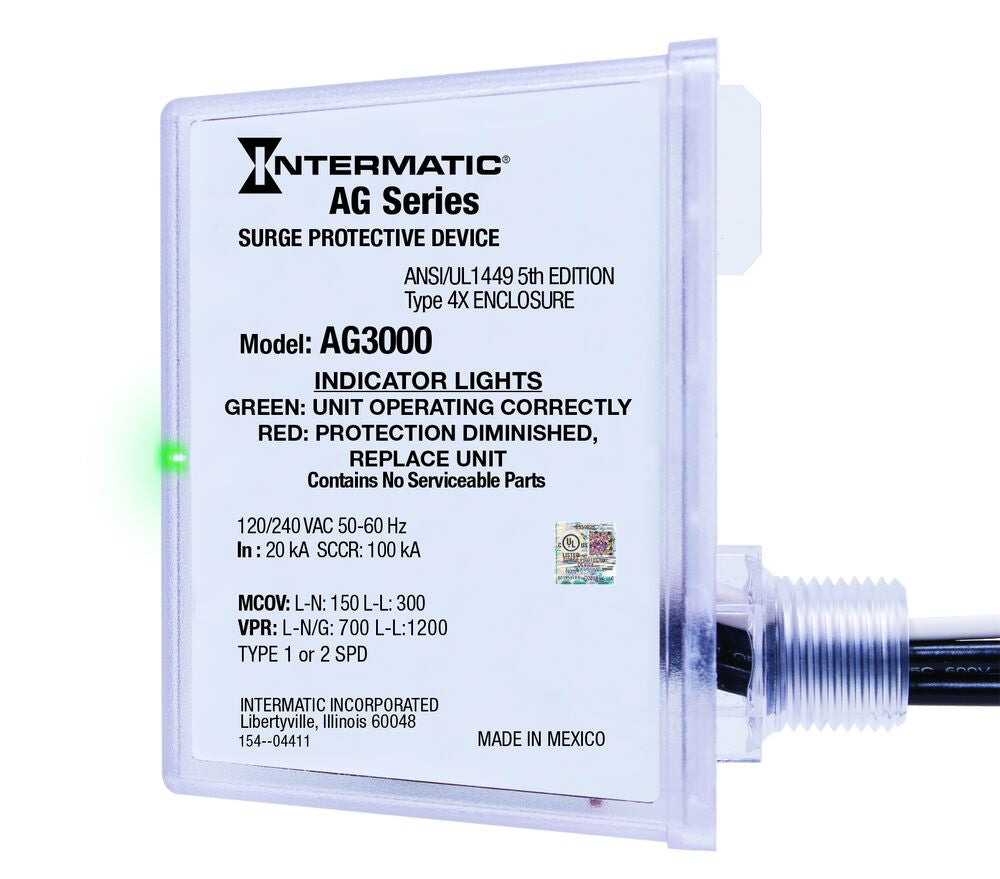

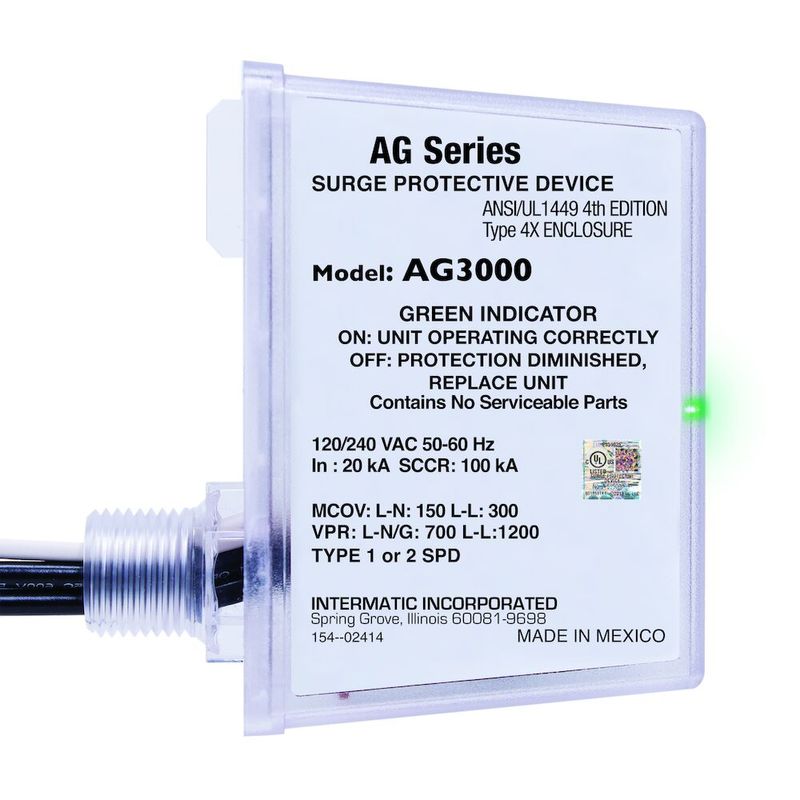

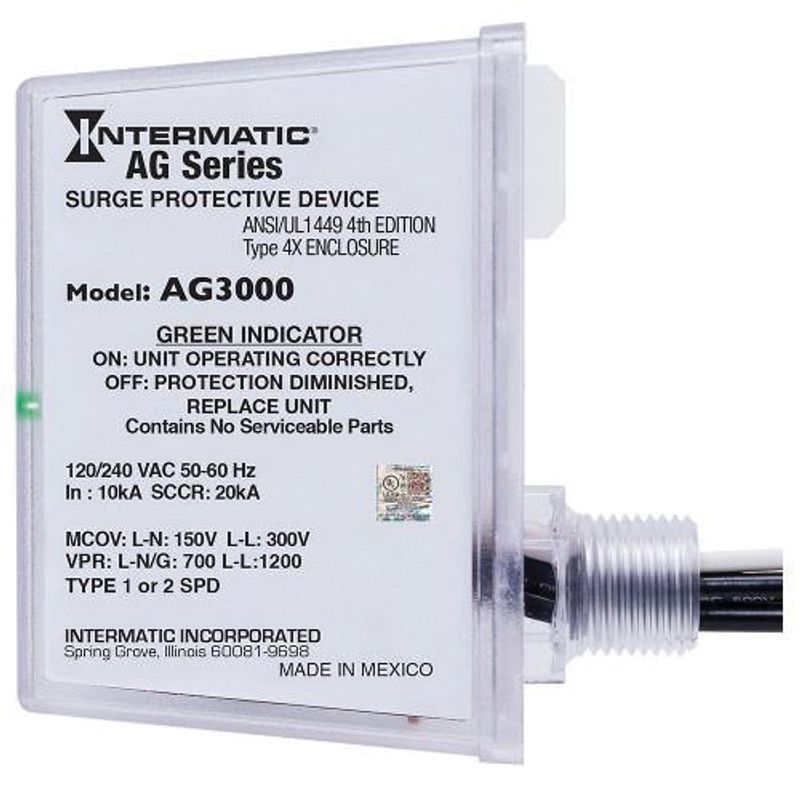

Intermatic INT-AG3000 Surge Protective Device

Product Description

The Intermatic INT-AG3000 is a surge protective device designed for single-phase systems operating at 120/240 VAC. It is useful for protecting HVAC equipment against power surges.

• Provides surge protection on three modes: L-G, L-L, L-N.
• Utilizes TPMOV® technology for reliable surge protection.
• NEMA 4X rated enclosure makes it suitable for indoor and outdoor use.

Product Highlights

This surge protective device includes LED indicators that show operational status. A green light indicates proper function, and a red light suggests the need for replacement. Constructed for durability, it meets UL certification standards for safety and reliability.

Product Information

Standard Information

• Brand: Intermatic
• MPN: INT-AG3000

Technical Specifications

• Frequency Rating: 50/60 Hz
• Phase: Single
• NEMA Rating: NEMA 4X
• Indicators: Green LED
• Short Circuit Rating: 100 kA
• Voltage Rating: 120/240 VAC
• Temperature Rating: -40 to 70 deg C
• Height: 4.5 inches
• Width: 2 inches
• Length: 4.3 inches
• Operating Temperature: -40 to 158 deg F
• Connection: 18 inch lead
• Surge Protection Modes: 3 (L1-N, L2-N, L1-L2)
• Maximum Surge Current: 50 kA
• Warranty Period: 3-Year limited
• Enclosure Type: Indoor/Outdoor Type 4X
• Material: Plastic
