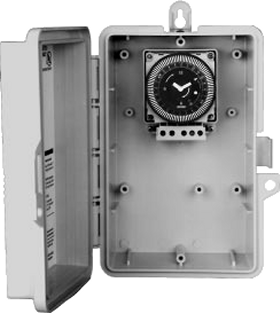

Intermatic GMXST-I-120 24-Hour 120V Electromechanical Timer 21A SPDT

Product Description

The Intermatic GMXST-I-120 is a versatile electromechanical timer designed for 120 volts. This product is useful for applications requiring control over electrical devices within light-duty commercial settings. It suits general electrical circuits in HVAC, pumps, motors, and lighting.

• SPDT contact configuration rated for 21 amps.
• 15-minute to 24-hour timing intervals.
• UL Type 1 indoor and Type 3R outdoor enclosure.

Product Highlights

The timer features a true clock face for easy setting and manual override options, making it ideal for managing timed electrical applications.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic

Technical Specifications

• MPN: GMXST-I-120
• Voltage Rating: 120 volts
• Amperage Rating: 21 amps
• Horsepower: 1 HP
• Dimensions: 10 inches (height) x 6.5 inches (width) x 3.75 inches (depth)
• Environmental Rating: NEMA 1
• Operating Temperature: -40 to 185 degrees Fahrenheit
• Timing Range: 15 minutes to 24 hours
• Application: Commercial, Indoor, Lighting, HVACR, Pumps, Motors
