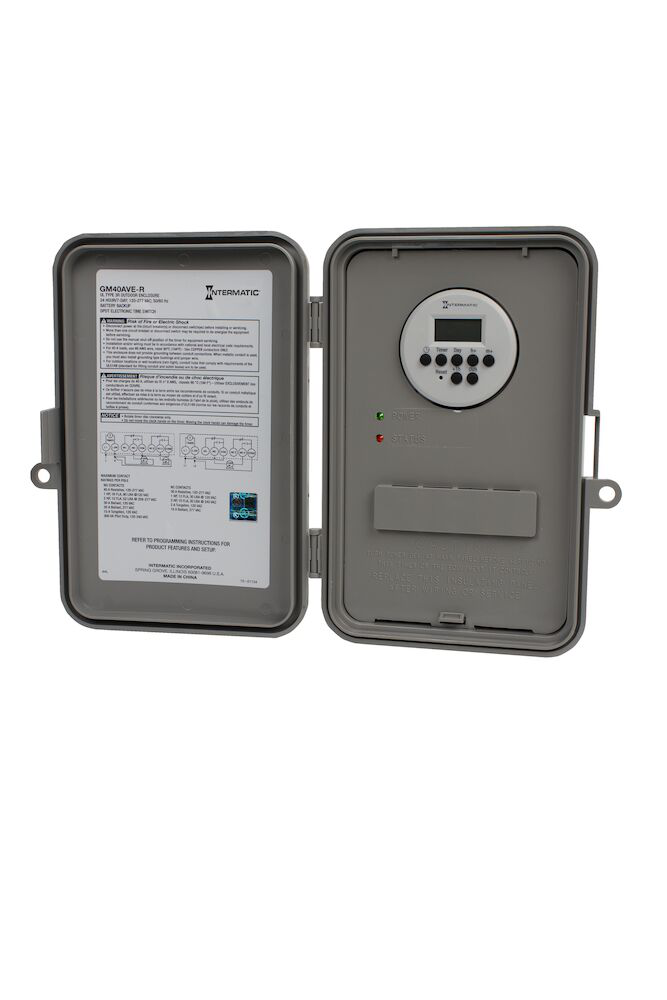

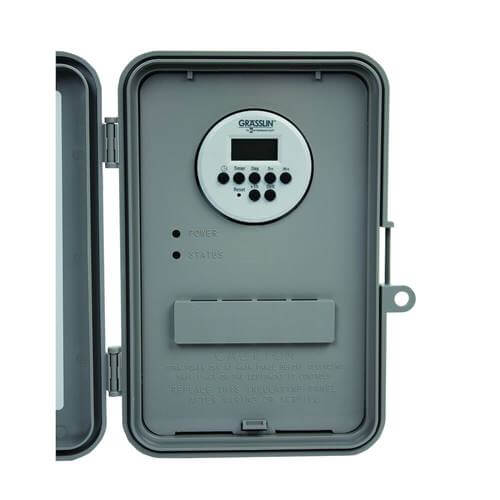

Intermatic GM40AVE-RD89 Digital Timer 40A 120-277V

Product Description

The Intermatic GM40AVE-RD89 is an electronic time switch designed for both residential and commercial applications. Featuring a robust 40A contact rating, it can automatically detect input voltage without the use of a DIP switch or selector pins, selecting any voltage between 120VAC and 277VAC. The time switch is housed in a compact UL Type 3R outdoor enclosure and can be retrofitted into other Intermatic enclosures. It features a standard DPDT switching configuration, meaning two normally open and two normally closed contacts.

• Automatic voltage adjustment between 120VAC and 277VAC
• Heavy-duty 40A contact rating
• Compact UL Type 3R outdoor enclosure

Product Highlights

Heavy-duty 40A time control with automatic voltage adjustment, suitable for both residential and commercial use in a compact outdoor enclosure.

Product Information

Standard Information

• Brand: Intermatic
• MPN: GM40AVE-RD89

Technical Specifications

• Voltage: 120-277VAC
• Amperage: 40A
• Switch Type: DPDT
• Enclosure Type: NEMA 3R
• Dimensions: 8.88 in H x 6.61 in W x 3 in D
• Temperature Rating: -40 to 131 degrees F
• Battery Type: NiMH
• Max Operating Temperature: 55 degrees C
• Min Operating Temperature: -15 degrees C
