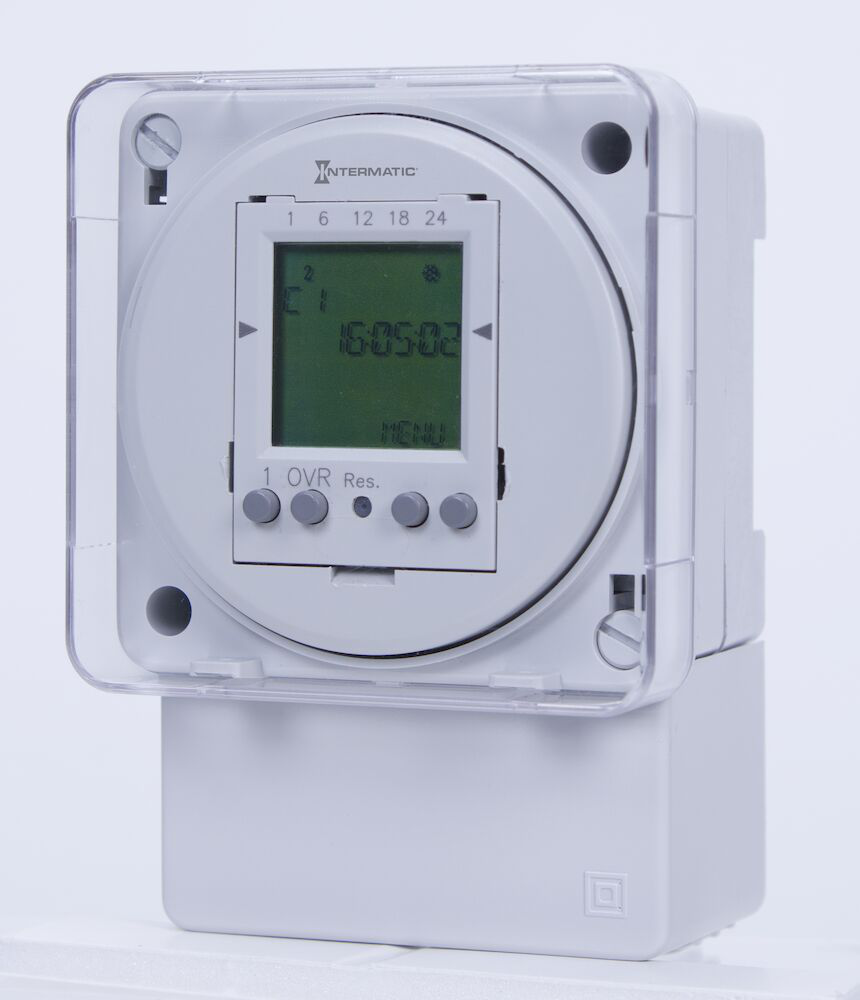

Intermatic FM1D50A-24 Digital Timer Switch 50 Programs 24V SPDT

Product Description

The Intermatic FM1D50A-24 Digital Timer Switch is designed for reliable time control of electrical loads in commercial and industrial applications. This one-channel electronic timer can handle 24-hour or 7-day programs, making it versatile for scheduling heating, lighting, HVAC, and more. It supports surface, flush, or DIN rail mounting.

• Programmable for up to 50 set points and two preset block programs.
• Includes manual override with status indication and battery backup for uninterrupted functionality.
• Features a large LCD for easy programming, available in seven languages, and an auto Daylight Saving Time adjustment.

Product Highlights

The timer is encased in a durable plastic housing with a clear dust cover to protect against environmental factors. It offers easy-to-follow, menu-driven programming for quick setup and adjustments.

Product Information

Standard Information

• Brand: Intermatic
• Categories: Timers, Digital Timers, Electronic Time Switches

Technical Specifications

• Type: One Channel Electronic
• Voltage: 24 VAC/VDC
• Power: 1000 Watt
• Operating Temperature: -13 to 131 degrees Fahrenheit
• Mounting: Surface/DIN Rail
• Dimensions: 4 inches height x 2.83 inches width x 2.06 inches depth
• Standards: cULus Recognized E10694, California TITLE 24 Compliant
