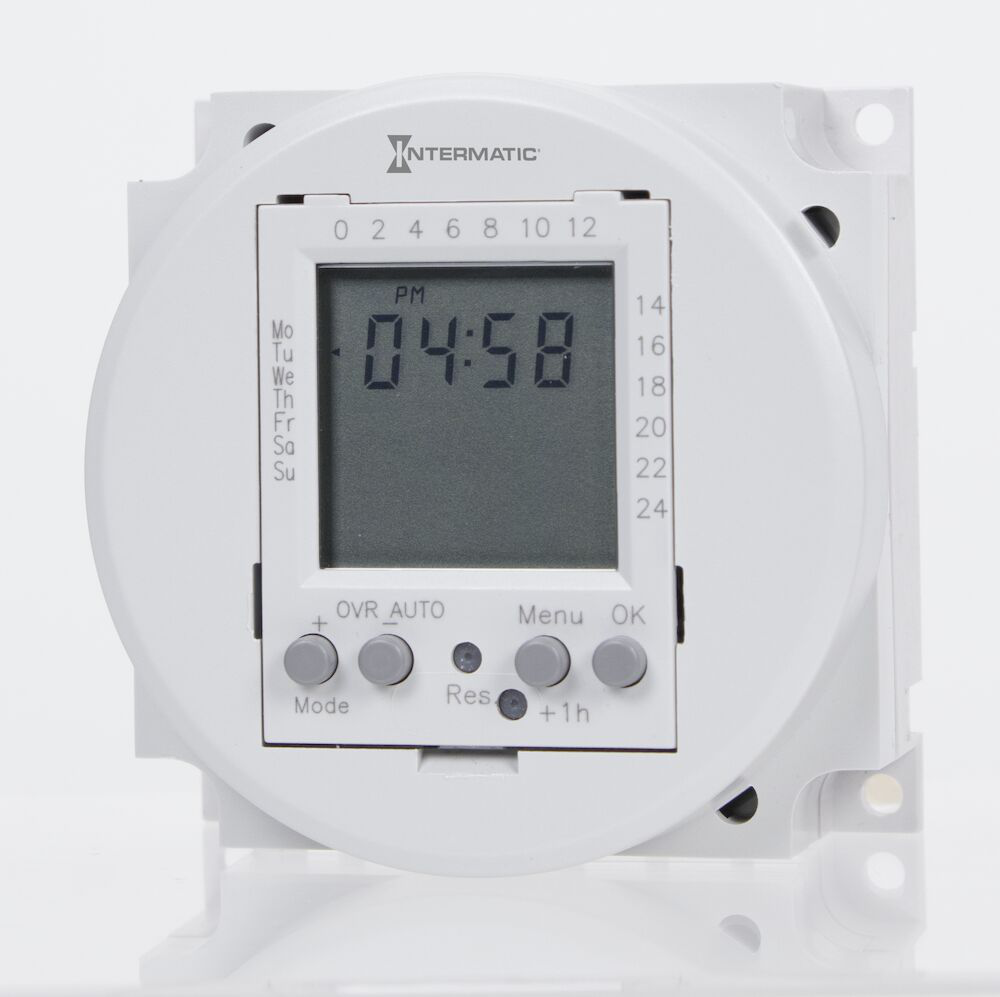

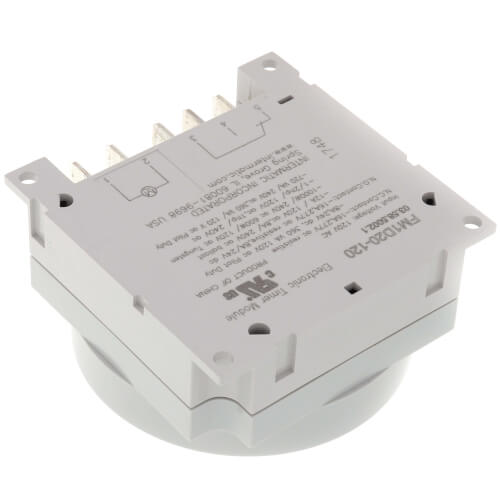

Intermatic FM1D20-120U Electronic Timer Module 120V 16A SPDT Panel Mount

Product Description

The Intermatic FM1D20-120U is a versatile electronic time control module, perfect for managing electrical loads in lighting, HVACR, and various industrial applications. This device, engineered by Intermatic, offers flexible programming for 24-hour or 7-day schedules and can be mounted on panels, surfaces, flush, or DIN rails.

• Programmable for both 24-hour or 7-day operations.
• Includes manual override with status indication.
• Encased in a robust plastic housing with dust and terminal cover.

Product Highlights

This timer module is designed for time-of-day control of pumps, fans, heaters, and more. It features easy-to-follow menu-driven programming and a large LCD for clear viewing.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FM1D20-120U
• UPC: 078275116344

Technical Specifications

• Voltage: 120 Volt
• Power Rating: 1000 Watt
• Mount: Panel Mount
• Contact Configuration: SPDT (Single Pole Double Throw)
• Contact Rating: 16 AMP @ 277 VAC, 8 AMP @ 240 VAC
• Operating Temperature: -13 to +131 degrees F
• Compliance: cULus Recognized, California TITLE 24, HVACR
