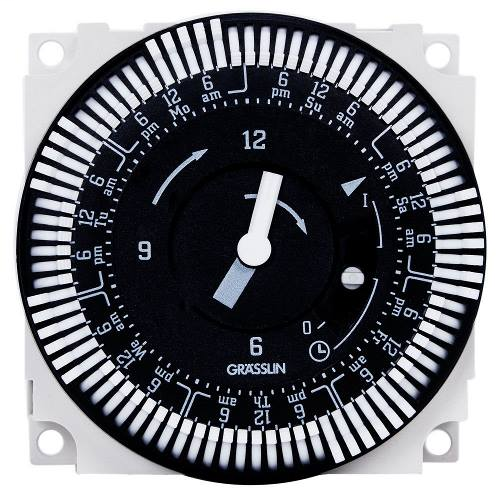

Intermatic FM1SWUZ-24U 7D Electromech Timer

Product Description

The Intermatic FM1SWUZ-24U 7D Electromech Timer is designed to be integrated inside a machine control panel, circuit board, or other equipment. With MPN FM1SWUZ-24U, it offers a cost-effective solution for applications not exceeding 21 A or 2 HP, 240 VAC.

• 21 A SPDT switch
• 7-day carry-over battery backup
• Noise immune for robust applications

Product Highlights

This timer is ideal for 12, 24 VAC/VDC,120 or 208/240VAC single-phase general applications. It features a true clock face and is easy to set. The FM1 series is perfect for HVACR, lighting, security, and pump systems.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Type: Synchronous Electromechanical
• Depth: 32 mm
• Width: 60 mm
• Height: 60 mm
• Voltage: 24 VAC
• Wattage: 1350 Watt
• Frequency: 50/60 Hz
• Horsepower: 1 hp
• Operating Temperature: 185 degrees F
• Max Operating Temperature: 185 degrees F
• Min Operating Temperature: -40 degrees C
• Product UPC: 61457312203
• Applications: HVACR, Lighting, Security, Circulating Pumps, Spas, OEM Applications
• Connection Type: 1/4 In Quick Connect
