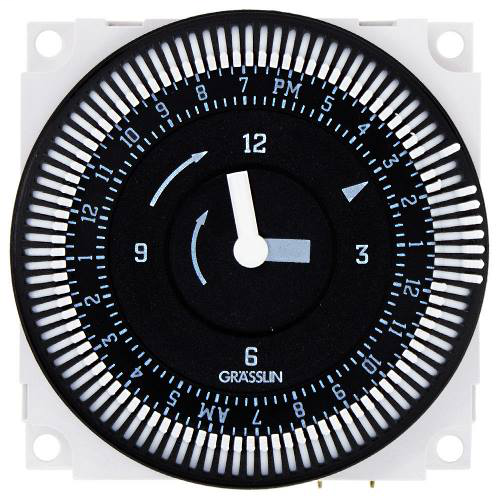

Intermatic FM1STUZ-24U 24-Hour Timer Module 24VAC 21A SPDT

Product Description

The Intermatic FM1STUZ-24U Timer Module is a reliable solution for scheduling control in various electrical systems. Designed for integration into machine control panels and circuit boards, it is perfect for managing heating, ventilation, refrigeration, lighting, security, and pump systems.

• 21A SPDT switch
• Available with or without override
• Compact size and easy to set

Product Highlights

This 24-hour timer module ensures precise control and reliable performance for critical applications. Its noise-immune design is ideal for robust environments, and the true clock face is simple to program. Suitable for HVACR, lighting, security, circulating pumps, spas, and more.

Product Information

Standard Information

• Catalog Number: FM1STUZ-24U
• Manufacturer: Intermatic
• Sub Brand: Grasslin
• Country of Origin: Mexico

Technical Specifications

• Type: Synchronous Electromechanical
• Depth: 1.25 inches
• Width: 2.36 inches
• Height: 2.36 inches
• Voltage: 24 VAC
• Wattage: 1350 Watts
• Action: SPDT
• Mounting Type: Panel Mount
• Contact Rating: 21 AMP at 120-250 VAC
• Connection Type: 1/4 inch Quick Connect
• Number of Poles: 1
• Warranty Length: 1 year
• Operating Temperature: -40 to 185 degrees Fahrenheit
