Intermatic FF46H 6 Hour 125 to 277 VAC 60 Hz DPST Countdown Timer

Product Description

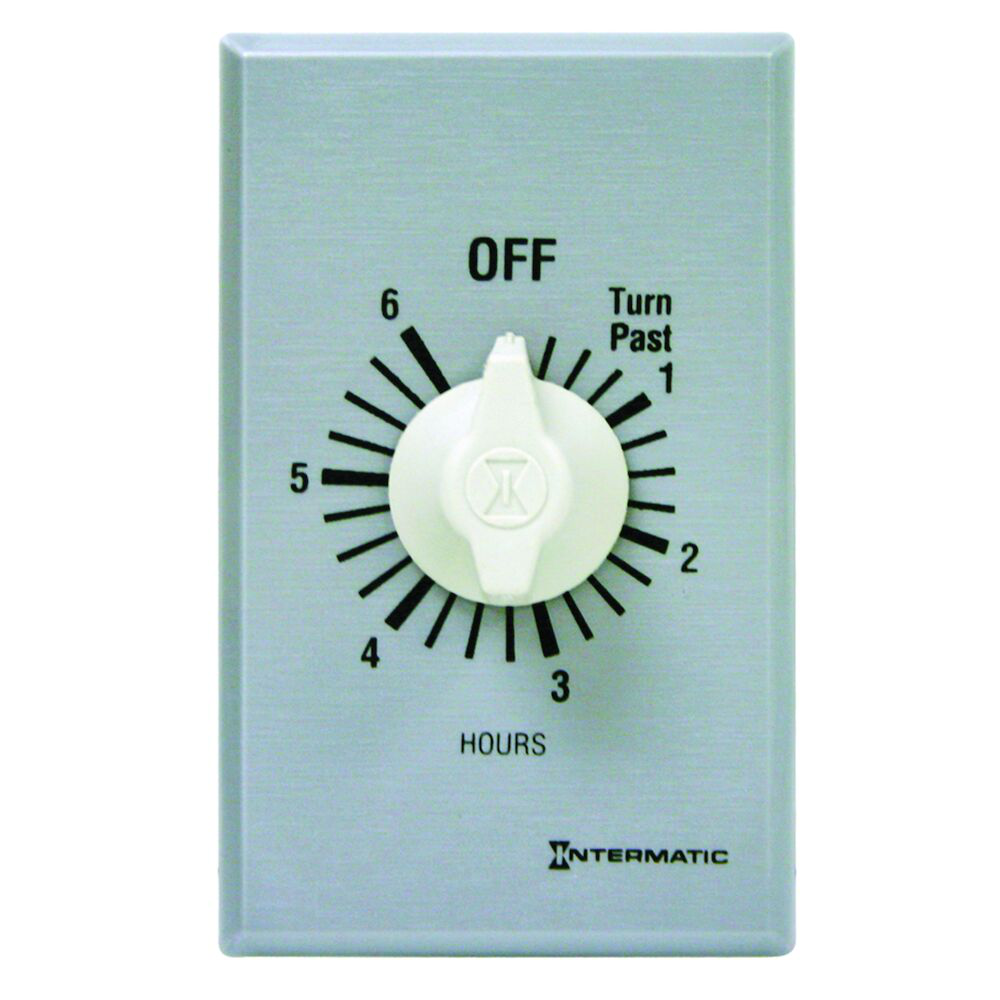

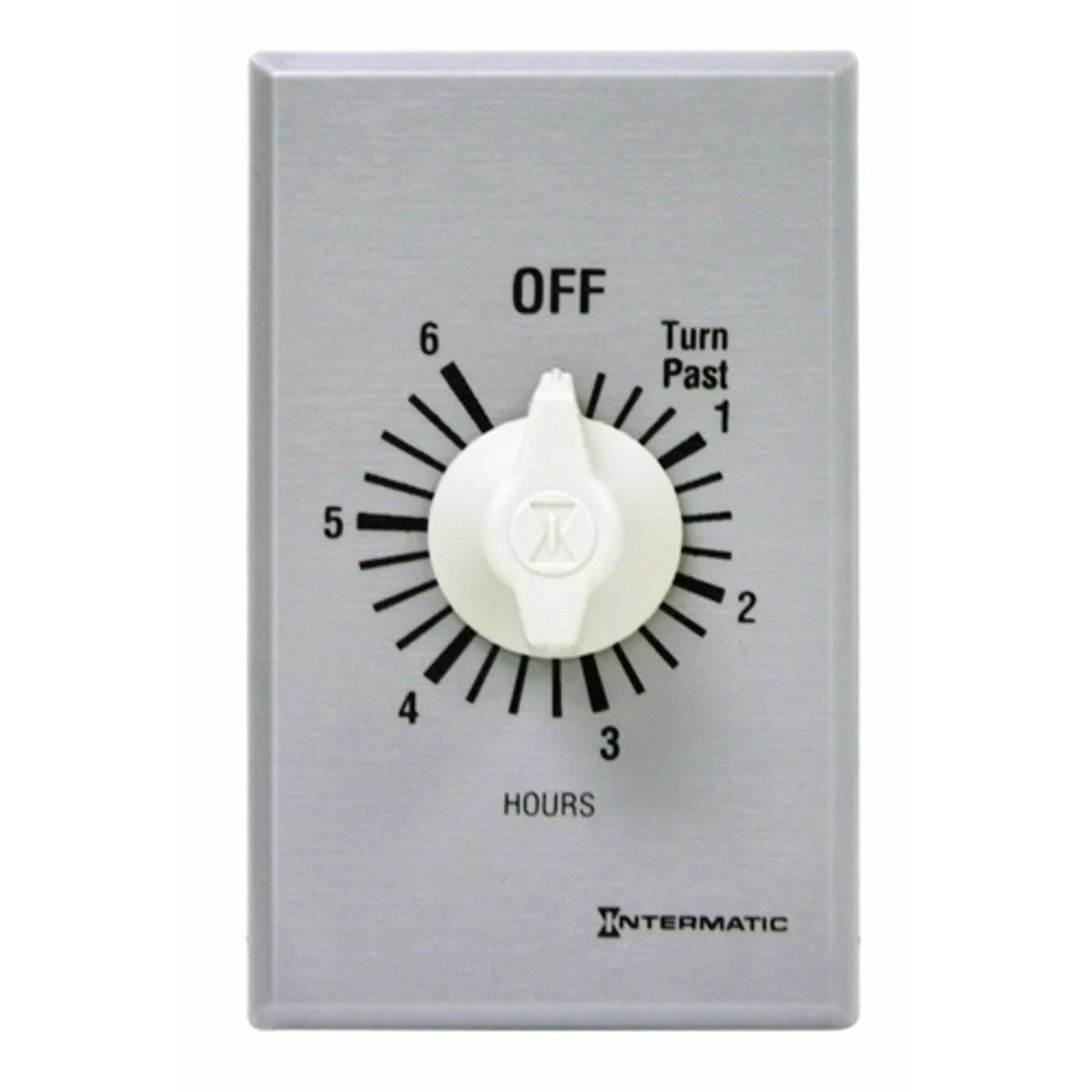

The Intermatic FF46H is a countdown timer designed to replace standard wall switches. This device is powered by a spring-wound mechanism that does not require electricity to operate. It effectively controls the ON time for fans, lighting, motors, and other loads, making it suitable for various applications. This timer is compliant with NEC requirements and features a brushed metal look plate made from plastic.

• Energy-efficient design limits ON time for connected devices.
• DPST (Double-Pole Single-Throw) operation for reliable functionality.
• Easy installation with teeter-type terminals.

Product Highlights

The Intermatic FF46H is engineered for commercial use, offering a timer range of up to six hours. Ideal for managing indoor lighting, HVACR systems, and motor controls.

Product Information

Standard Information

• Brand: Intermatic
• MPN: FF46H

Technical Specifications

• Voltage: 125-277 VAC
• Amperage Rating: 15 Amps
• Contact Rating: 7 AMP @ 125 VAC (Tungsten), 20 AMP @ 125 VAC (Resistive)
• Dimensions: 2.79 inches Height, 1.6 inches Width, 1.19 inches Depth
• Weight: 0.299 lb
• Temperature Rating: -40 to 104 degrees F
• Frequency: 50/60 Hz
• Applications: Indoor lighting control, HVAC systems, motors, and heating devices
• Warranty: 1 year
• Country of Origin: Tunisia
