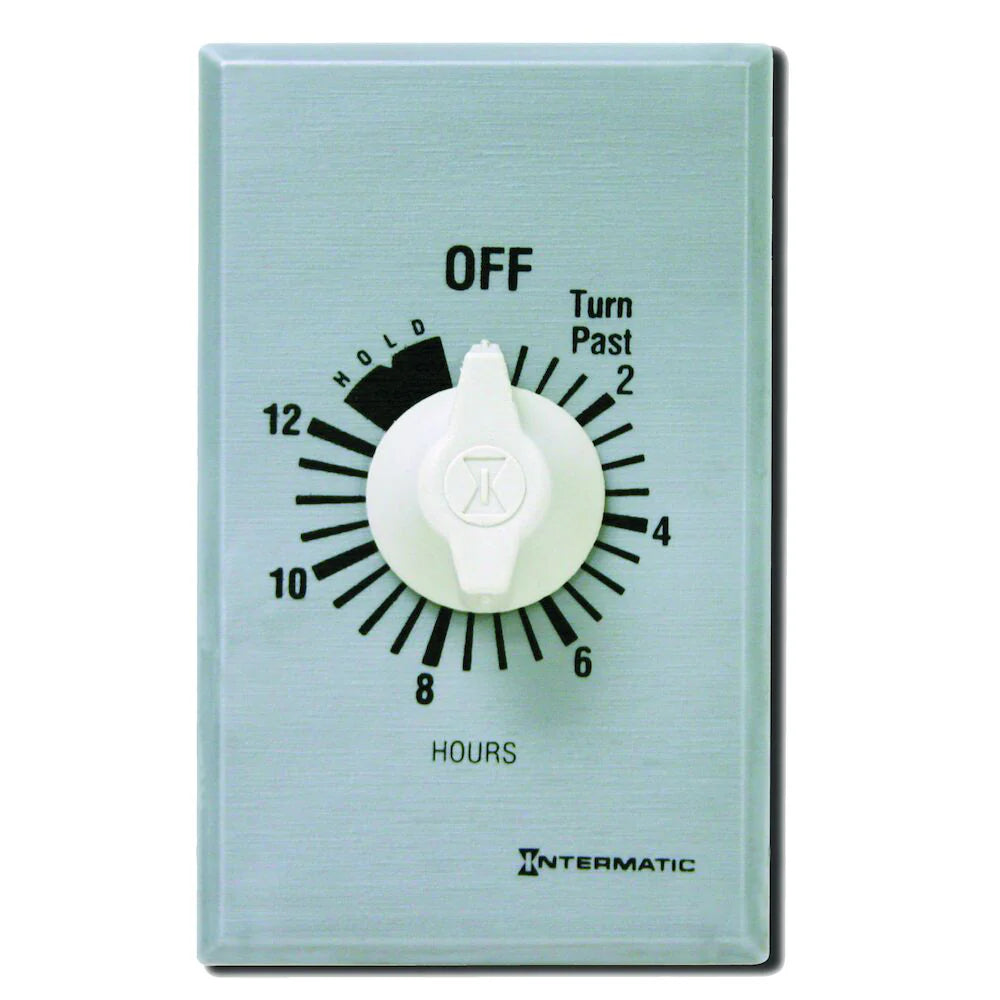

Intermatic FF312HH INT-MAT FF312HH Spring Wound Countdown Timer 125-277 VAC 12-Hour Max

Product Description

The Intermatic FF312HH is a spring wound countdown timer designed for commercial use. This device replaces standard wall switches and functions without the need for electrical power. It efficiently automates the ON time for various loads including lighting, motors, and HVAC systems.

• Operates without electricity
• 12-hour timing capacity
• Durable design meets NEC requirements

Product Highlights

The FF Series is ideal for regulating energy consumption in commercial settings. It features a hold option that allows users to bypass automatic shut-off when necessary.

Product Information

Standard Information

• Manufacturer: Intermatic
• Catalog Number: FF312HH

Technical Specifications

• Voltage Rating: 125-277 VAC
• Amperage: 15 Amp
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Mounting Type: Wall
• Timing Range: 12 Hours
• Contact Rating: 7 Amp @ 125 VAC (Tungsten)
• Applications: Indoor lighting, fans, electric motors, heaters
• Weight: 0.349 lb
• Country of Origin: Tunisia
