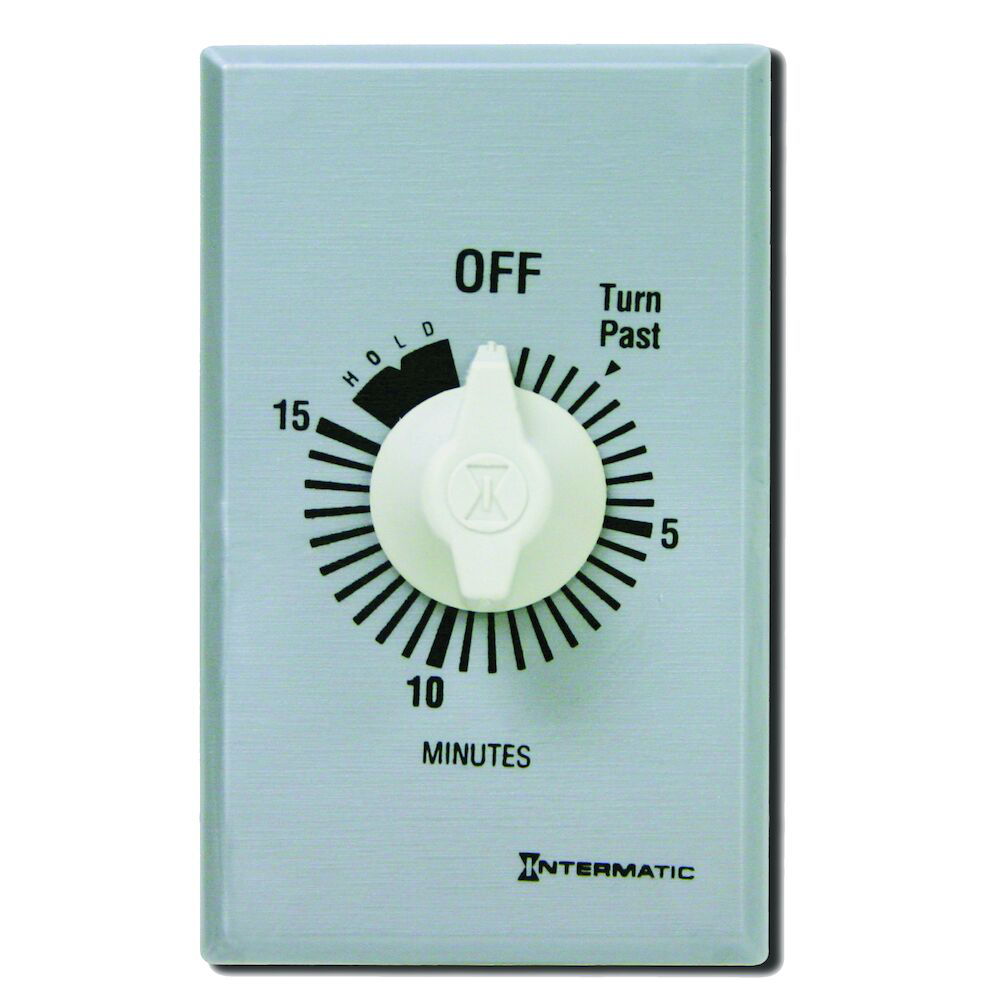

Intermatic FF15MH INT-MAT FF15MH Spring Wound Countdown Timer 125-277 VAC

Product Description

The Intermatic FF15MH is a spring wound countdown timer designed to replace standard wall switches without the need for electricity. This timer limits the ON time for various loads, including fans, lighting, motors, and heaters. It is constructed with a metal look plate and meets NEC requirements. Note that it should not be used with sunlamps or saunas due to potential safety issues.

• 15-minute timer with hold feature
• SPST (Single-Pole Single-Throw) operation
• Breaks circuit automatically at the end of the timing cycle

Product Highlights

This timer simplifies energy management in commercial applications by automatically controlling power to devices. It is ideal for HVACR systems and other energy-consuming loads.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc

Technical Specifications

• Catalog Number: FF15MH
• Voltage: 125-277 VAC
• Amperage Rating: 15 Amp
• Action: SPST
• Timing Range: 15 Min
• Height: 4-1/8 Inch
• Width: 1.75 Inch
• Depth: 1-1/4 Inch
• Weight: 0.299 lb
• Frequency: 50/60 Hz
• Applications: Indoor, CFL Lighting, Fans, Electric Motors, Heaters, HVACR
• Mounting Type: Wall Mount
• Warranty Length: 1 yr
• Country of Origin: Tunisia
