Intermatic FD6HH INT-MAT FD6HH Spring Wound Countdown 125-277 VAC

Product Description

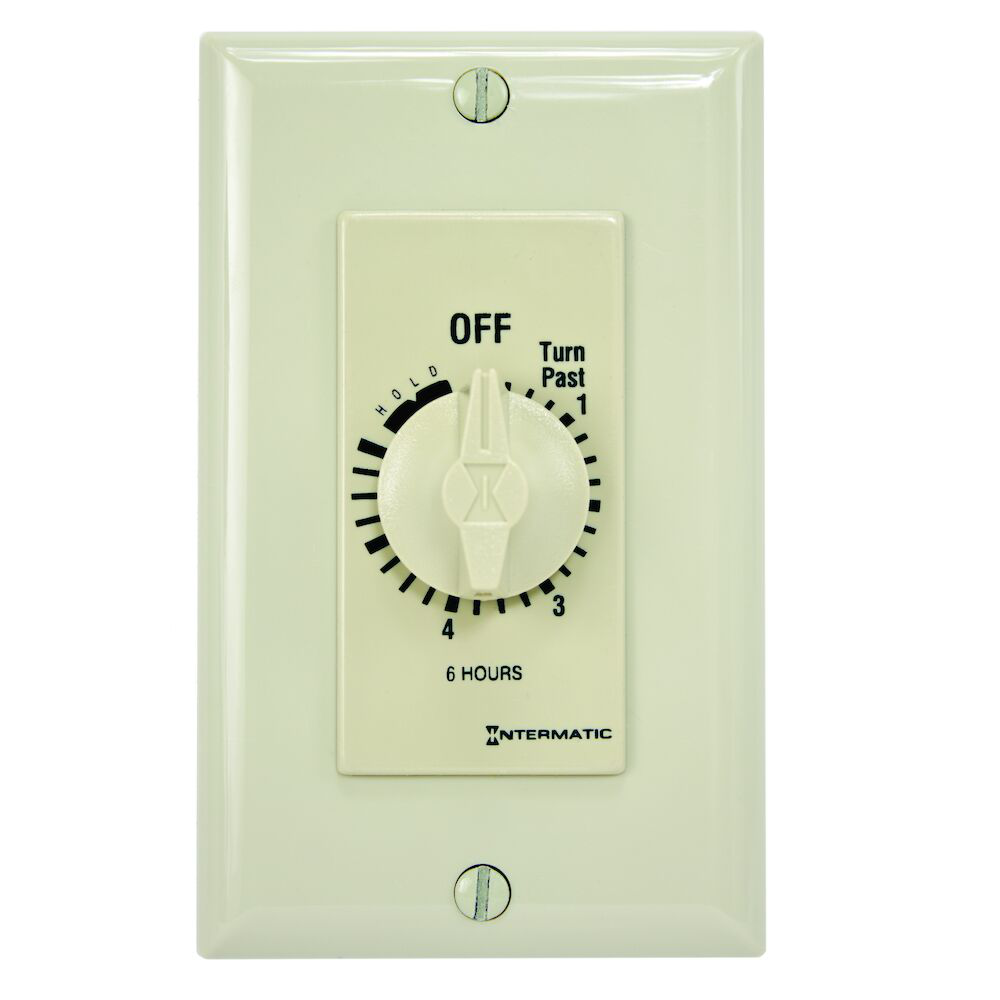

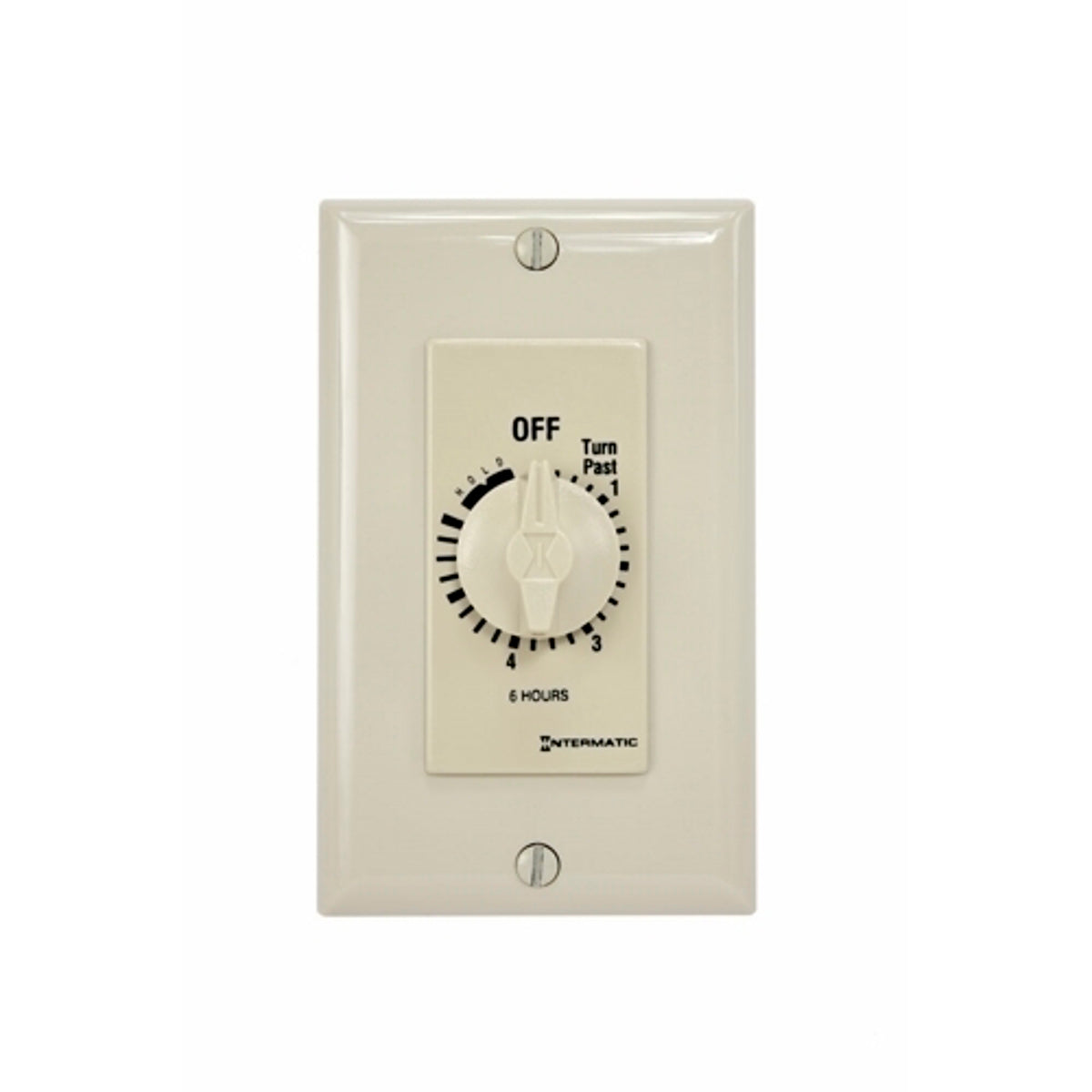

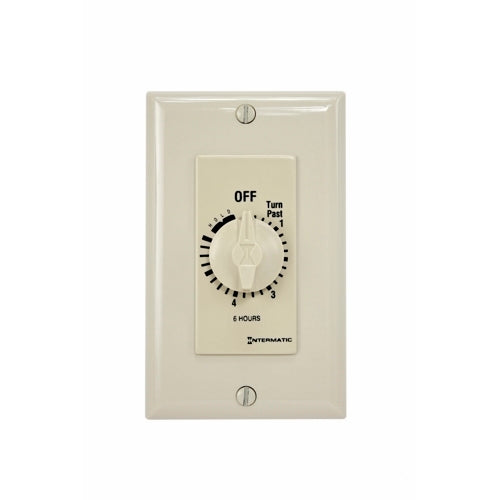

The Intermatic FD6HH is a mechanical spring wound countdown timer designed for replacing standard or decorator-style wall switches. This timer does not require electricity for operation. It limits ON times for various loads including fans, lights, and motors. Note that this product is not recommended for use with loads that can cause injury if timed inaccurately.

• 6-hour timer with hold function
• SPST action
• Teeter-type electrical connections

Product Highlights

The Intermatic FD6HH is ideal for controlling indoor lighting, motors, and HVAC applications efficiently without the need for an external power source.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer: Intermatic, Inc.

Technical Specifications

• Voltage Rating: 125-277 VAC
• Amperage Rating: 15 A
• Operating Temperature: -40 to 104 degrees F
• Size: 4-1/8 inches height x 1.75 inches width x 1-1/4 inches depth
• Frequency: 50/60 Hz
• Mounting Type: Wall mount
• Application: Indoor lighting, fans, electric motors
• Warranty Length: 1 year
• Country of Origin: Tunisia
