Intermatic FD430MW INT-MAT FD430MW Spring Wound Countd

Product Description

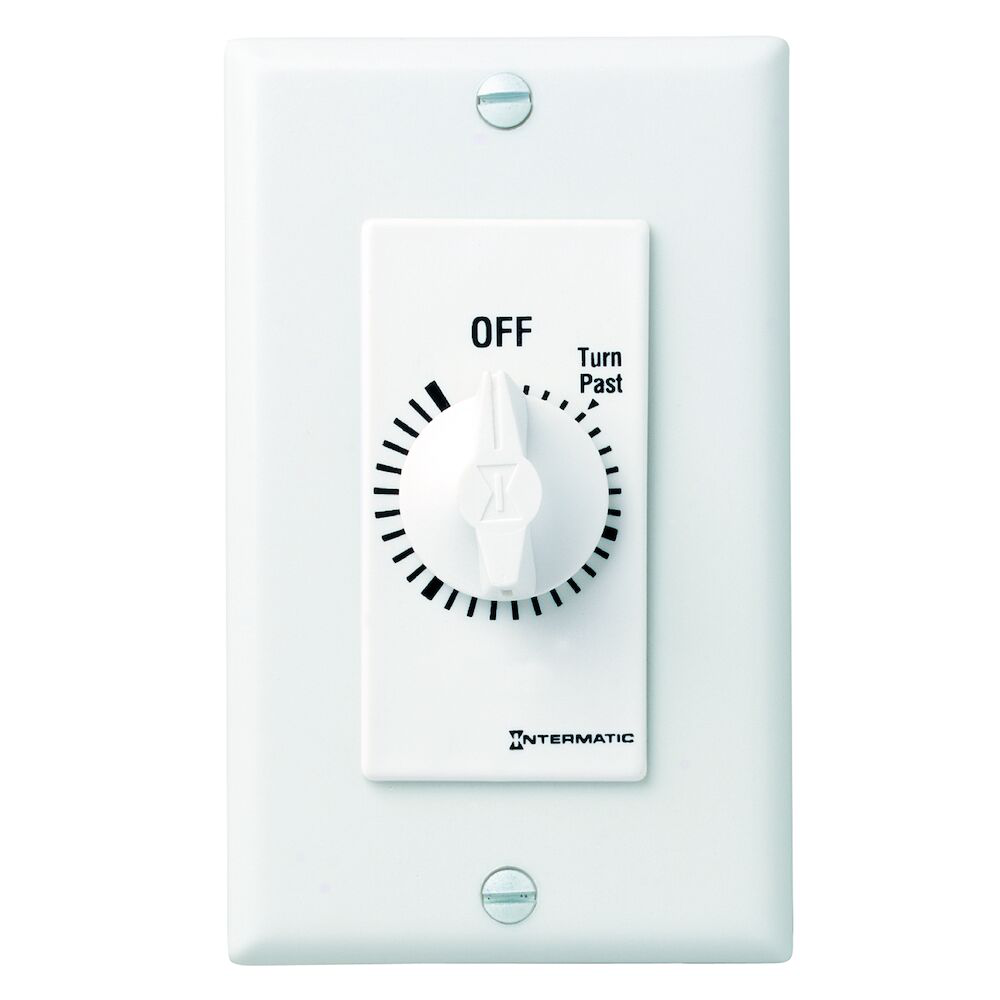

The Intermatic FD430MW is a spring wound countdown timer suitable for various applications. This timer replaces standard and decorator style wall switches. It does not require electricity for operation, allowing automatic ON time limitation for fans, lights, motors, and heaters.

• Mechanical timer with spring wound design
• Operates without electricity
• Designed for indoor and outdoor lighting control

Product Highlights

This timer is designed for easy installation and quick adjustments, making it ideal for professionals in the electrical field.

Product Information

Standard Information

• Catalog Number: FD430MW
• Brand: Intermatic

Technical Specifications

• Input Voltage: 125-277 VAC
• Amperage Rating: 15 Amp
• Contact Rating: 7 AMP @ 125 VAC (Tungsten)
• Height: 4-1/8 inches
• Width: 1.75 inches
• Depth: 1-1/4 inches
• Operating Temperature: -40 to 104 degrees F
• Mounting Type: Wall Mount
• Frequency: 50/60 Hz
• Country of Origin: Tunisia
