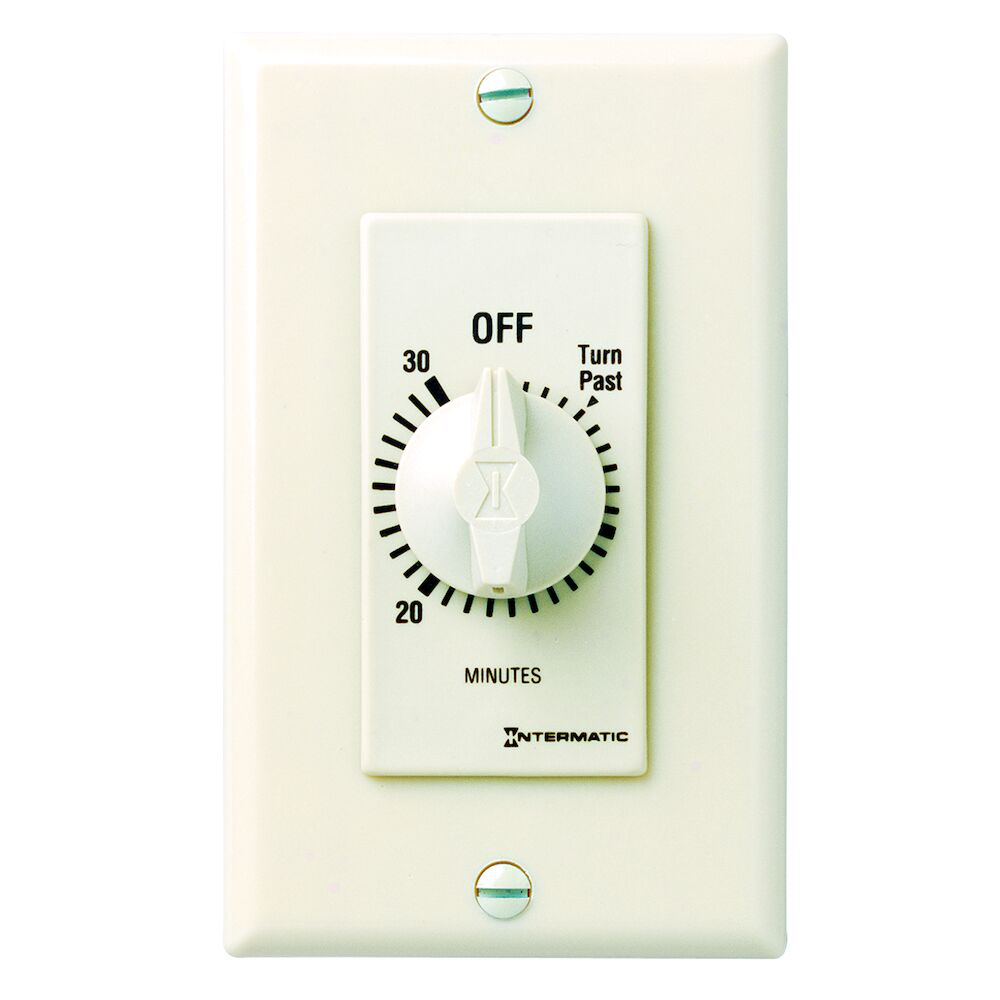

Intermatic FD30MAC Almond Countdown Timer 30 Minute 125 to 277 VAC

Product Description

The Intermatic FD30MAC is a countdown timer designed for wall switch applications. It operates on voltage ranges from one hundred twenty-five to two hundred seventy-seven volts AC and is suitable for a wide variety of devices including fans and lights. This timer is engineered to limit ON times effectively for energy conservation. It is often used for household applications and in various commercial settings.

• 30-minute countdown functionality
• No electrical connection required for operation
• Replaces standard or decorator wall switches

Product Highlights

Use the FD30MAC to automatically limit power to lighting and heating devices to save energy costs.

Product Information

Standard Information

• Catalog Number: FD30MAC
• Brand: Intermatic

Technical Specifications

• Voltage Range: 125-277 VAC
• Timer Setting: 30 minutes
• Amperage Rating: 15 A
• Mounting Type: Wall Mount
• Dimensions: 2.79 inches height x 1.6 inches width x 1.19 inches depth
• Weight: 0.2 lb
• Country of Origin: Tunisia
• Contact Form: SPST
• Operating Temperature: -40 to 104 degrees F
• Applications: Indoor use for lighting, fans, and motors
