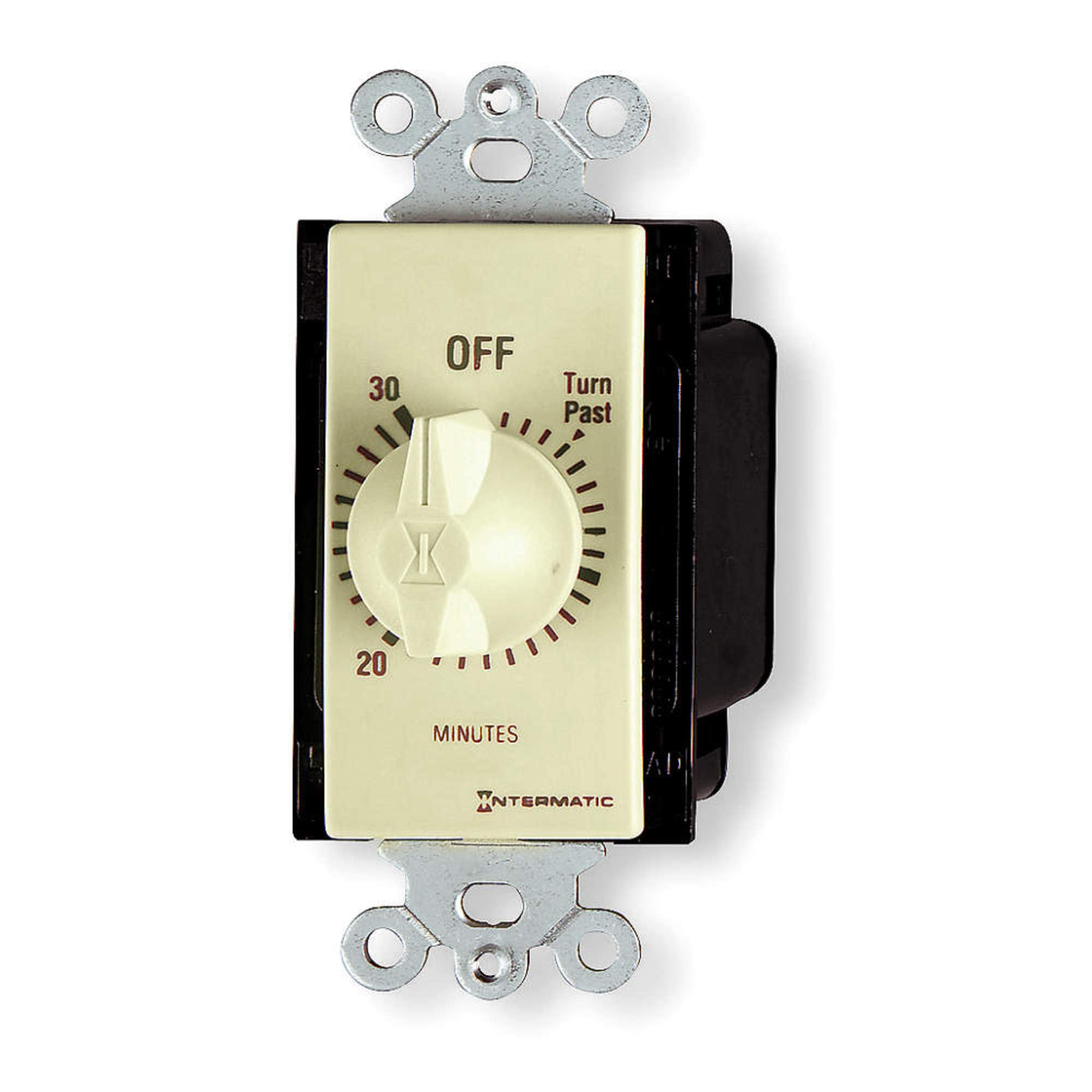

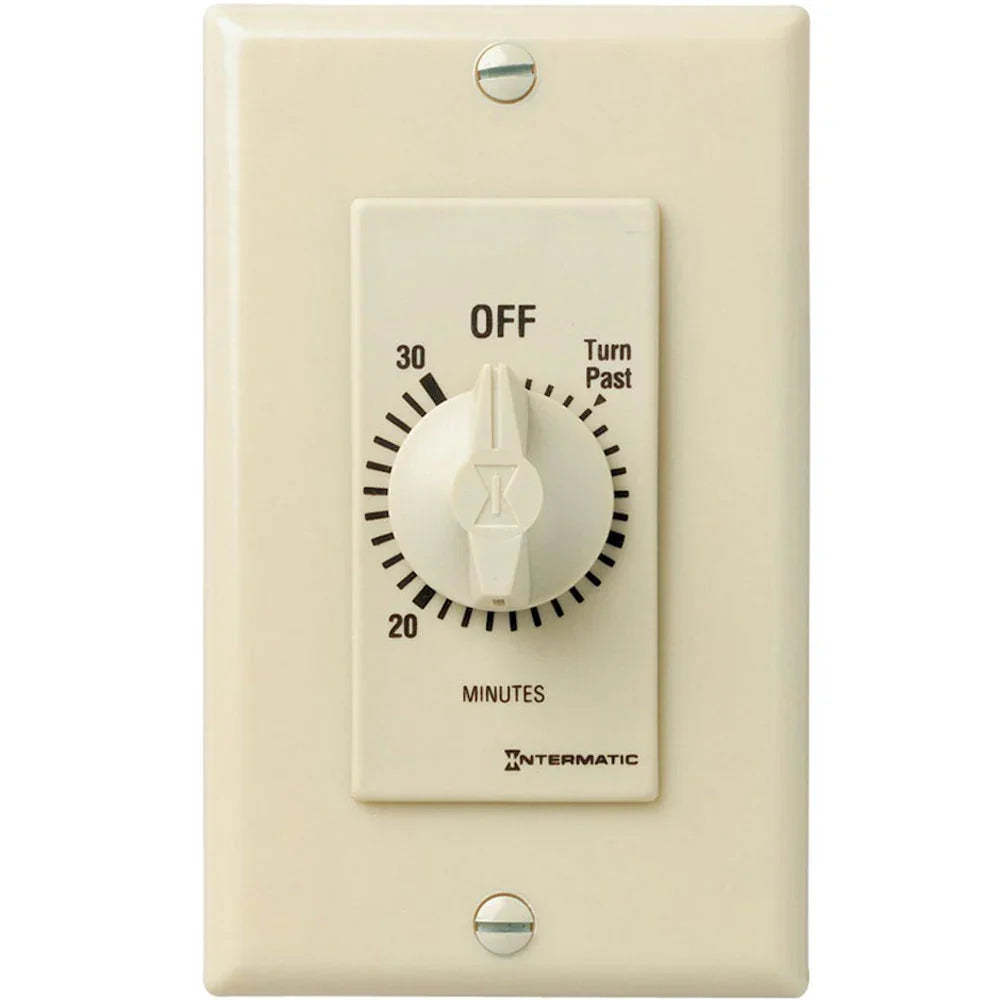

Intermatic FD30M Timer, Spring Wound 30 min

Product Description

The INTERMATIC FD30M is a spring-wound timer with a timing range of 0 to 30 minutes. This timer features a contact form of SPST and is suitable for single or multi-gang setups. It is designed to replace any standard wall switch and automatically limits the ON times for fans, lighting, motors, heaters, and other energy consuming loads.

• Timing Range 0 to 30 min
• Contact Form SPST
• No neutral connection is required

Product Highlights

The INTERMATIC FD30M spring wound timer is ideal for limiting on-times for lights, fans, motors and heaters. It has a timing range of 0-30 minutes.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: FD30M
• Country of Origin: Tunisia

Technical Specifications

• Brand: Intermatic
• Manufacturer: Intermatic
• Model / MPN: FD30M
• Item: Spring-Wound Timer
• Knob: Plastic
• HP @ 120V: 1 hp
• HP @ 240V: 2 hp
• Contact Form: SPST
• Hold Feature: No
• Timing Range: 0 to 30 min
• Faceplate Color: Ivory
• Number of Gangs: 1
• Max. Amps @ 125VAC: 20 A
• Max. Amps @ 250VAC: 10 A
• Max. Amps @ 277VAC: 10 A
• Height: 4.6"
• Length/Depth: 1.25 in
• Width/Diameter: 1.75 in
• Material: Plastic
• Mounting Type: In-Wall mount
• Function Type: SPST
• Voltage: 120-277V
• Amps Rating: 20.0 A
• Family: FD30M
• UPC: 078275005037
• Product Rating: Dry Rated
• Operation Method: Timer
