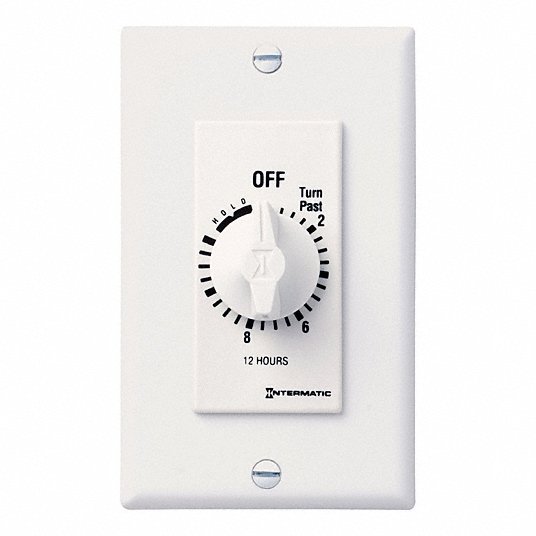

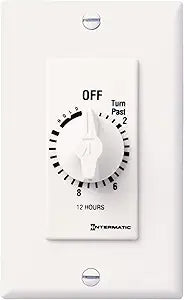

Intermatic FD12HHW 12-Hour Spring-Loaded In-Wall Timer Switch

Product Description

The Intermatic FD12HHW is a 12-hour spring-loaded in-wall timer switch. It is designed for auto-off control of fans, lights, motors, and heaters without the need for electricity. This switch is compatible with incandescent, fluorescent, CFL, and LED bulbs. The timer features a hold function that allows users to extend the ON time of connected devices when necessary.

• No electricity needed for operation
• Compatible with standard wall switches
• Automatic ON time limitation for energy efficiency

Product Highlights

Utilize this timer switch for energy management and convenience in various applications such as HVAC, lighting, and motor controls.

Product Information

Standard Information

• Color: White
• Brand: Intermatic

Technical Specifications

• Number of Settings: 2
• UPC: 078275185715
• Manufacturer: Intermatic
• Part Number: FD12HHW
• Size: 12-Hour
• Mounting Type: In-wall
• Switch Style: Toggle Switch
• Contact Form: SPST
• Current Rating: 20 A
• Horsepower @ 120V - Maximum: 1 hp
• Horsepower @ 240V - Maximum: 2 hp
• Overall Depth: 1.25 inches
• Overall Height: 4.125 inches
• Overall Width: 1.75 inches
• Wattage - Maximum: 2770 W
• Amperage Rating: 15 A
• Timer Switch Type: Mechanical
• Number of Poles: 1
• Electrical Connections: Teeter
• Temperature Rating: -40 to 104 deg F
