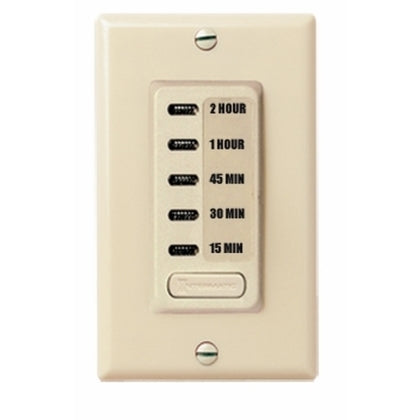

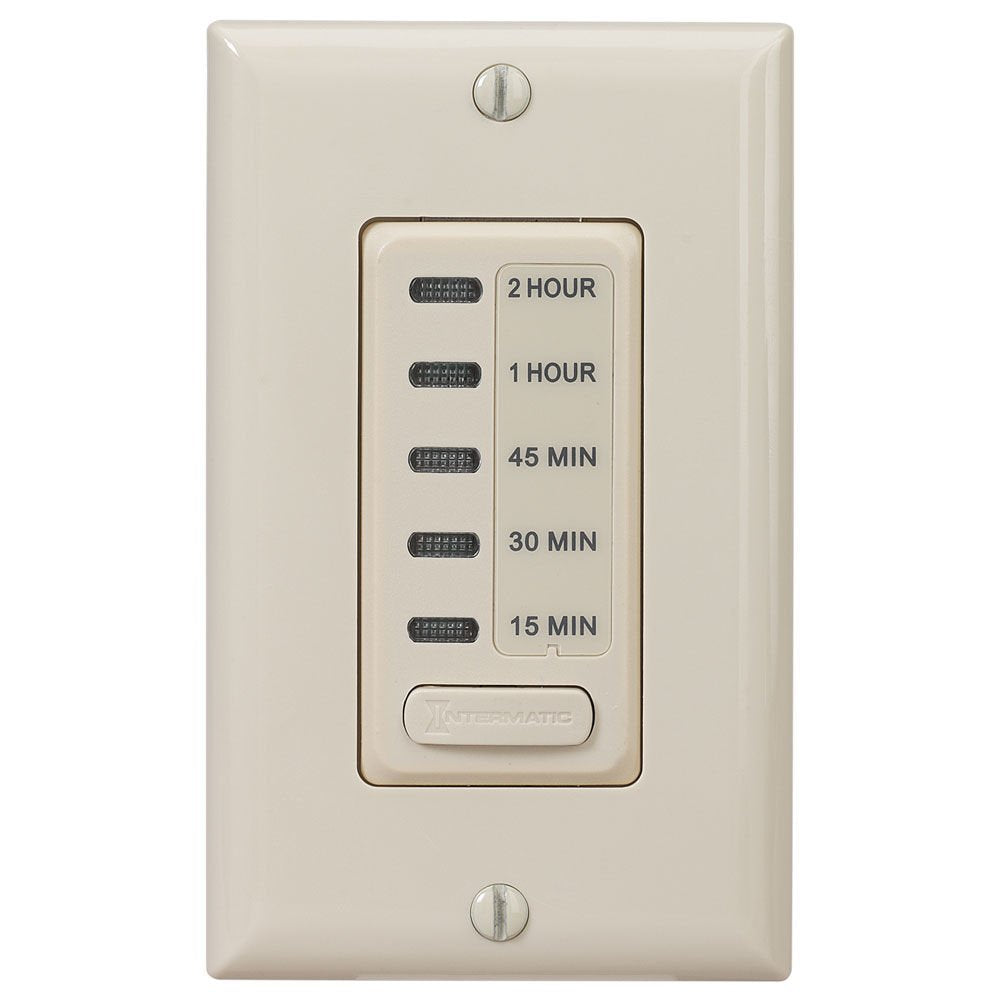

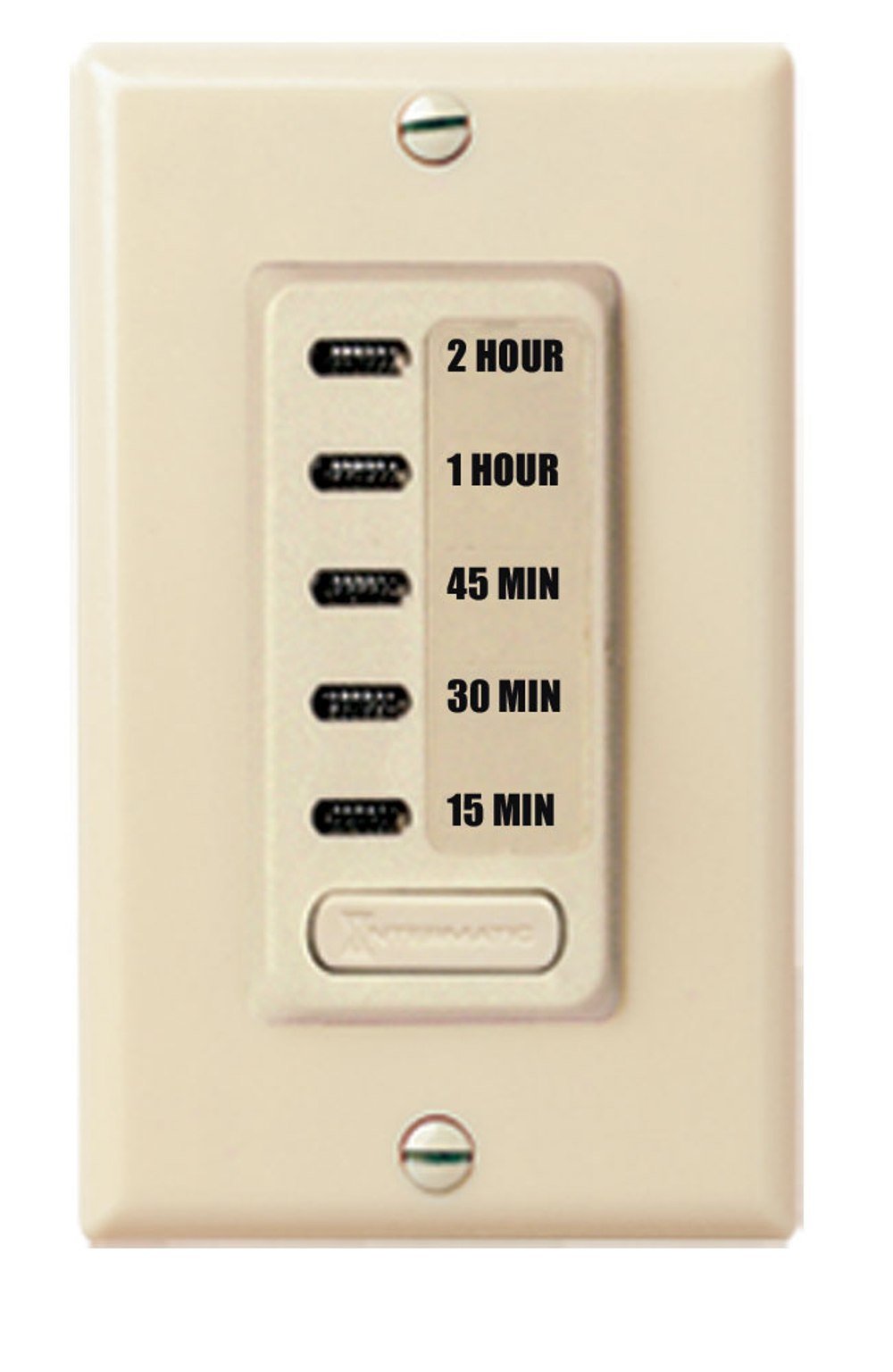

Intermatic EI235 Timer 1800 Watt 15/30/45/60 Minute

Product Description

The Intermatic EI235 is an electronic countdown auto shut-off in-wall timer designed for silent operation. This 120 Volt, 1800 Watt timer requires no complex programming; preset countdown times are activated by pressing a single button, making it ideal for various residential and commercial applications.

• Provides silent operation with preset countdown times of 15, 30, 45, and 60 minutes.
• Features single button time selection for user convenience and replaces standard single-pole switches.
• Compatible with a wide range of lighting types including incandescent, fluorescent, CFL, and LED.

Product Highlights

This CULus Listed electronic timer offers automatic shut-off control, perfect for bathroom fans, spas, hot tubs, and garage lights.

Product Information

Standard Information

• Brand: INTERMATIC
• Manufacturer Part Number: EI235

Technical Specifications

• Type: Electronic Countdown Auto Shut-Off In-Wall
• Action: SPST
• Input Voltage: 120 Volt
• Wattage: 1800 Watt
• Current Rating: 15 Amp
• Certifications: CULus Listed, California TITLE 24 Compliant, California Proposition 65
• Frequency: 50/60 Hz
• Mounting Type: Wall Mount
• Contact Rating: 8.3 AMP @ 120 VAC (Tungsten-Incandescent), 8 AMP @ 120 VAC (Ballast-Magnetic), 15 AMP @ 120 VAC (Resistive-Heater)
• Number of Poles: 1 Pole
• Contact Configuration: 1 NO
• Operating Temperature: 122 degrees F
• Min Operating Temperature: 0 degrees C
• Timer Ranges: 15/30/45/60/120 Minute
• Silent Operation: Yes
• CFL Compatible: Yes
• Replaces: Single-pole switches
• Wall Plate: Decorator-style (NOT included)
• Color: Ivory
