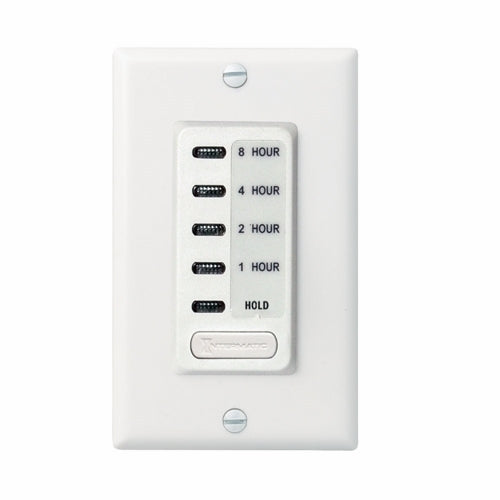

Intermatic EI220W Electronic Countdown Timer 1/2/4/8 Hour 120 VAC 60 Hz Replacement MPN

Product Description

The Intermatic EI220W is an electronic countdown timer designed for 120 volt AC applications. This timer allows for preset countdown times of one, two, four, or eight hours, all activated by a single button press. It operates silently, making it suitable for environments where noise from a mechanical timer could be disruptive. This timer is not suitable for sunlamps, saunas, or loads that could cause personal harm if timed incorrectly.

• No programming needed
• Silent operation for less disturbance
• Compatible with various types of lighting including CFL and LED

Product Highlights

Ideal for indoor use, the Intermatic EI220W timer is versatile and replaces single-pole switches efficiently. Its design includes a HOLD mode for continuous operation, and it requires a neutral connection.

Product Information

Standard Information

• Brand: Intermatic
• Catalog Number: EI220W

Technical Specifications

• Voltage: 120 Volt
• Wattage: 1800 Watt
• Amperage: 15 Amp
• Operating Temperature: 32 to 122 degrees F
• Dimensions: 2.79 in Height x 1.75 in Width x 1.44 in Depth
• Mounting Type: Wall
• Contact Configuration: SPST
• Number of Poles: 1
