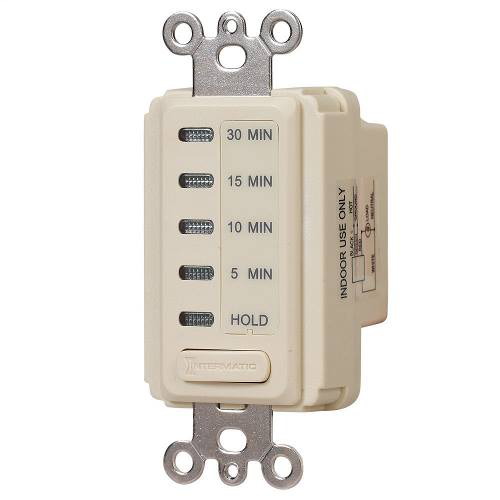

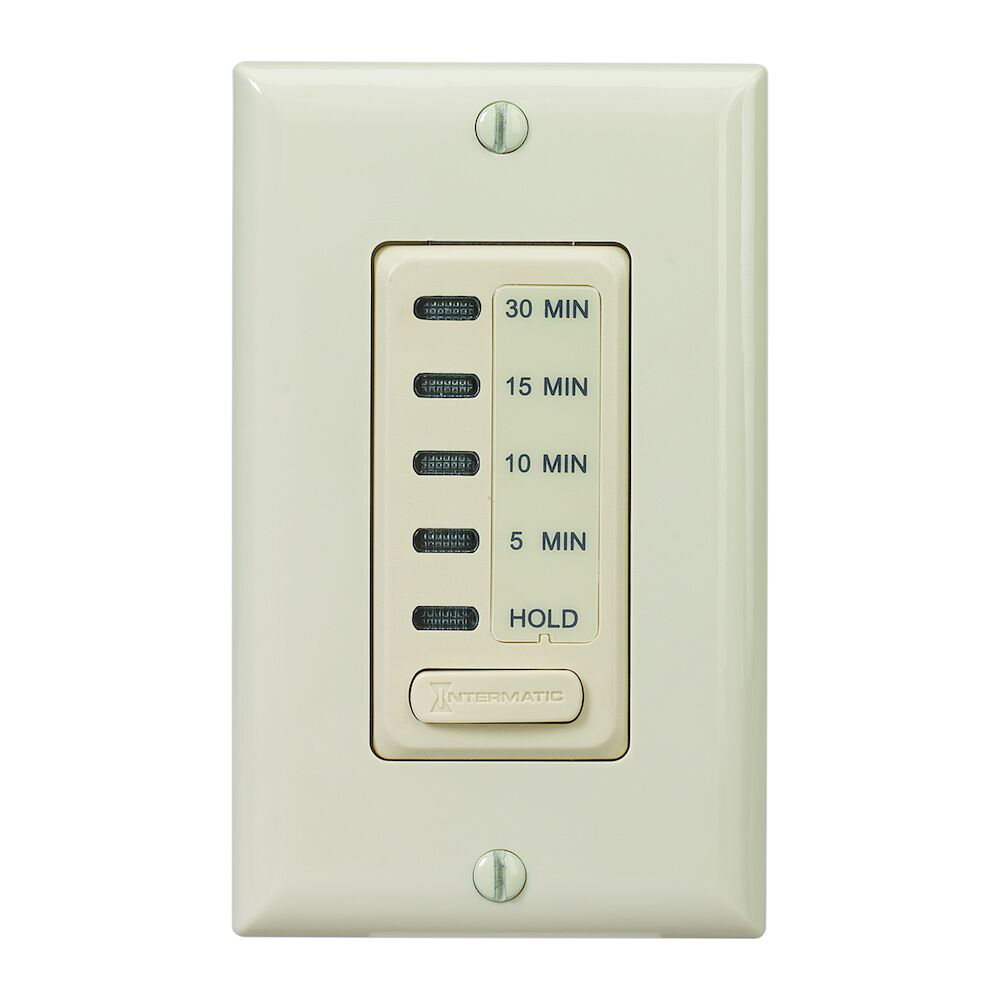

Intermatic EI200 TIMER COUNTDOWN ELEK 5/10/15/30MIN 1/2HP

Product Description

Intermatic Electronic Countdown Timer with MPN EI200 supports preset countdown times. Users can select from five, ten, fifteen, or thirty-minute settings with a simple button press. This model is designed for wall mounting and operates at 120 VAC with a maximum rating of one-half horsepower. It is suitable for various indoor applications including lighting, fans, and HVAC systems.

• No programming required
• Silent operation during countdown
• Single-button time selection

Product Highlights

The timer features easy-to-use functionality, compatible with incandescent, fluorescent, CFL, and LED lights. It requires a neutral connection and replaces standard single-pole switches in diverse applications.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: EI200

Technical Specifications

• Type: Auto Shut-Off In-Wall
• Voltage Rating: 120 VAC
• Amperage Rating: 15 A
• Dimensions: 2.79 inches H x 1.75 inches W x 1.44 inches D
• Horsepower: 1/2 hp
• Contact Form: 1NO/SPST
• Time Settings: 5/10/15/30 min
• Temperature Rating: 32 to 122 degrees F
• Mounting Type: Wall
