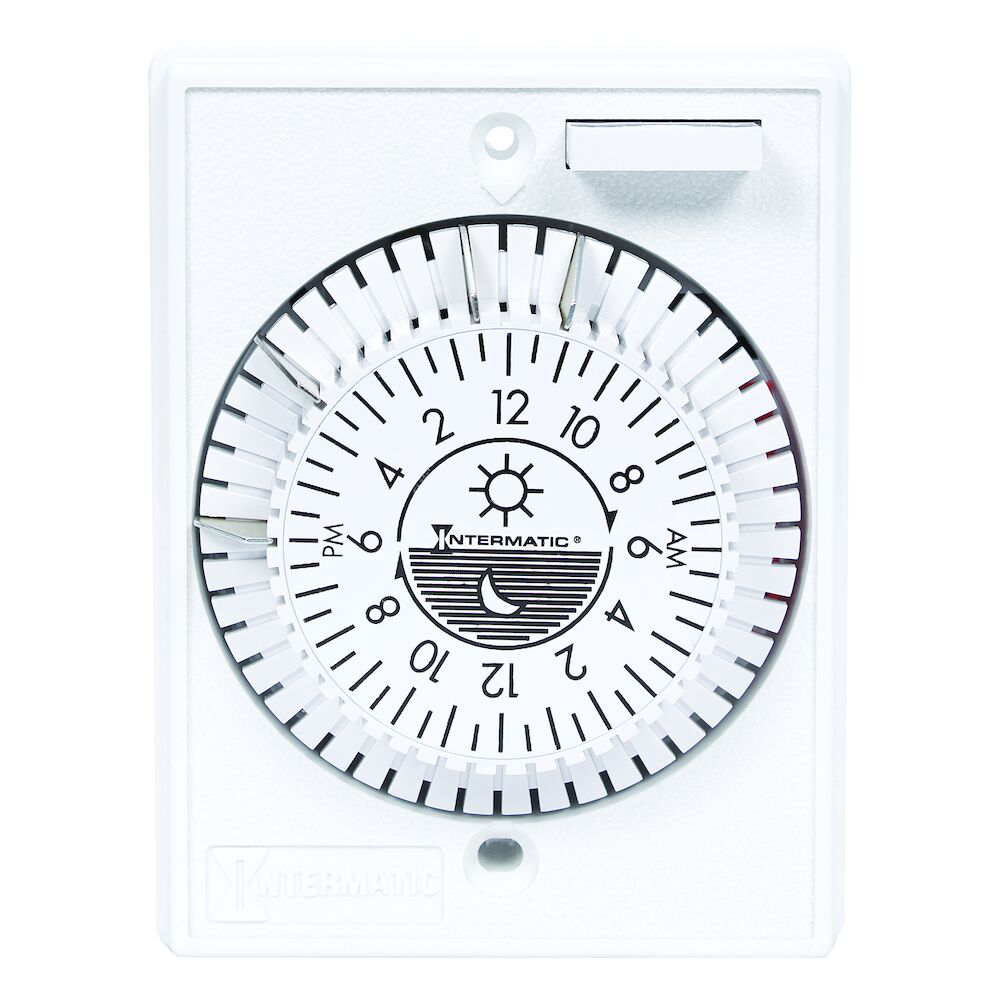

Intermatic E1020 Heavy Duty Mechanical Timer 15 Amps 125 Volts White

Product Description

The Intermatic E1020 Heavy-Duty Mechanical Timer is designed to handle the switching of lights, fans, pumps, and other heavy-duty loads. This 125-volt, 15-amp timer is equipped with multiple programmable settings for energy savings and security. The easy-to-use design ensures reliable control of your electrical devices over a 24-hour period.

• Includes two ON/OFF trippers and can accommodate up to 12 ON/OFF trippers
• Programmable in 30-minute intervals
• Requires a neutral connection

Product Highlights

The Intermatic E1020 timer is ideal for a variety of applications such as air movement, indoor and outdoor lighting control, and ventilation. It helps in precise scheduling of electrical devices, enhancing energy savings and security.

Product Information

Standard Information

• Product Type: Mechanical Timer
• Brand: Intermatic
• Manufacturer: Intermatic, Inc.
• Country of Origin: Mexico

Technical Specifications

• Voltage: 125 V
• Wattage: 1800 W
• Amperage: 15 A
• Contact Configuration: 1 NO
• Number of Poles: 1
• Max Operating Temperature: 25 degrees C
• Min Operating Temperature: -20 degrees C
• Dimensions: 4-1/4 inches H x 3-1/4 inches W x 1-3/8 inches D
• Weight: 0.76 lb
• Certification: cCSAus Certified
