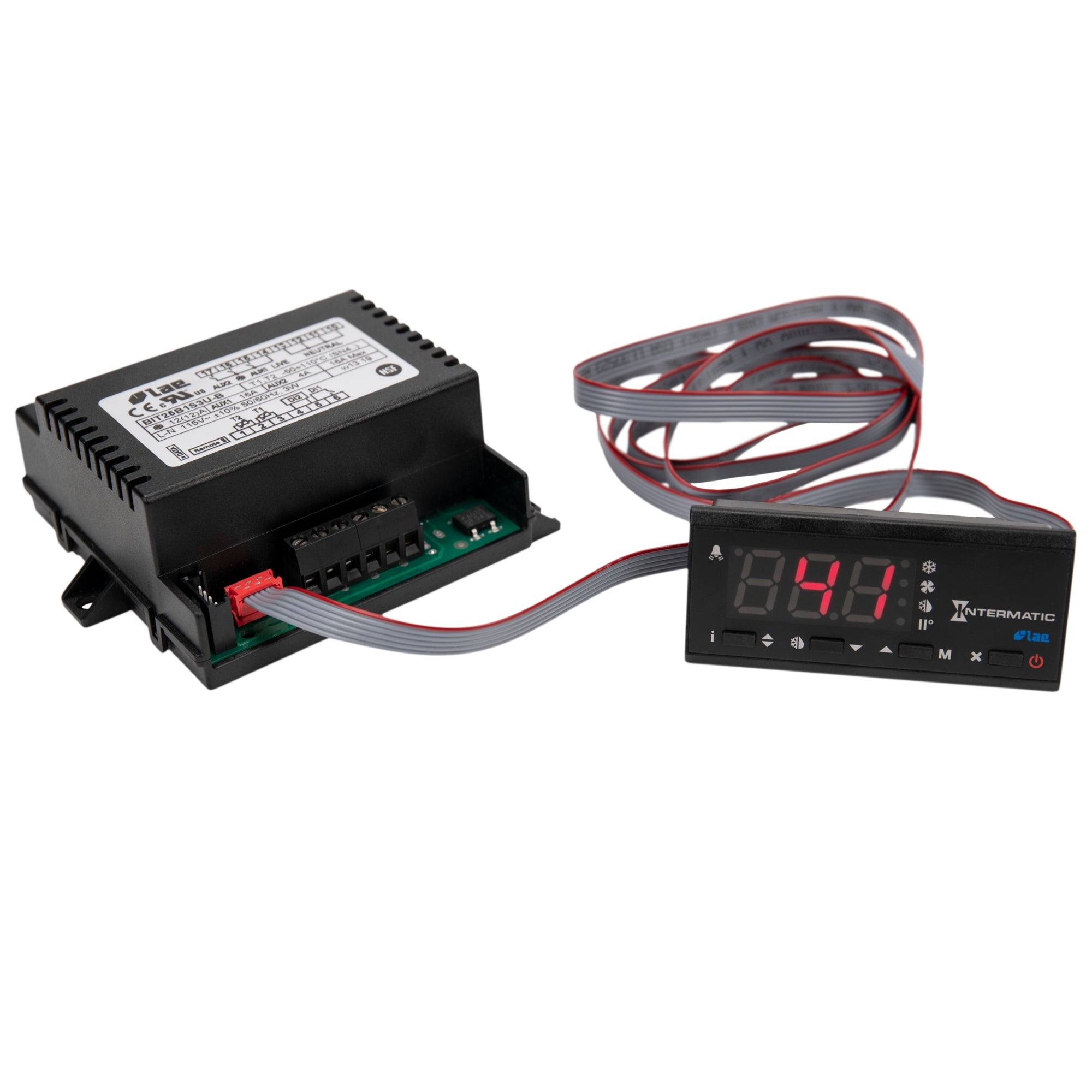

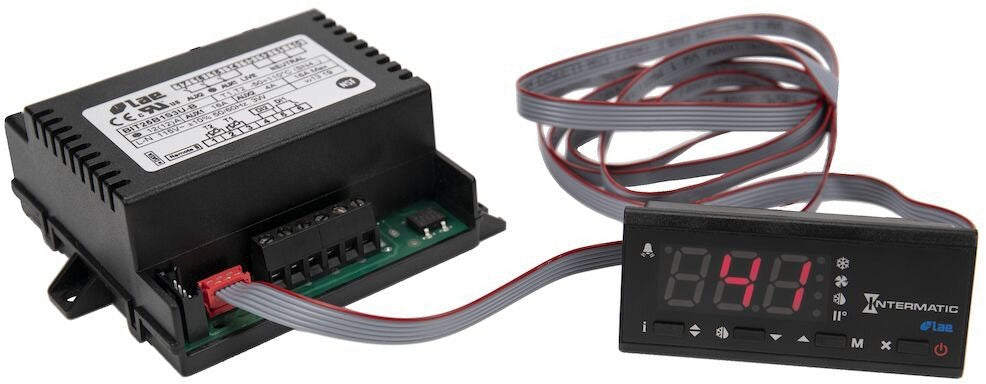

Intermatic BIT25-B1S3W-BI Refrigeration Controller 110-240 Vac (DIN mount)

INTERMATIC
Brand: INTERMATIC
SKU: BIT25-B1S3W-BI
Availability: Out Of Stock
$147.34
$147.34
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Intermatic BIT25-B1S3W-BI is a refrigeration controller that provides temperature regulation and monitoring for commercial refrigeration equipment. It accepts two NTC/PTC sensors and one digital input, supports 110-240 Vac power, offers RS485 communications, and features screw terminal connections. The controller includes three relay outputs for compressor and auxiliary control, an IP55 front enclosure rating, and is suitable for propane applications.

  • Supports 2 NTC/PTC sensor inputs and 1 digital input with RS485 communication
  • 110-240 Vac power supply; three relay outputs (compressor and auxiliaries) with rated loads
  • DIN panel mount, IP55 front enclosure, operating range -10 to 50 C (14 to 122 F)

Product Highlights

3-relay refrigeration controller with RS485, screw terminals, propane suitability

Product Information

Standard Information

  • Brand: INTERMATIC
  • Manufacturer Part Number: BIT25-B1S3W-BI
  • Country of Origin: Italy
Technical Specifications
Brand
Intermatic
Manufacturer Part Number
BIT25-B1S3W-BI
Model
BIT25-B1S3W-BI
Product Type
Refrigeration controller
Sensor Inputs
2 NTC/PTC sensors (NTC 10K Ohm @ 25 C)
Digital Inputs
1 digital input (DI1)
Number of Relays
3
Input Voltage
110-240 Vac, 50/60 Hz
Voltage Selection Type
Auto voltage
Current Rating
Compressor: 12 A at 240 Vac; Auxiliary 1: 16 A at 240 Vac (resistive); Auxiliary 2: 4 A at 240 Vac (resistive)
Terminals
Screw terminals
Communication
RS485 serial
Display Type
Digital LED (display sold separately)
Defrost Indicator
Red LED
Enclosure Rating
IP55 (front)
Mounting Type
DIN mount
Operating Temperature
-10 to 50 C (14 to 122 F)
Storage Temperature
14 to 122 F (note: storage range matches operating range in provided data; this is unusual but retained)
Operating Humidity
0 to 80% RH, non-condensing
Measurement Range
-50 to 110 C (-58 to 180 F)
Measurement Accuracy
< 0.5 C within measurement range
Dimensions (WxHxD)
87 x 83 x 40 mm (3.43 x 3.27 x 1.58 in) [validated conversion]
Weight
1.00 lb (454 g) [validated conversion]
Wire Size Max
#10 AWG
Minimum Cycle Time
1 min
Electrical Life
100,000 operations at full load
Approvals and Certifications
Title 24 compliant; NSF; UL (US & Canada); RoHS
Country of Origin
Italy
UPC
078275150935
GTIN
00078275150935
