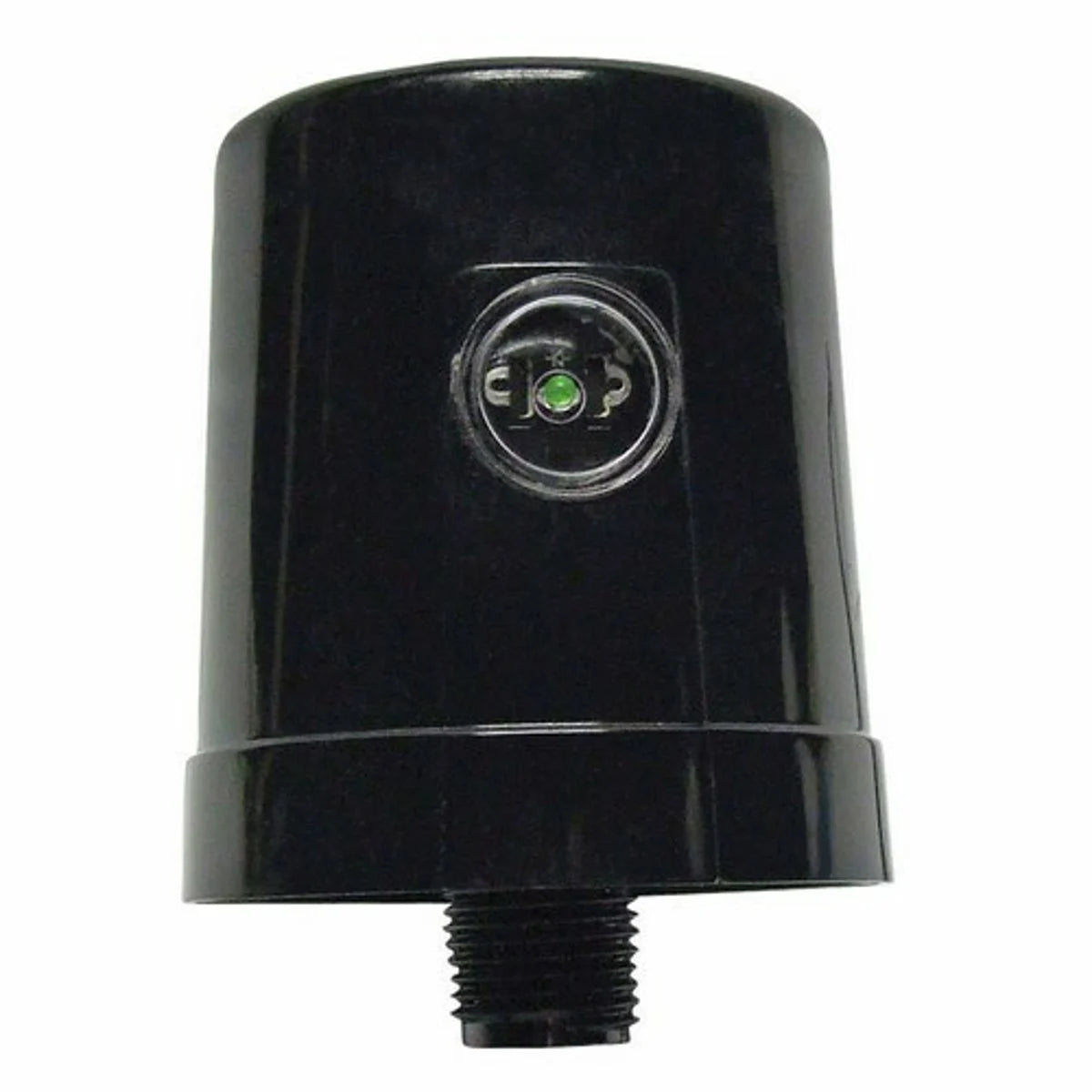

Intermatic AG6503C3 DEVICE PROT SRG 347/600VAC 50/60HZ

Product Description

The Intermatic Surge Protective Device AG6503C3 is suitable for electrical systems rated at three hundred forty-seven to six hundred volts. Designed for use in Type 1 and Type 2 applications, it ensures the reliable protection of outdoor installations such as irrigation equipment and HVAC controls.

• 347/600 VAC rating
• 50 kA short circuit current rating
• Green LED protection indicator

Product Highlights

The AG6503C3 features advanced TPMOV surge protection technology that provides superior reliability compared to standard MOV devices.

Product Information

Standard Information

• Manufacturer: Intermatic
• Part Number: AG6503C3

Technical Specifications

• Electrical Ratings: 347/600 VAC
• Operating Temperature: -13 to 140 degrees F
• Number of Poles: 3
• Number of Wires: 4
• Short Circuit Current Rating: 50 kA
• Nominal Discharge Current: 20 kA
• Material: Polycarbonate
• Enclosure Type: NEMA 1/2/4/4X
• Warranty: 1 Year Limited
