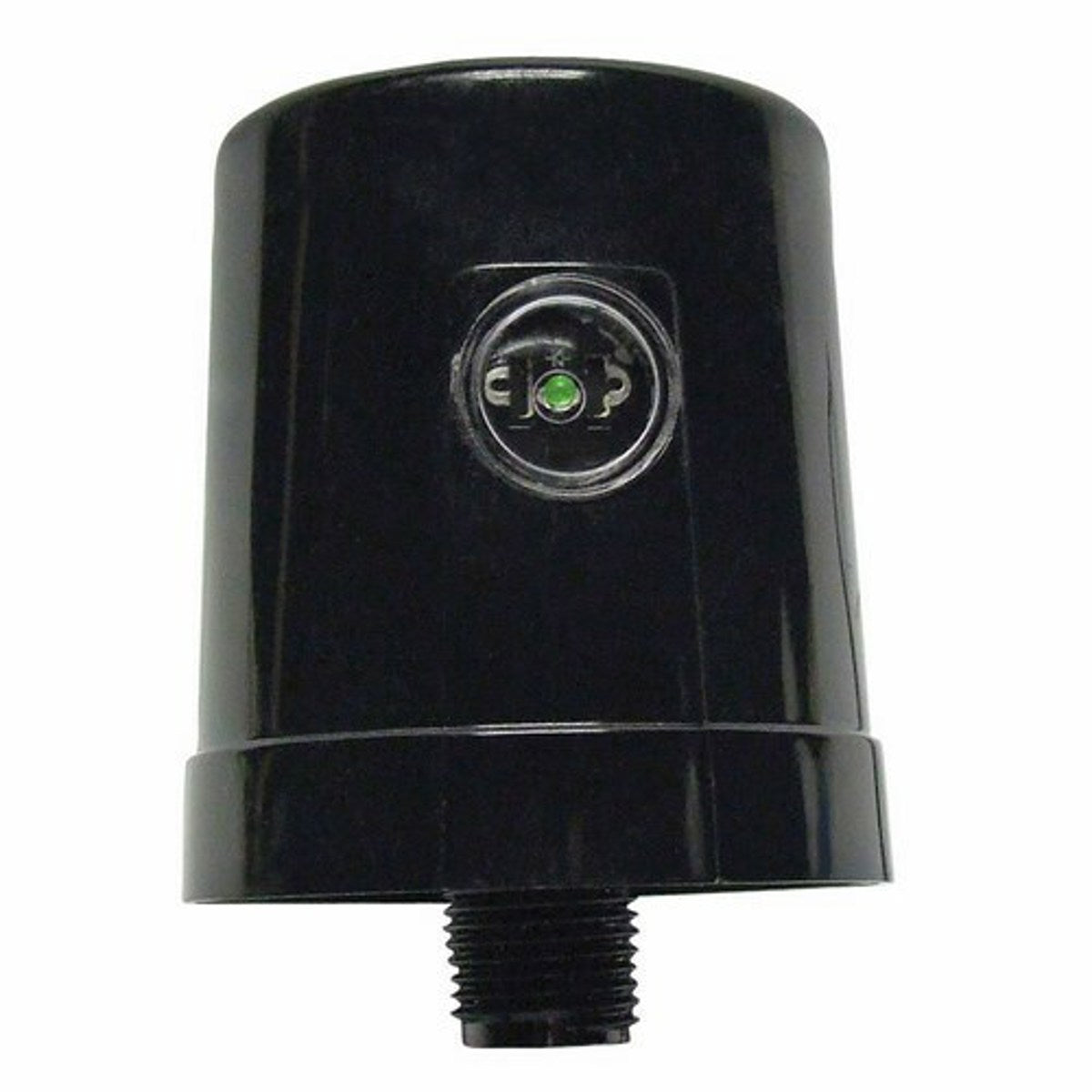

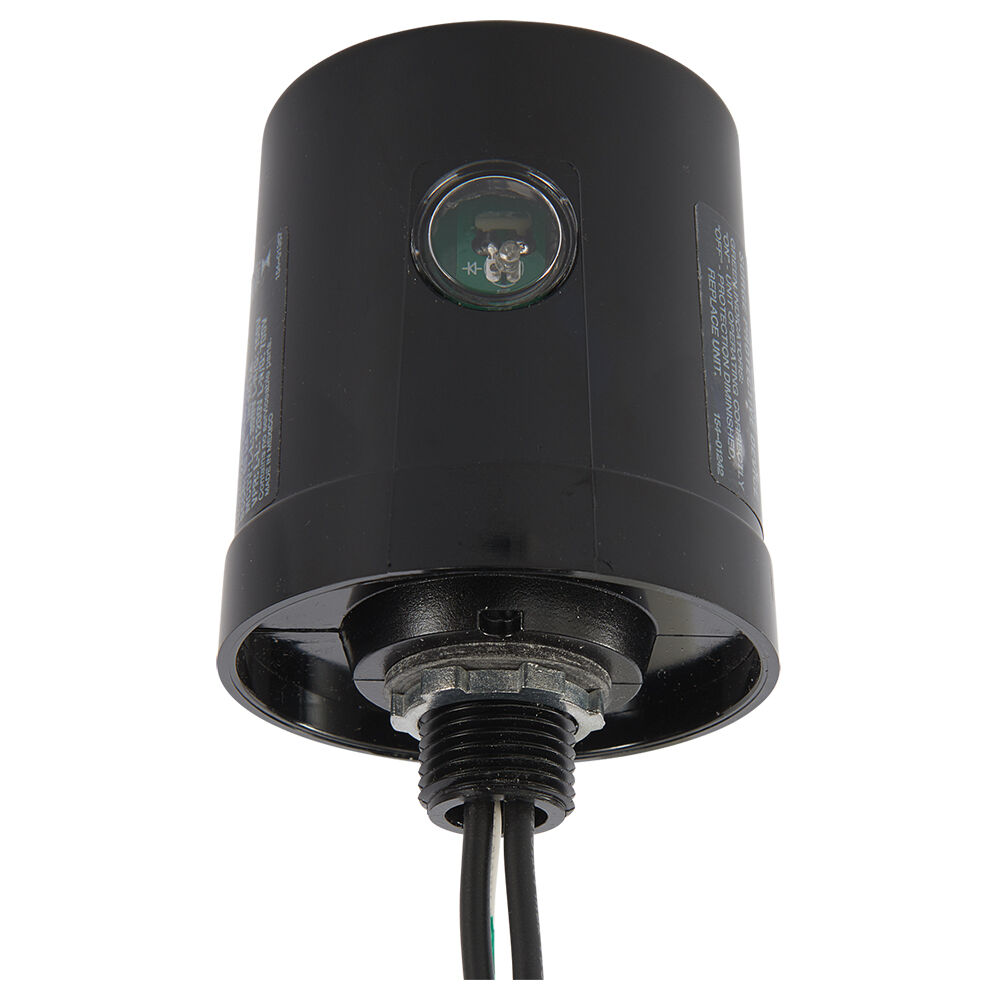

Intermatic AG4803C3 Surge Protective Device 277/480VAC

Product Description

The Intermatic AG4803C3 Surge Protective Device is designed for electrical systems running at 277/480 volts. This device is essential for protecting equipment against damaging voltage spikes. It is suitable for various applications, particularly in commercial and industrial setups.

• High voltage rating of 277/480VAC.
• Designed for Type 1 and Type 2 outdoor installations.
• Green LED indicator for real-time surge protection status.

Product Highlights

This surge protector is engineered to maintain the longevity of connected equipment by mitigating transient voltage surges. It features a UV-resistant polycarbonate housing and complies with CSA and UL standards for safety and reliability.

Product Information

Standard Information

• Brand: Intermatic
• Manufacturer Part No: AG4803C3

Technical Specifications

• Electrical Rating: 277/480VAC
• Frequency Rating: 50/60 Hz
• Number of Poles: 3
• Number of Wires: 4
• Operating Temperature: -13 to 140 degrees Fahrenheit
• Material: Polycarbonate
• Nominal Discharge Current: 20 kA
• Short Circuit Rating: 50 kA
• Enclosure Type: NEMA 1/2/4/4X
• Modes of Protection: L-L/L-G/L-N
