Product Description

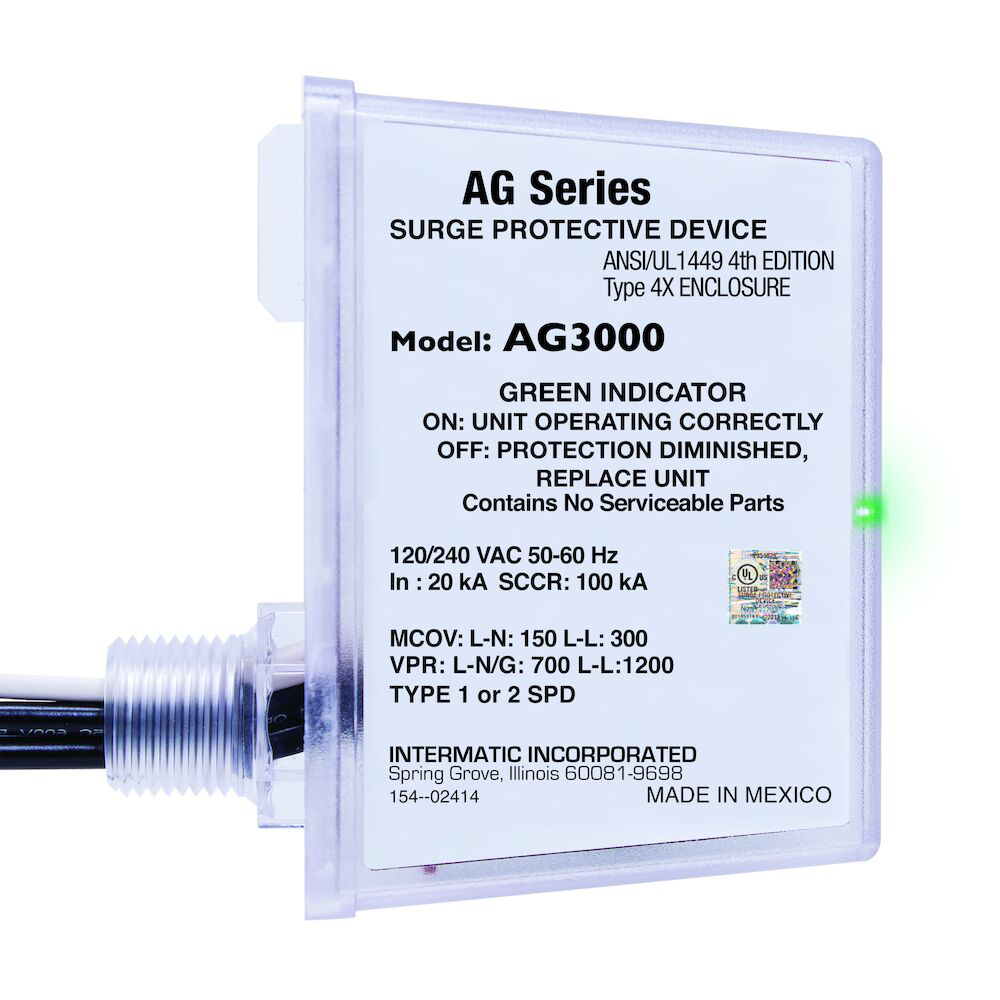

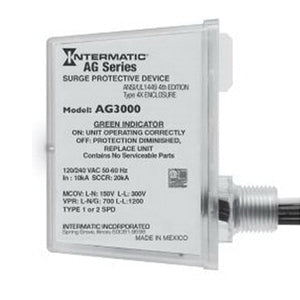

The Intermatic AG3000 is a surge protective device designed for HVAC applications. This device operates at a voltage rating of 120/240 VAC and provides crucial protection for air conditioning units, heat pumps, and mini-splits. The AG3000 features state-of-the-art TPMOV technology to manage power surges effectively.
- Three modes of protection: Line-Ground, Line-Line, Line-Neutral.
- Green LED indicator for status monitoring.
- Type 4X enclosure for outdoor use.
Product Highlights
The AG3000 provides a strong defense against electrical surges, safeguarding your HVAC system and extending the lifespan of your equipment. It is easy to install and compatible with both Type 1 and Type 2 applications.
Product Information
Standard Information
-
Brand: Intermatic
-
MPN: AG3000
Technical Specifications
-
Voltage Rating: 120/240 VAC
-
Amperage Rating: 10 kA nominal discharge, 20 kA short circuit current
-
Frequency Rating: 50/60 Hz
-
Number of Poles: 3
-
Dimensions: 4.25 inches width, 4.5 inches height, 2 inches depth
-
Warranty: 3 years with $7,500 connected equipment coverage
-
Country of Origin: Mexico
