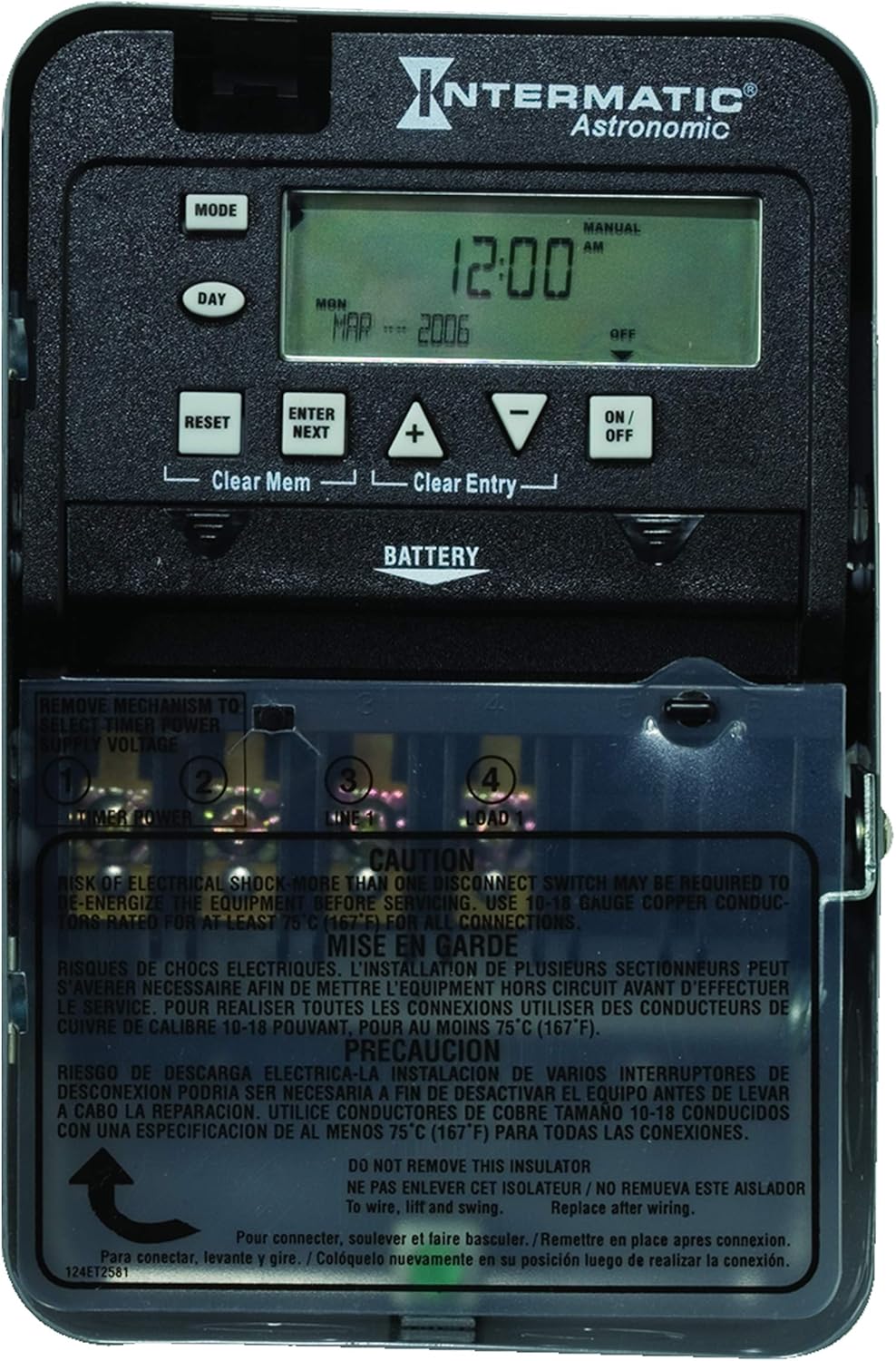

Intermatic ET8015C 7-Day 30-Amp SPST Electronic Astronomic Time Switch, 120-277 VAC, NEMA 1

Product Description

The Intermatic ET8015C is a 7-day electronic time switch designed for controlling electrical loads with up to thirty amps at voltages between one hundred twenty and two hundred seventy-seven VAC. This timer features independent daily programming and can automate lighting and machinery according to specific schedules.

• 7-day programmable timer for flexible scheduling
• Up to twenty-eight ON/OFF events per circuit
• Easy-to-use interface with a selector switch for voltage input

Product Highlights

This electronic timer provides accurate load control and energy savings through programmable schedules. It features an intuitive operation and a durable NEMA 1 enclosure to protect against unauthorized access.

Product Information

Standard Information

• Brand: Intermatic
• MPN: ET8015C

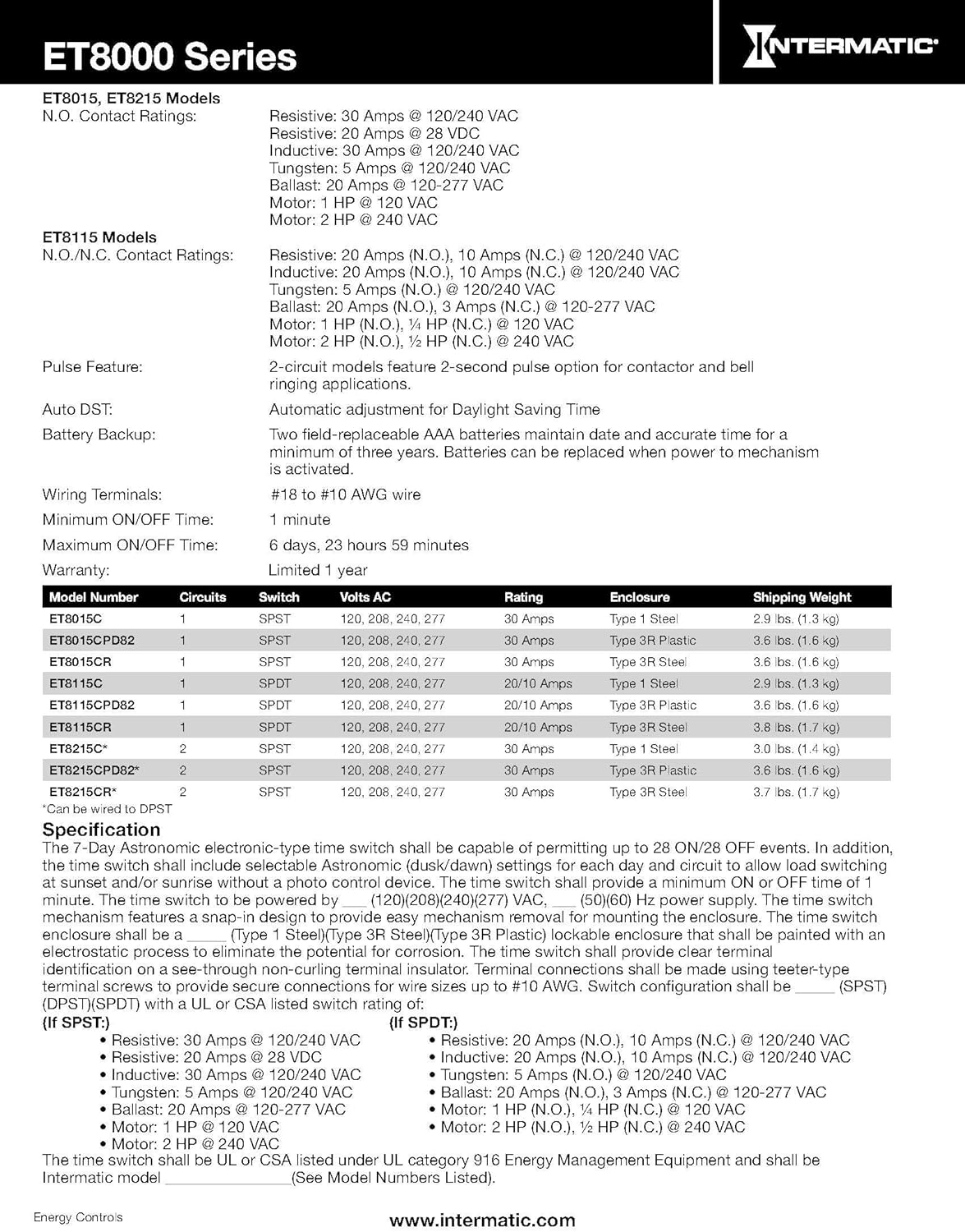

Technical Specifications

• Voltage Rating: 120-277 VAC
• Amperage Rating: 30 A
• Operation Mode: 7 days
• Number of Poles: 1

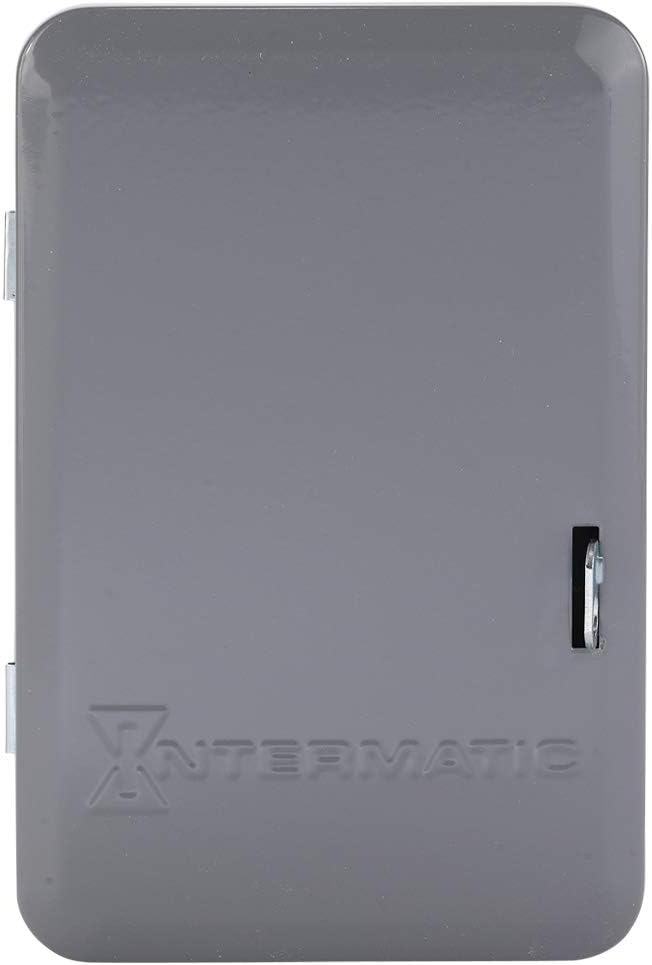

• Enclosure Type: NEMA 1
• Temperature Rating: -40 to 155 degrees F
• Dimensions: 200 mm H x 130.2 mm W x 87.3 mm D
• Backup Device: 2 AAA batteries included
