Ingersoll Cutting Tools 2946129 Thread Mill 5/16 Inch

Product Description

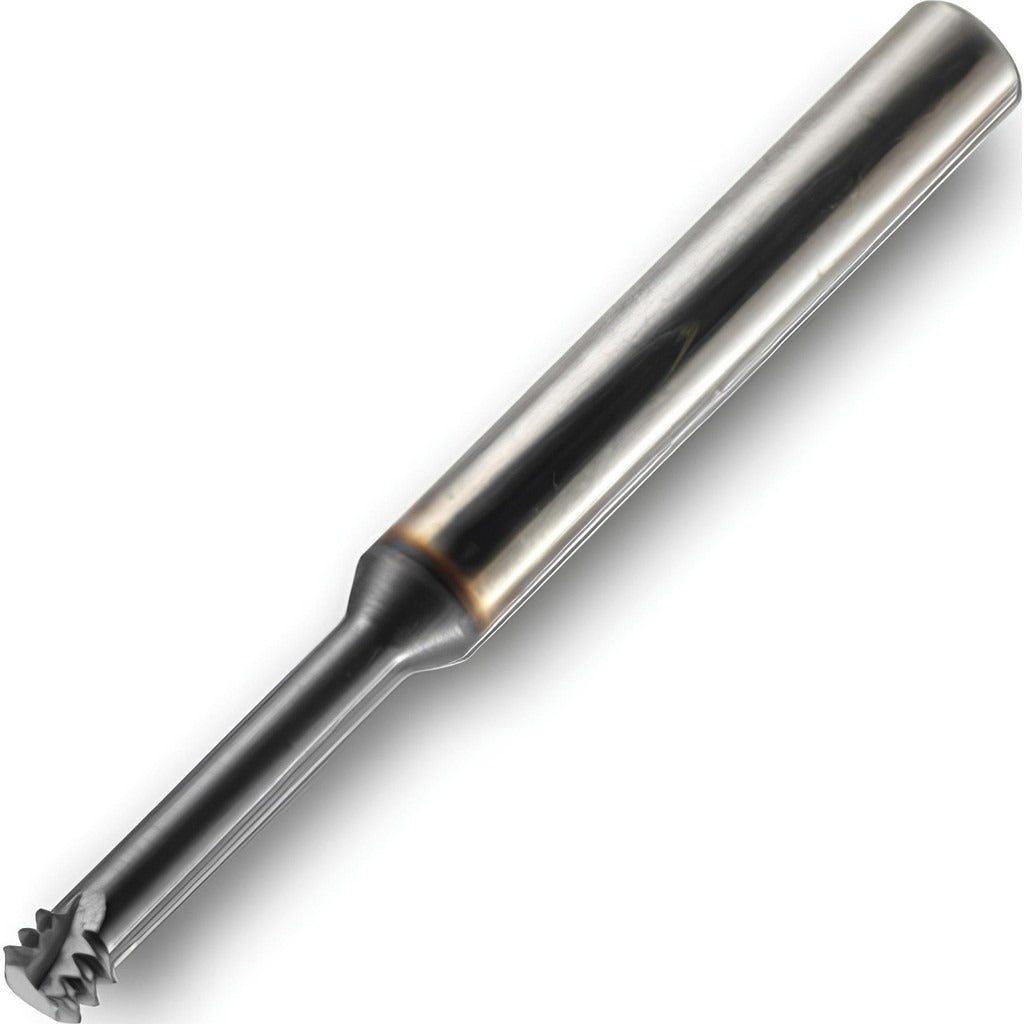

The INGERSOLL CUTTING TOOLS 2946129 is a solid carbide helical flute thread mill designed for single-point thread milling operations in machining centers and CNC mills. Built from IN2005-grade solid carbide and coated with TiAlN for heat and wear resistance, this tool cuts UN-standard threads at 5/16 inch thread size with 18 teeth per inch. The 3-flute, right-hand helical design provides smooth chip evacuation and accurate thread form. With a long-reach configuration and 0.9100-inch length of cut, it handles threads in deeper bores where standard-length tooling cannot reach. Machinists, tool and die makers, and CNC operators are the primary users of this tool.

This thread mill is suited for threading operations in ferrous and non-ferrous materials where conventional tapping is not practical or where a single tool must produce multiple thread sizes in the same diameter family. The long-reach geometry makes it appropriate for aerospace, automotive, and general precision machining applications where bore depth demands extended tool projection. It mounts via a straight cylindrical shank and fits standard collet chucks or milling tool holders sized for 0.2500-inch shank diameter.

Key Features

• Solid carbide IN2005 grade construction for rigidity and wear life in demanding materials
• TiAlN coating provides high-temperature resistance and extends tool life in dry or semi-dry cutting
• 3-flute right-hand helical geometry supports efficient chip removal and stable cutting forces
• Long-reach design with 1.5900-inch shank length enables threading in deep or obstructed bores
• UN thread standard compatibility at 18 teeth per inch for 5/16 inch thread size
• Straight-cylindrical shank for secure clamping in collet chucks or shrink-fit holders

Compatibility

Designed as an OEM-style thread milling tool for CNC machining centers capable of helical interpolation, compatible with tool holders accepting a 0.2500-inch straight cylindrical shank.

Installation Notes

Thread milling with this tool requires a CNC machining center programmed for helical interpolation. Ensure the spindle and tool holder are free of runout before use, as excessive runout degrades thread quality and shortens tool life. Confirm the machine is at a complete stop and spindle power is off before loading or removing the tool from the holder. Coolant-through is not supported on this tool, so external coolant or minimum quantity lubrication should be directed at the cutting zone when required by the workpiece material.
