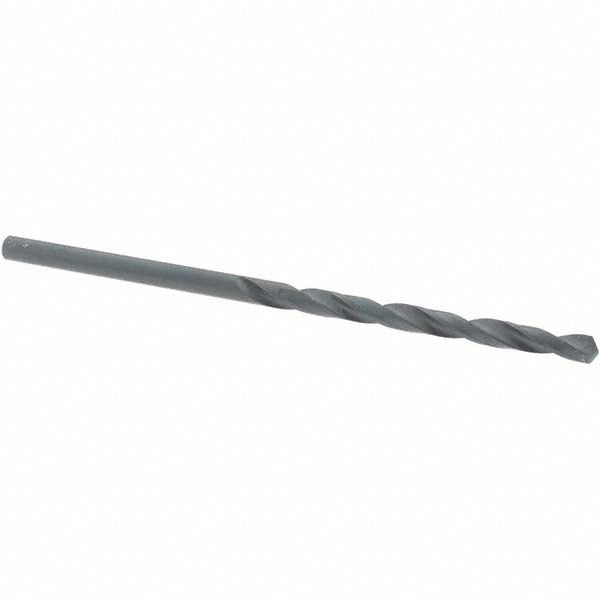

Import KP65075 Jobber Drill Bit No. 34 Hss Oxide

Product Description

The IMPORT KP65075 is a jobber-length drill bit sized to wire gauge No. 34, with a decimal diameter of 0.1110 inches. Manufactured from high-speed steel (HSS) with an oxide finish for basic lubricity and corrosion resistance, this bit features a standard 118-degree split point and spiral flute geometry with a web-thinned, tapered web configuration. Overall length is 2.625 inches with a flute length of 1.5 inches. The straight-cylindrical shank seats directly into standard drill chucks. General-purpose grade, suited for production or service use in metal, plastic, and composite materials.

This is a general-purpose jobber-length drill bit designed for light metal fabrication, maintenance, and repair applications. The No. 34 wire size and 0.1110-inch diameter are commonly called out for tapping, clearance holes, and close-tolerance work across HVAC, plumbing, and electrical rough-in tasks. Right-hand spiral flute geometry evacuates chips efficiently during through-hole drilling in thin-gauge sheet metal and structural components. Sold as a single unit.

Key Features

• Wire gauge No. 34 diameter: 0.1110 inches for precise hole sizing
• 118-degree standard point angle with web-thinned, tapered web for reduced thrust and clean entry
• High-speed steel construction for durability across ferrous and non-ferrous materials
• Oxide coating provides light lubricity and basic surface protection
• Regular spiral flute with right-hand cut for efficient chip evacuation
• Straight-cylindrical shank compatible with standard three-jaw drill chucks

Compatibility

Designed as a general-purpose replacement or stock bit for use in any standard drill chuck accepting a 0.1110-inch straight-cylindrical shank.

Installation Notes

Install in a hand drill or drill press with an appropriately sized chuck; verify chuck jaws are fully tightened before use. Use cutting fluid when drilling hardened steel or stainless to extend bit life. Operate at manufacturer-recommended speeds for the material being drilled — lower RPM for harder metals, higher RPM for thin sheet. Wear appropriate eye protection per OSHA guidelines when drilling metal.
