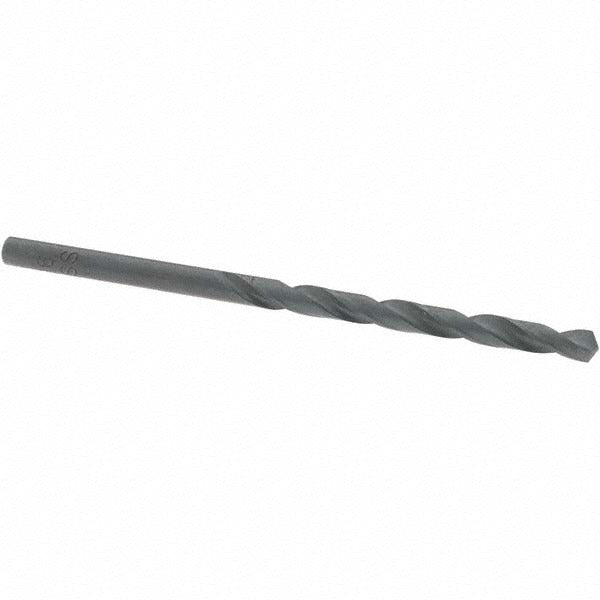

Import KP65067 Jobber Drill Bit Wire 26 Hss Oxide

Product Description

The IMPORT KP65067 is a jobber-length drill bit sized to wire gauge 26, with a decimal diameter of 0.1470 inches. Built from high speed steel with an oxide coating, this bit is designed for general-purpose drilling in metal, plastic, and similar materials. It features a 118-degree standard point angle, a regular spiral flute, and a straight-cylindrical shank that seats securely in standard drill chucks. The web-thinned, tapered web configuration reduces the force needed to start a hole and improves chip clearance. Machinists, maintenance technicians, and trade professionals reach for this size when working with small-diameter fastener clearance holes or pilot holes in light fabrication work.

This bit is suited for bench drill press work, hand drill applications, and light-duty CNC or manual machining operations where a wire-gauge drill is required. The 3-inch overall length and 1-7/8-inch flute length make it practical for through-hole drilling in sheet metal, thin plate, and similar stock. Right-hand cutting direction means it works with standard clockwise-rotating spindles. The oxide finish provides a measure of lubricity and corrosion resistance during storage and use.

Key Features

• Wire size 26 with 0.1470-inch decimal diameter for precise small-hole drilling
• 118-degree standard point angle with web-thinned, tapered web for easier penetration
• High speed steel construction handles general-purpose drilling across common materials
• Oxide coating improves lubricity and provides basic corrosion resistance
• Regular spiral flute with right-hand cut for use in standard clockwise spindles
• Straight-cylindrical shank fits standard 3-jaw drill chucks without adapters

Compatibility

Designed as a general-purpose replacement or stock drill bit for applications requiring a wire gauge 26 diameter hole, compatible with any standard drill press, hand drill, or CNC spindle accepting a straight-cylindrical shank of 0.1470 inches.

Installation Notes

Secure the straight-cylindrical shank fully in the drill chuck before operation and verify chuck key is removed before powering the spindle. Use appropriate cutting fluid or lubricant when drilling ferrous metals to extend bit life and reduce heat buildup. Operators should wear eye protection in accordance with applicable shop safety standards. Inspect the cutting edges before each use and replace the bit if chipping or excessive wear is observed.
