Import KP65063 Jobber Drill Bit No. 22 Hss Oxide

Product Description

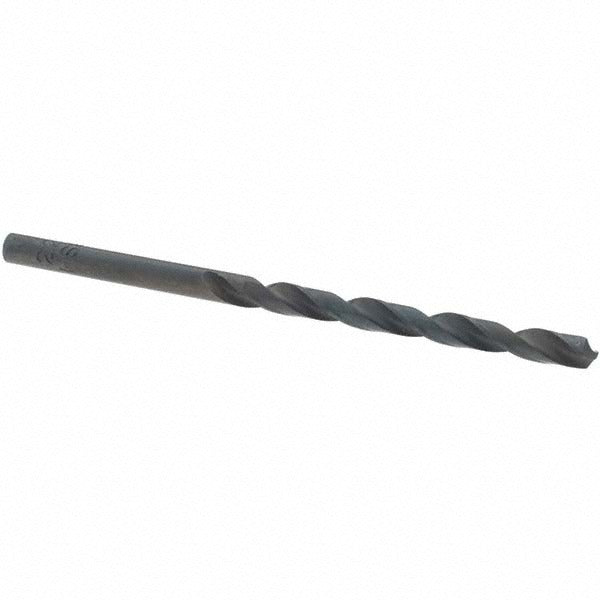

The IMPORT KP65063 is a jobber-length drill bit sized to wire gauge No. 22, with a decimal equivalent of 0.1570 inches. Manufactured from high speed steel (HSS) with an oxide coating, it is built for general-purpose drilling in metal, wood, and plastics. The bit features a 118-degree standard point angle, a regular spiral flute, and a straight-cylindrical shank. Overall length is 3-1/8 inches with a flute length of 2 inches. This bit is sold individually and suits production shops, maintenance technicians, and trade professionals who need reliable, consistent hole quality in light to medium drilling applications.

This drill bit is suited for hand-held electric drills, drill presses, and CNC drilling fixtures where a straight-cylindrical shank is compatible. It is appropriate for general fabrication, sheet metal work, and field maintenance tasks. The No. 22 wire size falls within the 0.1500 to 0.2000 inch decimal range, making it a common selection for tapping pilot holes and close-tolerance through-holes in light-gauge material. Right-hand cutting direction is standard for conventional drill operation.

Key Features

• Wire gauge No. 22 size with 0.1570 inch decimal diameter
• High speed steel construction with oxide finish for added surface hardness and corrosion resistance
• 118-degree standard point angle with web-thinned, tapered web for reduced thrust and easier starting
• Regular spiral flute with right-hand cut for conventional drilling
• Straight-cylindrical shank compatible with standard 3-jaw chucks
• 3-1/8 inch overall length with 2 inch flute length for jobber-length reach

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with standard 3-jaw drill chucks accepting a 0.1570 inch straight-cylindrical shank, suitable for hand drills, drill presses, and drilling fixtures.

Installation Notes

Installation should be performed by machinists, maintenance technicians, or qualified trade professionals familiar with drill press and hand-drill operation. Secure the shank fully in the chuck and verify concentricity before drilling. Always wear appropriate eye protection and secure workpieces firmly before operation. Follow applicable shop safety standards and equipment manufacturer guidelines when selecting feed rate and spindle speed for the material being drilled.
