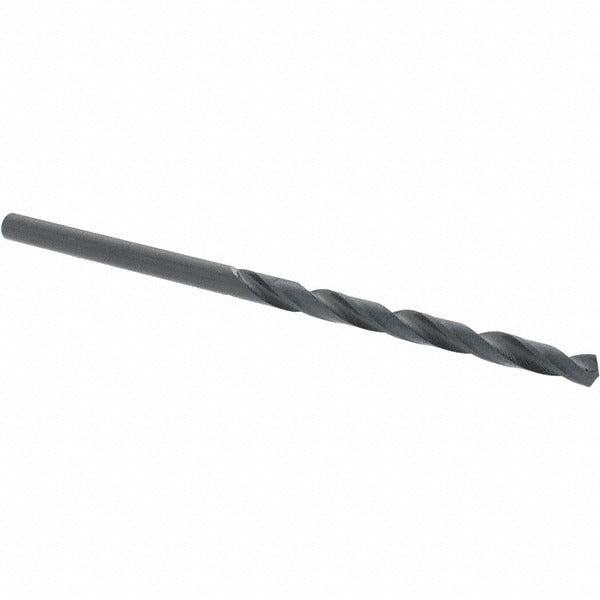

Import 27535 Jobber Length Drill Bit Wire Size 35 Hss

Product Description

The IMPORT 27535 is a jobber-length twist drill bit designed for general-purpose drilling in metal, wood, and plastic. Manufactured from high speed steel with an oxide coating, this bit handles everyday production and maintenance drilling applications without the cost premium of cobalt or carbide tooling. It measures 0.1100 inches in diameter, corresponding to wire gauge size 35, and has an overall length of 2-5/8 inches with a 1-1/2 inch flute length. The 118-degree split-point geometry and web-thinned tip reduce walking on entry and lower the thrust required to start a hole in ferrous and non-ferrous materials.

This bit is suited for light-duty and general-purpose drilling operations in fabrication shops, HVAC rough-in, plumbing bracket work, electrical panel work, and field service applications. The straight-cylindrical shank fits standard 3-jaw drill chucks on hand drills, drill presses, and CNC machines with appropriate tooling. Right-hand spiral flute geometry clears chips efficiently during through-hole drilling in thin-gauge sheet metal and structural stock. It is sold as a single bit and is available in minimum order quantities of 12 units.

Key Features

• Wire gauge size 35 diameter at 0.1100 inches for precision small-hole drilling
• High speed steel construction with oxide coating for corrosion resistance and reduced friction
• 118-degree standard point angle with web-thinned tip reduces walking and required thrust
• Regular spiral, right-hand cut for efficient chip evacuation
• Straight-cylindrical shank fits standard 3-jaw drill chucks
• Tapered web configuration adds rigidity to the core along the flute length

Compatibility

Designed as a general-purpose jobber-length drill bit compatible with any standard 3-jaw drill chuck capable of accepting a 0.1100-inch straight-cylindrical shank.

Installation Notes

A licensed machinist, HVAC technician, electrician, or plumber can install this bit into any appropriate drill chuck by hand-tightening with a chuck key before use. Secure the workpiece before drilling to prevent spinning. Use cutting fluid when drilling ferrous metals to extend bit life and improve hole finish. Inspect the cutting edges before each use and replace the bit if chipping or dulling is observed.
